MAJOR-TECH - Electrical Contractors Test Kit MTK15

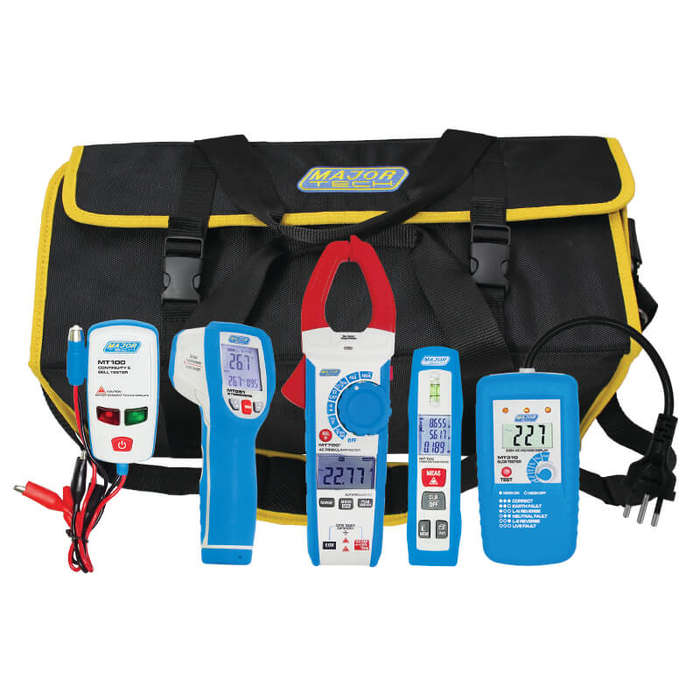

Electrical Contractors Test Kit

Kit Includes :

MT720 400A AC Clamp Meter
MT691 650C Dual Laser Infrared Thermometer
MT310 ELCB Tester
MT150 50m Laser Distance Meter
MT100 Continuity and Bell Tester
MTKBAG Heavy Duty Meter Case
The MTK15 is a contractors kit which includes a clamp meter, infrared thermometer, ELCB tester, laser distance meter and continuity & bell tester in a heavy duty meter case.

MT720 400A AC Clamp Meter
CAT III 600V and CAT II 1000V
4000 count backlit LCD display
AC and DC Voltage 1000V
AC Current 400A
Resistance 40M
Frequency 100kHz
Capacitance 99.99mF
Temperate -20 to 1000°C
Duty Cycle 80%
Ø30mm Cable Clamp size
INRUSH Current Measurements
VFD Variable Frequency Drive voltage value
NCV Non-Contact Voltage Detector
Built-In Flashlight
Continuity buzzer and Diode Test
Peak Mode and Data Hold function
Auto Power Off
MT691 Dual Laser Infrared Thermometer
Spot Ratio 12:1
Infrared Temperature -50C to 650C
Response time 150ms
Adjustable emissivity from 0.10 to 1.0
Dual laser sighting
Selectable C or F
Automatic Data Hold
MIN, MAX, AVG and DIF temperature displays
Set High and Low alarms
Automatic selection range and Display Resolution
Backlit LCD display
2 meter drop tested
IP54 rated for dust and water resistance
Auto Power Off
MT310 ELCB Tester
CAT IV 300V and CAT III 600V
Compact, lightweight and easy to use
AC Voltage Measurement 245V
Frequency Response 60Hz
Test Current 35mA
Correct Wiring Indication with neon lights
Operates on 230V systems
AC Voltage measurement on LCD display
Fixed current settings from 10mA to 35mA
Separate test button
Double injection rubber housing
MT150 50m Laser Distance Meter
Bluetooth 4.0 with App support
Measurement Range 0.05 to 50mm
Distance measuring and estimate tool
Area, Volume calculations
Measures up to 50m with 1.5mm accuracy
Indirect measurement using Pythagoras
Addition / Subtraction
Continuous measurement
Min / Max distance tracking
Display illumination and multi-line display
Store 20 measurements
Best for indoor applications
IP54 spash and dust resistant
MT100 Continuity and Bell Tester
Remotely identify and label two wires using flashing remote probes
Distance 3000m (26 Gauge min)
Lightweight and pocket size
MTKBAG Heavy Duty Meter Case
Carrying case to house a range of meters the user needs to carry at any one time
Specially designed by Major Tech to be compact with a shoulder strap
Adjustable compartments for bigger instruments or tools
Pocket for instruction manuals or documentation
Size 220mm (H) x 450mm (W) x 200mm (D)
