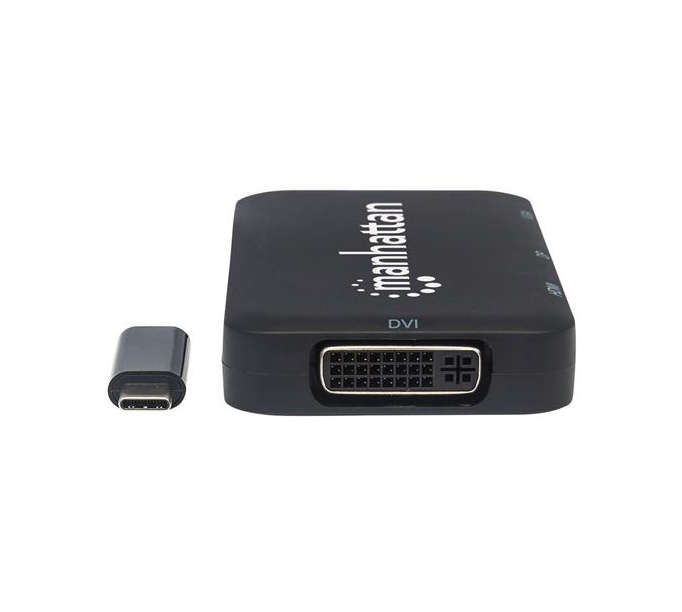

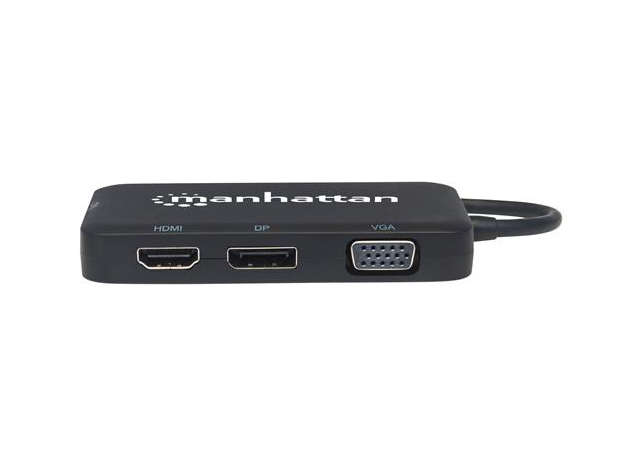

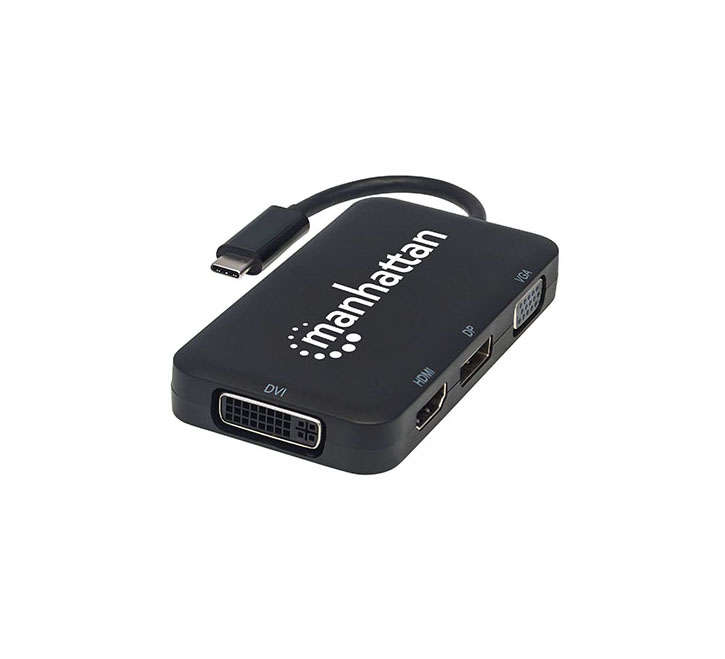

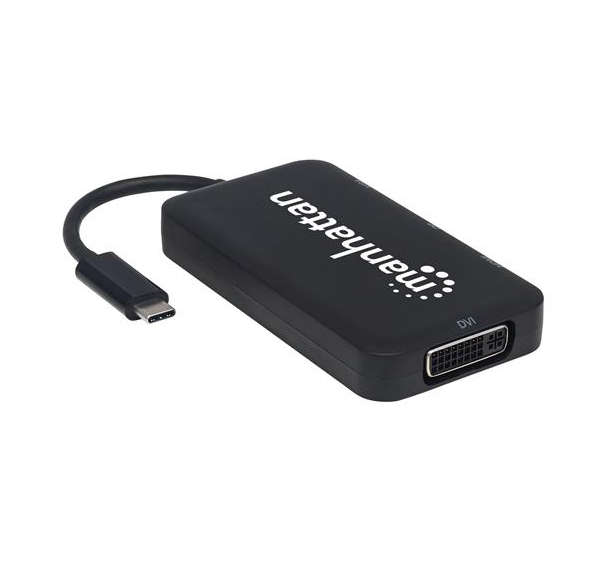

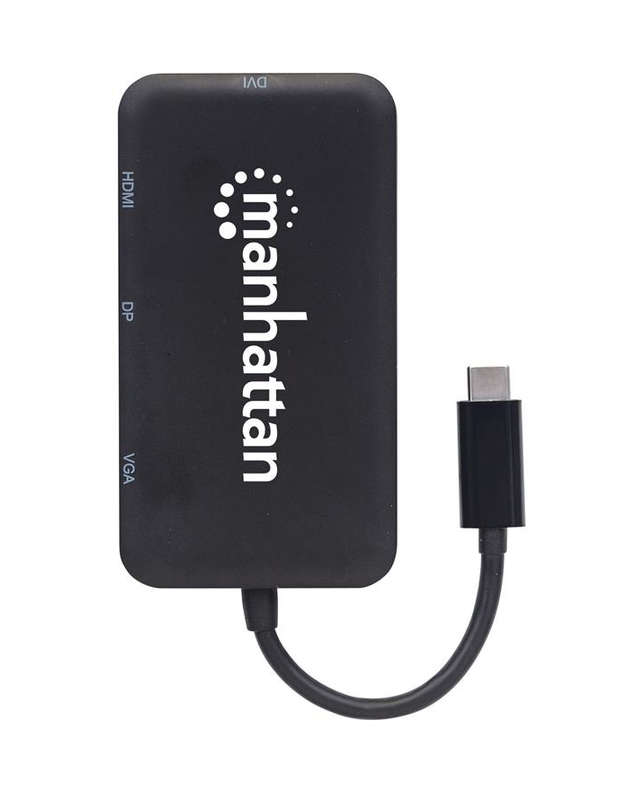

Manhattan USB-C 4-in-1 Audio/Video Converter - USB 3.1 Type-C Male to
HDMI/DP/VGA/DVI Female, Black, Retail Box, Limited Lifetime Warranty.
Features:
4-in-1 adapter converts USB to an HDMI, DP, VGA or DVI video and audio signal
Offers Ultra-High-Definition (UHD) images on an HDMI monitor, projector or other display device
Supports video resolutions up to: 3840x2160 at 30 Hz (4K) in HDMI, 4K@60Hz UHD in DP or 1920x1080 at 60 Hz in VGA or DVI
Compliant with DisplayPort 1.2 Alternate Mode (DP Altmode)
Plug and Play; requires no external power supply
Compatible with all USB Type-C, DP Alt mode and Power Deliver 2.0
supported desktops, notebooks and tablets including Apple MacBook,
Chromebook Pixel and more
Compact, portable design; perfect for traveling and connecting to any display
Fully shielded to reduce EMI and other interference sources
Molded PVC boot and strain relief
Specifications
Product Code: 152600
Description: Manhattan USB-C 4-in-1 Audio/Video Converter
Standards and Certifications
USB 3.1
HDMI
HDCP 1.4
CE
FCC
RoHS2
WEEE
General
Video Resolutions: 640 x 480, 800 x 600, 1024 x 768, 1920 x 1080, 1920 x 1200, 3840 x 2160 at 30 Hz, 4K@60Hz
32 AWG connectors
Shielding: Mylar and aluminum
Withstanding voltage: 300 V DC
Insulation resistance: 5 M
Conductive resistance: 10
Supports one output at a time
If multiple connections are made, port priority will be DP>HDMI>DVI>VGA
Note: DVI and VGA do not support Audio
Connections
USB Type-C 24-pin, male
HDMI 19-pin, female
DP 20-pin, female
DVI Single Link, 29-pin, female
VGA 15-pin, female
Shielded
Physical
32 AWG cable gauge
Mylar and aluminum shielding
Thermal plastic casing
Length: 8 cm (3 in.)
Weight: 31 g (1.1 oz.)
Shielded
Housing: ABS plastic
Operating Environment
Operation Temperature: 32 122°F (0 50°C)
Storage Temperature: -22 176°F (-30 80°C)
Humidity (noncondensing): 5 90%
System Requirements
Windows 8.1/10 or Linux or Mac 10.10.5 or above
Package Contents
USB-C 4-in-1 Audio/Video Converter
Quick Instruction Guide
