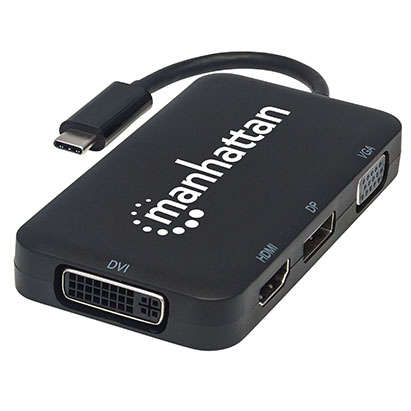

Manhattan USB-C 4-in-1 Audio/Video Converter - USB 3.1 Type-C Male to HDMI/DP/VGA/DVI Female, Black, Retail Box, Limited Lifetime Warranty.
Product Overview
The Manhattan USB-C 4-in-1 Audio/Video Converter establishes a fast, simple and convenient link between newer USB Type-C equipped media sources (computers, tablets, Smartphones, etc.) and existing HDMI, DisplayPort, VGA or DVI displays (monitors, projectors, etc.). The Manhattan USB-C 4-in-1 Audio/Video Converter is easy and quick to install no complicated configuration or setup required. Its all-in-one design achieves a compact, integrated solution that eliminates unnecessary cables, tangles and clutter to keep installations and workspaces neat and orderly. Extend the service life of your equipment, and fully realize the investment and value of your HDMI, DP, VGA or DVI displays, projectors and peripherals with a Manhattan USB-C 4-in-1 Audio/Video Converter.
Features:
4-in-1 adapter converts USB to an HDMI, DP, VGA or DVI video and audio signal
Offers Ultra-High-Definition (UHD) images on an HDMI monitor, projector or other display device
Supports video resolutions up to: 3840x2160 at 30 Hz (4K) in HDMI, 4K@60Hz UHD in DP or 1920x1080 at 60 Hz in VGA or DVI
Compliant with DisplayPort 1.2 Alternate Mode (DP Altmode)
Plug and Play; requires no external power supply
Compatible with all USB Type-C, DP Alt mode and Power Deliver 2.0 supported desktops, notebooks and tablets including Apple MacBook, Chromebook Pixel and more
Compact, portable design; perfect for traveling and connecting to any display
Fully shielded to reduce EMI and other interference sources
Molded PVC boot and strain relief
Specifications
Product Code: 152600
Description: Manhattan USB-C 4-in-1 Audio/Video Converter
Standards and Certifications
USB 3.1
HDMI
HDCP 1.4
CE
FCC
RoHS2
WEEE
General
Video Resolutions: 640 x 480, 800 x 600, 1024 x 768, 1920 x 1080, 1920 x 1200, 3840 x 2160 at 30 Hz, 4K@60Hz
32 AWG connectors
Shielding: Mylar and aluminum
Withstanding voltage: 300 V DC
Insulation resistance: 5 M
Conductive resistance: 10
Supports one output at a time
If multiple connections are made, port priority will be DP>HDMI>DVI>VGA
Note: DVI and VGA do not support Audio
Connections
USB Type-C 24-pin, male
HDMI 19-pin, female
DP 20-pin, female
DVI Single Link, 29-pin, female
VGA 15-pin, female
Shielded
Physical
32 AWG cable gauge
Mylar and aluminum shielding
Thermal plastic casing
Length: 8 cm (3 in.)
Weight: 31 g (1.1 oz.)
Shielded
Housing: ABS plastic
Operating Environment
Operation Temperature: 32 122F (0 50C)
Storage Temperature: -22 176F (-30 80C)
Humidity (noncondensing): 5 90%
System Requirements
Windows 8.1/10 or Linux or Mac 10.10.5 or above
Package Contents
USB-C 4-in-1 Audio/Video Converter
Quick Instruction Guide
