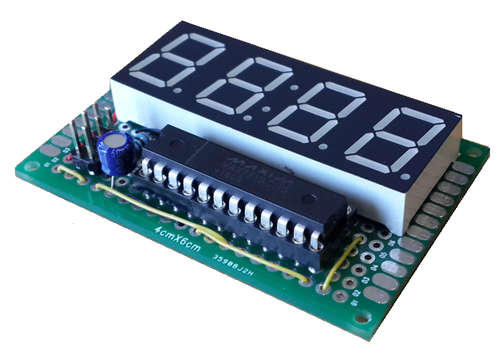

MAX7219 CONTROLLED 4 DIGIT 7 SEGMENT DISPLAY KIT
Product information
If you are looking for a bright red, 4 digit display kit for use in a volt meter, current meter, temperature gauge, humidity meter or even a simple digital clock then this kit is exactly what you need. It contains all the components needed to build a fully functioning SPI interfaced 4 digit display requiring just four microcontroller pins to operate. The kit is also ideal for honing your soldering skills and with the easy to follow step by step instructions the board can be assembled in less than 2 hours. The assembled board is interfaced to a PIC, AVR, ARM or 8051 microcontroller through SPI. A quick search for MAX7219 interfaced to ArduinoÂÂÂÂ in Google will reveal several Arduino sketches and tutorials.
Package Includes
1 x 0.56" 4 digit 7 segment clock display
1 x 10k 0.25W resistor
1 x 470R 0.25W resistor
1 x 100nF Ceramic capacitor
1 x 10uf Electrolytic capacitor
1 x MAX7219CNG
1 x SIL 6 pin right angled header
1 x 24 pin DIL IC socket
1 x 4cm x 6cm breadboard
1 x Set of 4 x 2m AWG30 Kynar high temperature wire (4 colours)
NOTE! On completion of a purchase of this kit, a link will be sent to you via email to download the step by step assembly instructions and Arduino sketch and library code.
