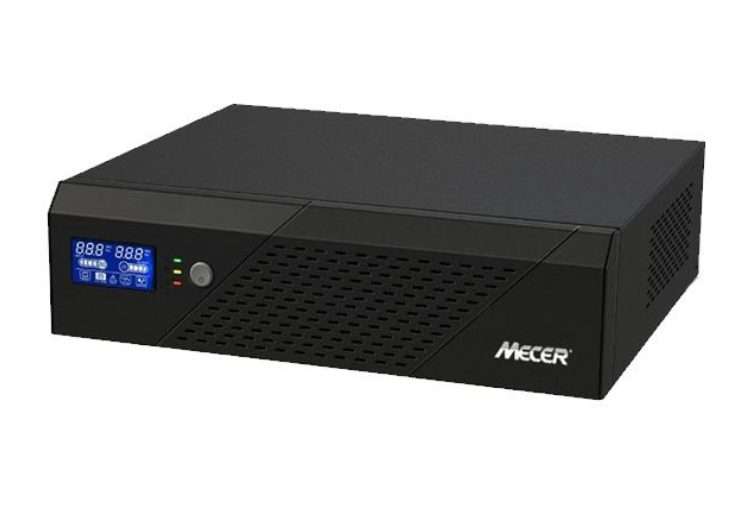

Mecer 2400VA, 1400W, 24V DC-AC Inverter (Modified Sine Wave)
LCD Display
Please note that this unit will not turn on if not connected to at least two 12V batteries connected in series for 24V.
The fan will turn off once the batteries are fully charged!
Cables to connect the unit to a battery are included.
A 220V power cable is included to recharge the battery while the power is on.
May be used as an inverter (to power 220V devices such as TVs from a battery) or a UPS (runs the device from the standard 220V power while the battery charges)
*EXTERNAL BATTERIES REQUIRED*
MODEL: Mecer IVR-2400LBK
CAPACITY: 2.4KVA/ 1440W
Power Factor: 0.6
Intput voltage range: 90-280VAC
LINE MODE
Output voltage: Bypass mode: 0utput voltage same as input voltage AVR mode:Output voltage = Input voltage*1.2 @ Input voltage
Output Frequency: Same as input
BATTERY MODE
Output voltage: 230Vac 10%
Transfer Time: 20ms typical
Waveform: Modified Sine-wave
OVERLOAD CAPABILITY
Bypass Mode (in VA and Watts): Load >110%15% , alarm 5 mins then fault Load >130% 15%, fault immediately.
AVR Mode (in VA and Watts)@ Input voltage > 170VAC: Load >100%15%, go to bypass mode
AVR Mode(in VA and Watts)@ Input voltage < 170VAC: Load >60%15%, go to bypass mode
Battery Mode (in W): 1) Load>110% 15%, overload alarm for 15s, and then will switch to fault mode for 10s, Then unit will re-start 5 times. 2) Load>120% 15% , fault & cut off O/P immediately.
SHORT CIRCUIT PROTECTION
Line Mode: Breaker
Battery Mode: Current limit +Firmware Protection
BATTERY
Battery Voltage: 24VDC
Acceptable Battery Type: Rechargeable lead-acid battery, Deep discharge battery
Polarity Reserve Protection: Yes
Charger available I/P range: 90~280V
CHARGER
Constant Current Charger Voltage:28.6VDC 2%
Floating Charge Voltage: 27.4VDC 2%
Maximum Charge Current: 10A or 20A
DC Start Voltage: >22VDC
PHYSICAL
Dimension, D X W X H (mm): 350 x 90 x 300
Net Weight (kgs): 5.5"
What's in the box
1 x Mecer 2400VA (1440W) Inverter Battery Charger
