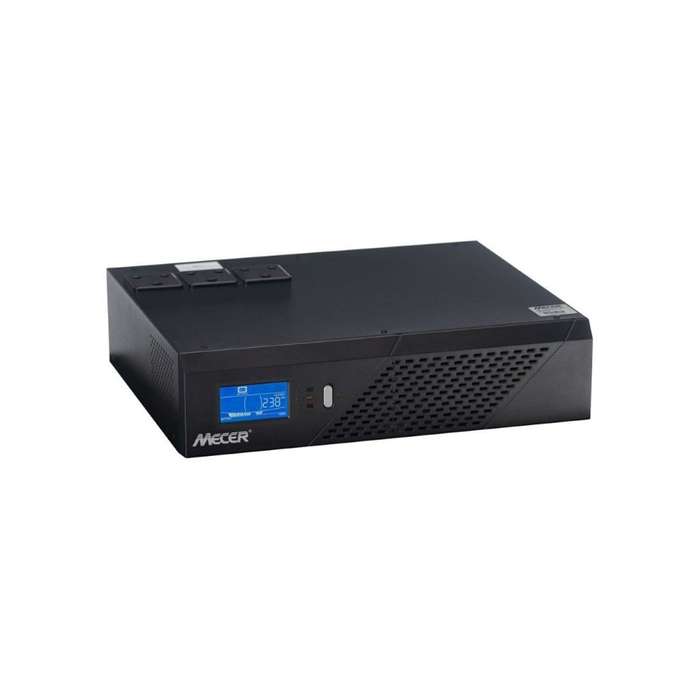

Mercer 2400VA 1440W 24V Inverter

Not Compatible with Lithium Batteries

Mecer has been one of South Africa's top-selling PCs over the past two decades. Mustek's ongoing interaction within the international IT industry has ensured that Mecer has remained a techno-leader at the forefront of technology.

Features:
- Simulated sine wave inverter
- Built-in AVR for voltage regulation
- Wide input voltage range: 90-280 VAC
- 24VDC
- Overload and short circuit protection
- LCD display for comprehensive information

Specifications:
MODEL: Mecer IVR-1200LBK
CAPACITY: 2400 VA / 1440 W
POWER FACTOR: 0.6
Input Voltage range 90-280VAC
Line Mode:
Output Voltage
Bypass mode: 0utput voltage same as input voltage
AVR mode: Output voltage = Input voltage 1.2 at Input voltage Output Frequency Same as input
Battery Mode:
Output Voltage 230Vac +/-10%
Transfer Time 20ms typical
Waveform Modified Sine-wave
Overload Capability:
Bypass Mode (in VA and Watts) Load >110%+/-15% , alarm 5 mins then fault
- Load >130% +/-15%, fault immediately.
- AVR Mode (in VA and Watts)at Input voltage > 170VAC Load >100%+/-15%, go to bypass mode
- AVR Mode (in VA and Watts)at Input voltage < 170VAC Load >60%+/-15%, go to bypass mode
- Battery Mode (in W) Load>110% +/-15%, overload alarm for 15s, and then will switch to fault mode for 10s. Then unit will re-start for 5 times Load>120% +/-15% , fault & cut off O/P immediately.
Short Circuit Protection:
- Line Mode Breaker
- Battery Mode Current limit +Firmware Protection
Battery: (Excludes Batteries)
- Battery Voltage 24 VDC
- Acceptable Battery Type Rechargeable lead-acid battery, Deep discharge battery
- Polarity Reserve Protection Yes
- Charger available I/P range 90~280V
- BATTERY'S NOT INCLUDED
Charger:
- Constant Current Charger Voltage 28.6VDC +/-2%
- Floating Charge Voltage 27.4VDC +/-2%
- Maximum Charge Current 10A or 20A
- DC Start Voltage >22VDC
Physical:
- Dimension, D X W X H (mm) 350 x 90 x 300
- Net Weight (kgs) 5.5
Environment:
- Operating Humidity 0 to 90% Relative Humidity(Non-condensing)
- Operating Temperature 0 degrees C to 40 degrees C
- Storage Temperature -15 degrees C to 50 degrees C
