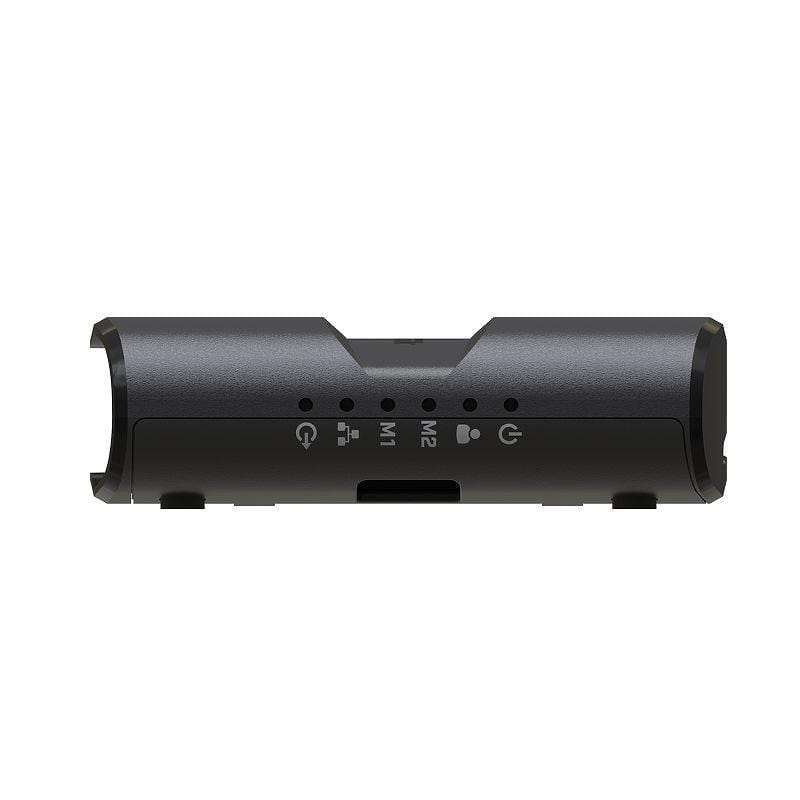

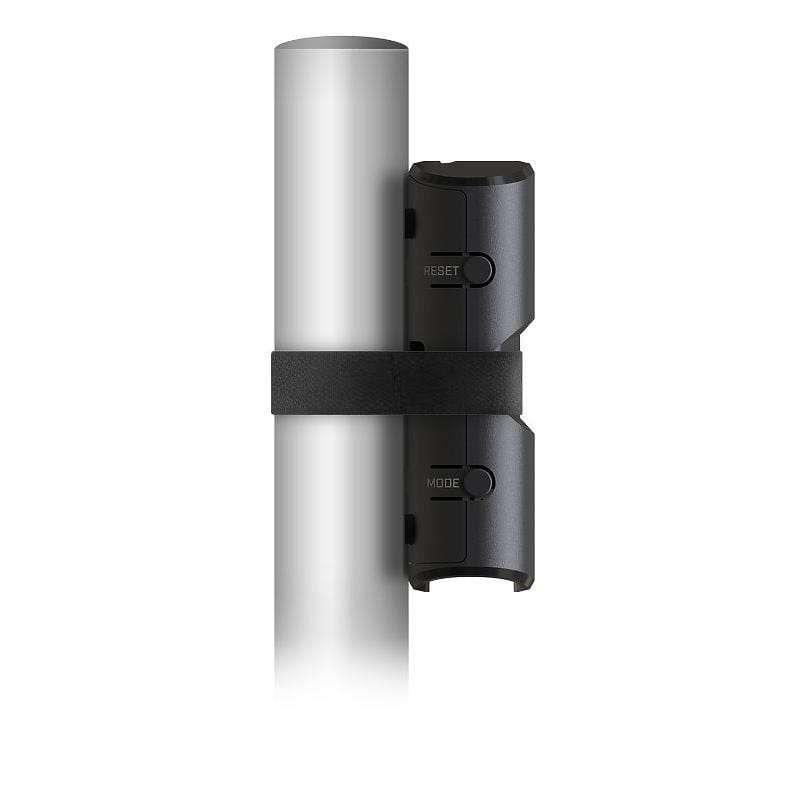

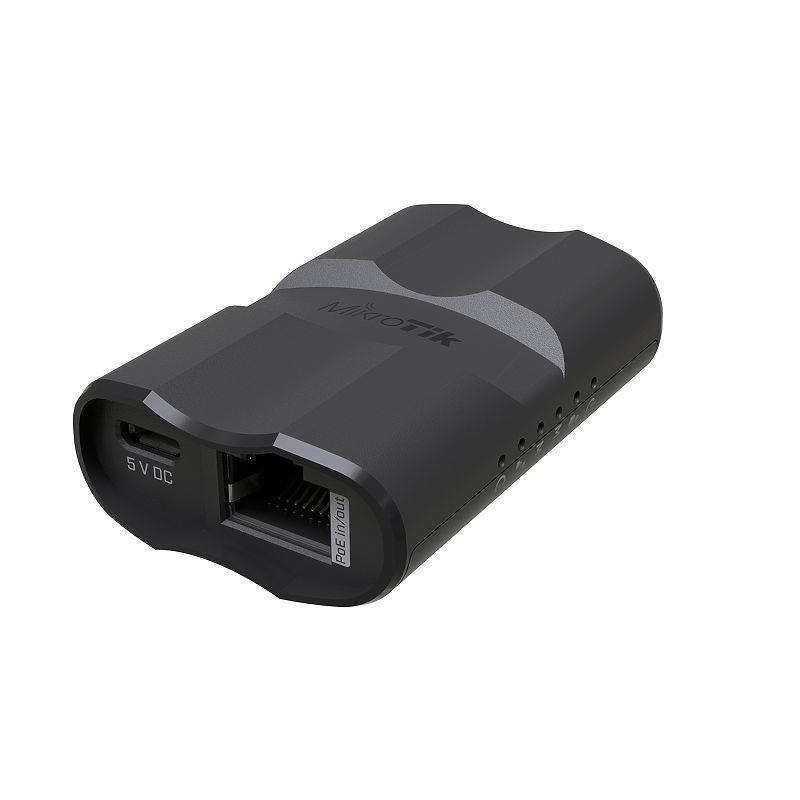

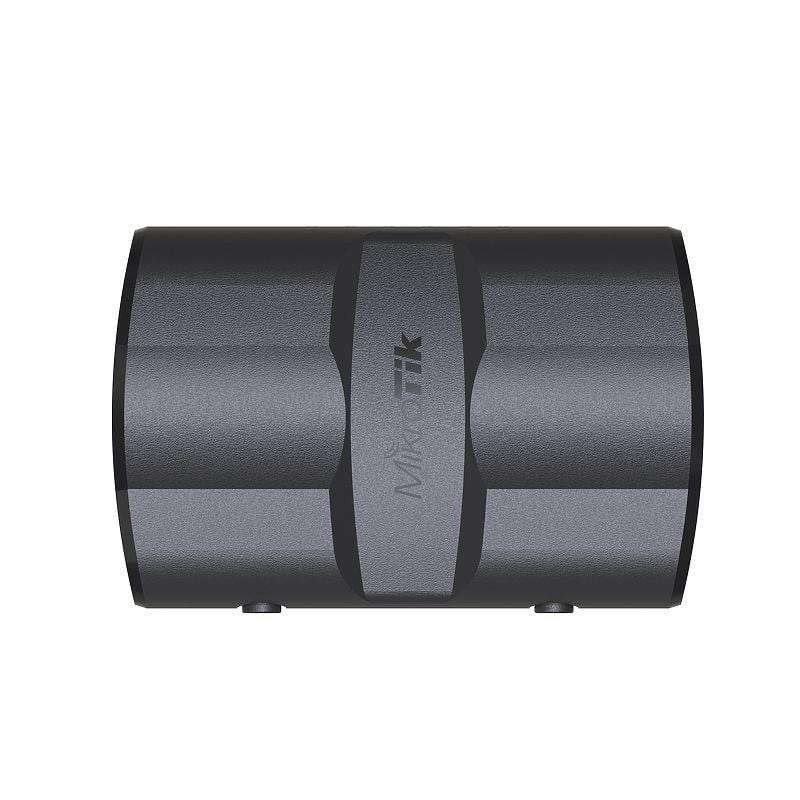

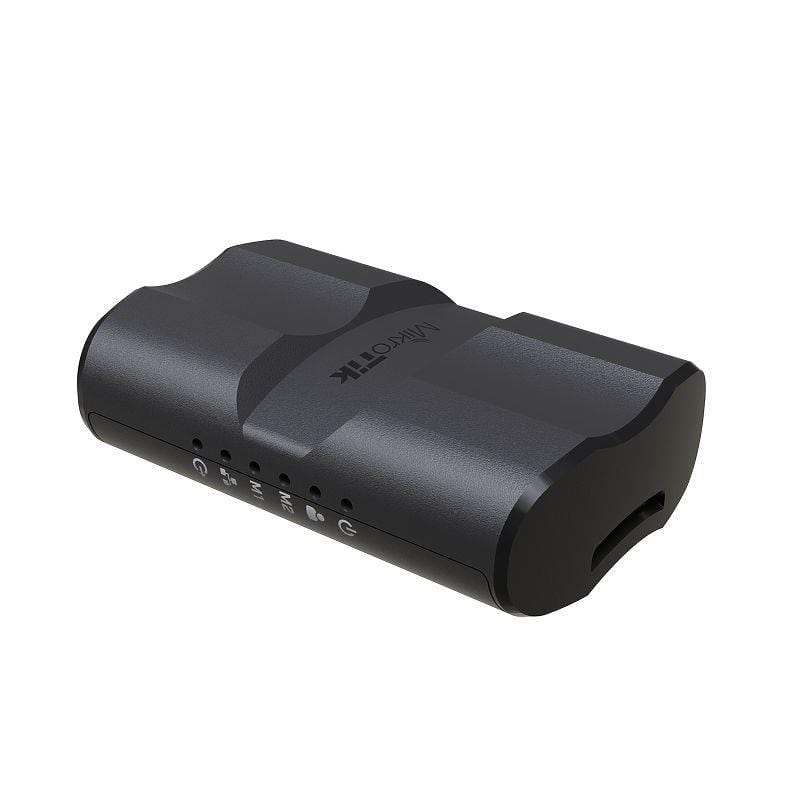

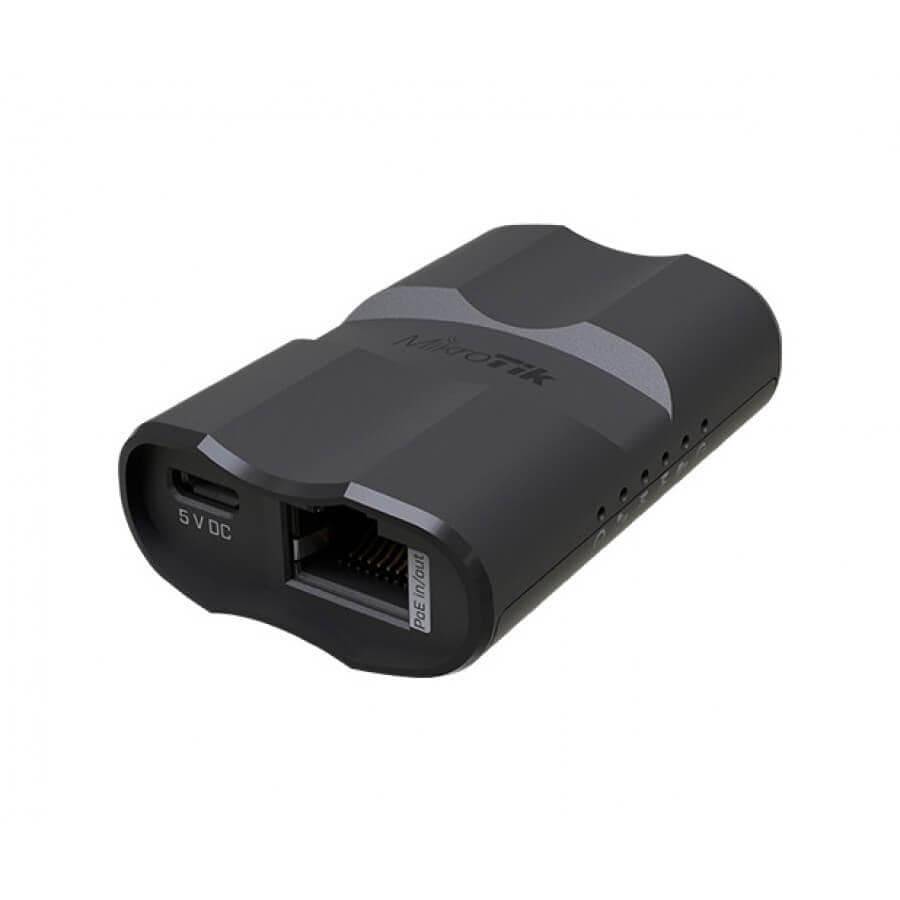

MikroTik Mobile Quick Setup tool network management device Ethernet LAN Wi-Fi Power over (PoE) RBMQS

Mikrotik Mobile Quick Setup. Networking standards: IEEE 802.11b,IEEE 802.11g,IEEE 802.11n, Ethernet LAN data rates: 10,100 Mbit/s, Cabling technology: 10/100. Connectivity technology: Wired & Wireless. Antenna type: Internal, Antenna gain level (max): 1.5 dBi. Product colour: Black. Dimensions (WxDxH): 40 x 64 x 21 mm

If you work with many PoE powered devices and manage their configuration and diagnostics, this small device fits in your pocket will make your life so much easier! The MQS is a tool that lets you manage MikroTik and other devices (including Ethernet-only!) from your smartphone over a Wi-Fi connection! MQS can be powered from a power bank or a USB charger. It has PoE out to power your devices — you don't even need electricity on-site to perform maintenance, diagnostics or Netinstall! No more climbing and balancing towers with unwieldy laptops — just carry an MQS in your pocket for safe and simple work anywhere! Unplug the PoE cable from your CPE device, attach the MQS and it will allow you to connect wirelessly and apply basic settings, working as a WiFi to Etherner bridge with PoE output.

Product code:    RBMQS

Frequency:         2.4 GHz 802.11b/g/n

Wi-Fi generation:             Wi-Fi 4

Number of DC inputs:     2 (MicroUSB, PoE-IN)

MicroUSB input Voltage:               5-5 V

Input voltage:    Passive PoE, 5 - 30 V

Max power consumption:            7 W

Max power consumption without attachments: 1 W

Output Voltage:                 Passive PoE, 12 V 400 mA (when USB 5 V input is used)
