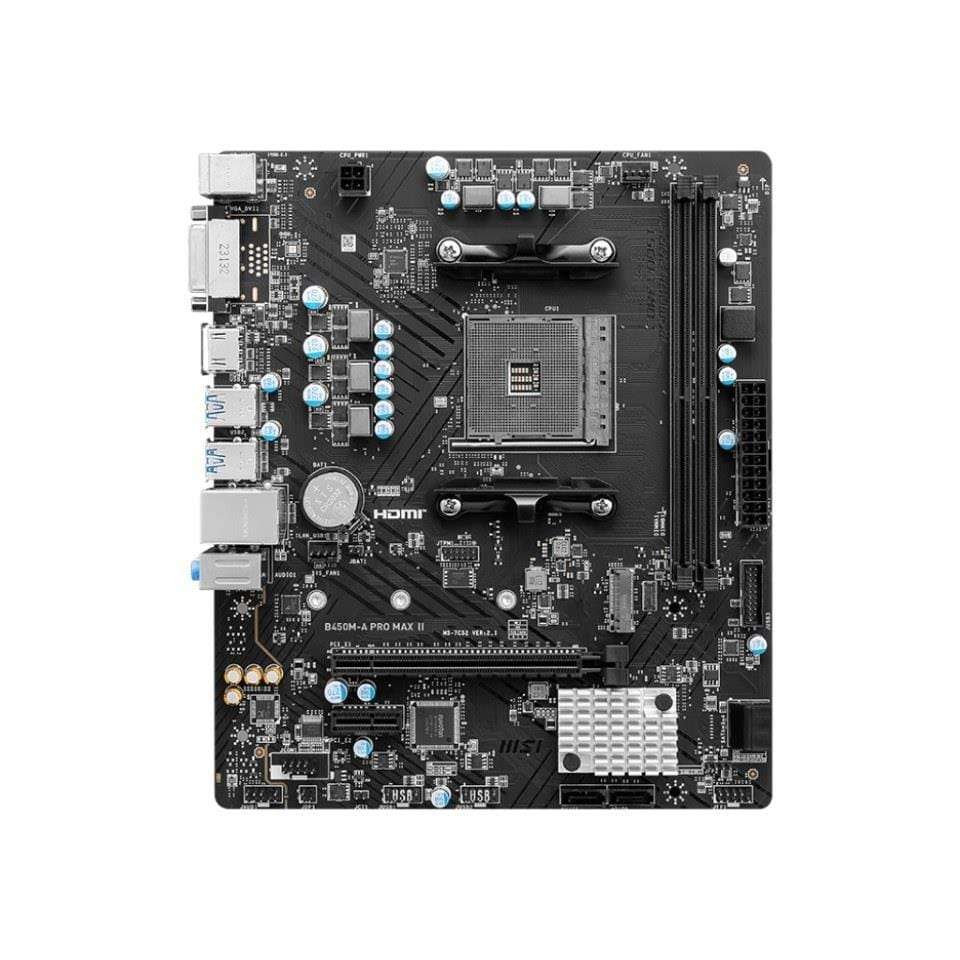

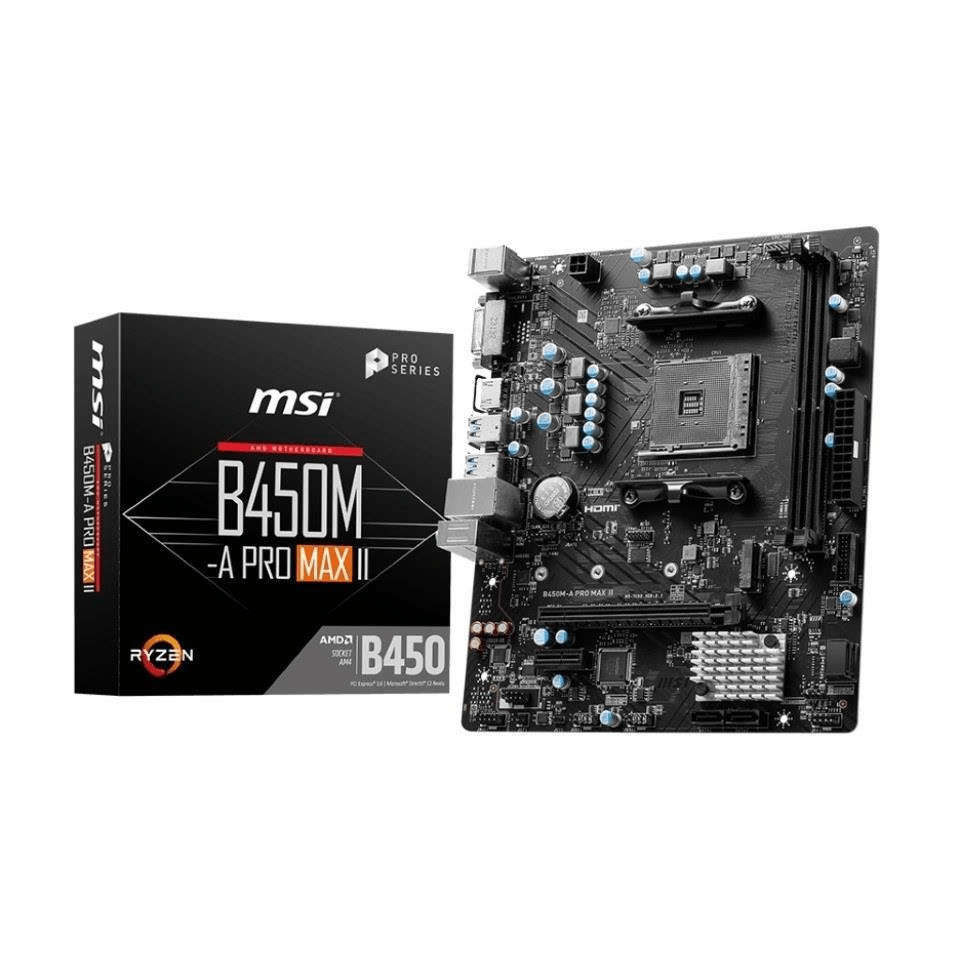

MSI B450M-A PRO MAX II AMD Socket AM4 Micro-ATX Motherboard
MSI motherboards feature tons of convenient and smart design, such as convenient pin-header keep out zone, friendly SATA & USB location and so on, so DIY users can pick and choose any gaming rig they want.
Cooling
Cooling your PC is essential for reliable performance. MSI motherboards feature excellent power design with solid and heavy heatsink. We've made sure to include enough fan headers with full control to allow you to cool your system any way you want.
BIOS and Software
With years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. Use these tools to get the most out of your motherboard.
ENHANCED PERFORMANCE
MSI motherboards featured all the latest solution for enthusiast gamers and prosumers. CPU and memory enhancement and fast storage and USB transfer speed are ready to be on the battlefield.
CPU
Power on your RYZEN processor with optimized circuit layouts and high quality power delivery parts for an incredibly stable operation.
Storage
MSI motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your
Features:
- Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, 2000 G-Series and 1000 Series desktop processors and Athlon™ with Radeon™ Vega Graphics desktop processors
- Supports DDR4 Memory, up to 4133 (OC) MHz
- Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
- Audio Boost: Reward your ears with studio grade sound quality.
- 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.
- Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
Specifications:
- Socket: AM4
- Chipset: AMD® B450
- Memory Channel: Dual
- DIMM Slots: 2
- MAX Memory: 64 GB
- PCI-E X16: 1
- PCI-E X1: 2
- SATAIII: 4
- M.2 Slot: 1
- LAN: Realtek® 8125 2.5Gbps LAN controller
- TPM (Header): 1
- USB 3.2 Ports (Front): 2x Gen1 Type-A
- USB 3.2 Ports (Rear): 4x Gen1 Type-A
- USB 2.0 Ports (Front): 4
- USB 2.0 Ports (Rear): 2
- Audio: Realtek® ALC897 Codec
- DVI-D: 1
- HDMI: 1
- Operating System: Support for Windows® 11 64-bit, Windows® 10 64-bit
- Form Factor: m-ATX
