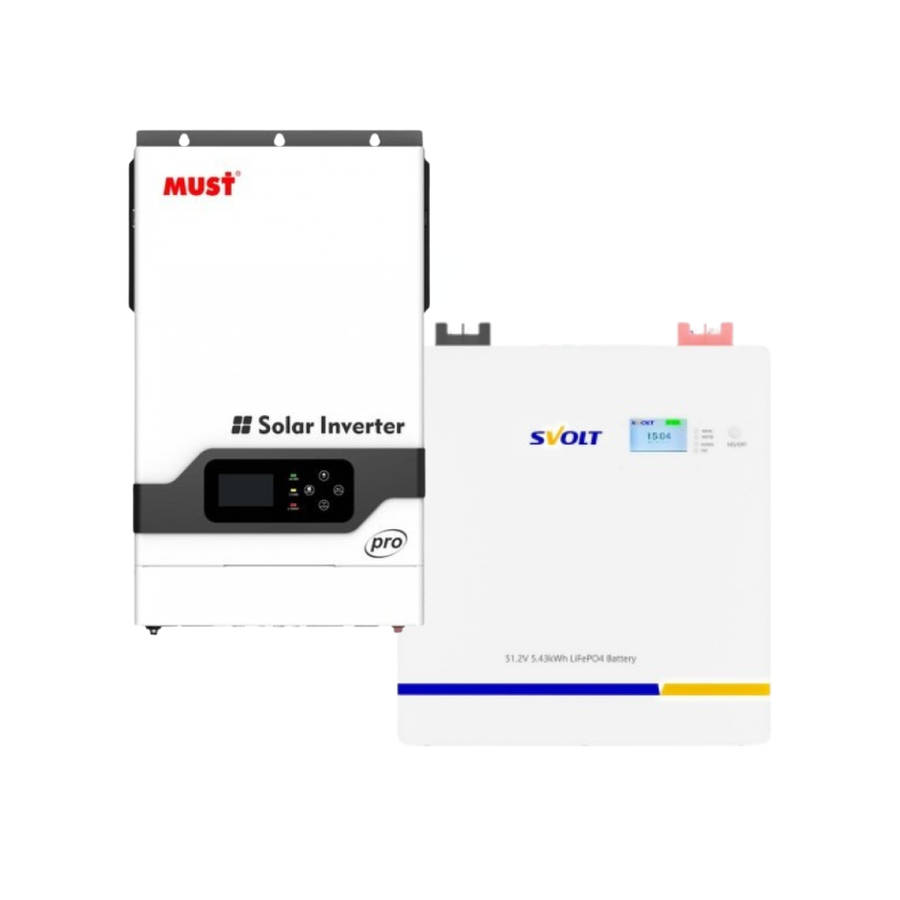

MUST 5.2KVA / 5000W Hybrid MPPT Inverter Pure Sine Wave + SVOLT 5.43kWh Lithium Battery Combo
Description:
The Hybrid 48V 5.2KVA / 5000W Solar Inverter & SVOLT 5.43kWh Lithium Battery combo delivers a powerful, efficient, and reliable energy storage solution for residential and commercial applications. This system is designed to optimize solar energy use, reduce grid dependence, and ensure uninterrupted power supply.
Hybrid Inverter Features & Benefits:
- Pure Sine Wave Output for stable and reliable power delivery
- User-Controlled Power Prioritization Choose whether to prioritize solar, grid, or both for battery charging
- High PV Input Voltage MPPT range: 150V430V, max 450V open circuit voltage
- Battery-Free Operation Inverter can power loads directly from solar panels
- Built-in MPPT Solar Charge Controller for maximum efficiency
- Seamless Integration Compatible with solar, AC utility, and battery storage
- Enhanced Safety Protections Overload, short circuit, and deep discharge protection
- Cold Start Function Enables startup without grid power
- Smart Monitoring USB, RS485, and optional Wi-Fi monitoring for real-time tracking
Technical Specifications Inverter:
- Rated Power: 5200VA / 5000W
- Input Voltage: 230V AC
- Frequency: 50Hz / 60Hz (Auto Sensing)
- Surge Power: 10400W
- Efficiency: 93% Peak
- Waveform: Pure Sine Wave
- Battery Voltage: 48V DC
- Charging Current: Max 80A
- PV Open Circuit Voltage: Max 450V
- Maximum PV Charging Current: 80A
SVOLT 48V 106Ah 5.43 kWh A-Grade Wall Mount Lithium Battery (Square)
The SVOLT 51.2V 106Ah A-Grade Lithium Battery is manufactured by a world-leading manufacturer SVOLT which is joined with the Haval Motor Group which we all know are extremely recognized for their vehicles, using A-Grade Battery cells. This allows superior performance, capacity, and reliability. Using state of high power A-Grade cell technology, the Lithium Battery is designed for environmentally sensitive areas and is committed to recycling.
The SVOLT 51.2V 106Ah A-Grade Lithium Battery is widely used in industrial, residential, commercial, and private applications. The maintenance-free construction and advanced design features make the Lithium Battery the definitive choice for a wide variety of markets - Like solar and renewable energy storage for electric vehicles, industrial equipment, medical equipment, telecommunications, TVs, and UPS systems.
SVOLT 48V 106Ah 5.43kWh Lithium Battery Features & Benefits:
- High-Capacity Energy Storage 5.43kWh power with 106Ah at 51.2V
- A-Grade Lithium Iron Phosphate (LiFePO4) Technology for superior efficiency and durability
- Long Cycle Life Over 6,000 charge cycles at 90% Depth of Discharge (DoD)
- Built-in Battery Management System (BMS) Protects against overcharging, deep discharge, and short circuits
- High Efficiency >97% round-trip efficiency for optimized energy use
- Scalable System Up to 16 batteries in parallel for increased capacity
- Fast & Easy Installation Wall-mounted design with quick plug-and-play connections
- Advanced Safety Features IP-rated SPCC casing and multiple protection mechanisms
Technical Specifications Battery:
- Nominal Voltage: 51.2V
- Nominal Capacity: 106Ah
- Operating Voltage Range: 43.2V 57.6V
- Charging Voltage: 56.0V ± 0.2V (Recommended), 58.4V ± 0.2V (Max)
- Charging Current: Recommended 50A, Max 100A
- Discharging Current: Max Continuous 100A, Peak 150A (100ms)
- Cycle Life: >6,000 cycles at 90% DoD
- Operating Temperature: -20°C to 70°C (Discharge), -5°C to 65°C (Charge)
- Communication Protocol: Ethernet & RS485
- Size & Weight: 510mm x 475mm x 160mm, 45.6kg
- LCD Display & Optional Bluetooth Monitoring
Combo Package Includes:
-1x SVOLT 48V 106Ah 5.43kWh Lithium Battery (5-Year Warranty)
-1x Hybrid Inverter 48V 5.2KVA / 5000W Solar Inverter (2-Year Warranty)
-Battery Cables (Red & Black)
-Ethernet Cable
-Wall Mount Bracket
-User Manual & Warranty Card
Installation & Warranty Terms:
- Must be installed by a qualified electrician or Master Wireman registered with the Department of Labour
- Installation must comply with SANS 10142 standards
- A valid Certificate of Compliance (COC) is required for warranty claims
- Warranty claims require installation photos, valid COC, and proof of installation by a certified professional
