Over-discharge Low Voltage Disconnect and Battery Charger Protection Board

Over-discharge Low Voltage Disconnect  Board Battery Charger Protection 30A 12V  (10005417)

12V 30A Display

Description: XDC02 is a battery under voltage control module. The load is automatically disconnected when the battery is under voltage, and is automatically connected when the battery is over voltage.

Feature: Parameter memory function Automatic recovery function Real-time display voltage 12V battery only Load power-off delay protection

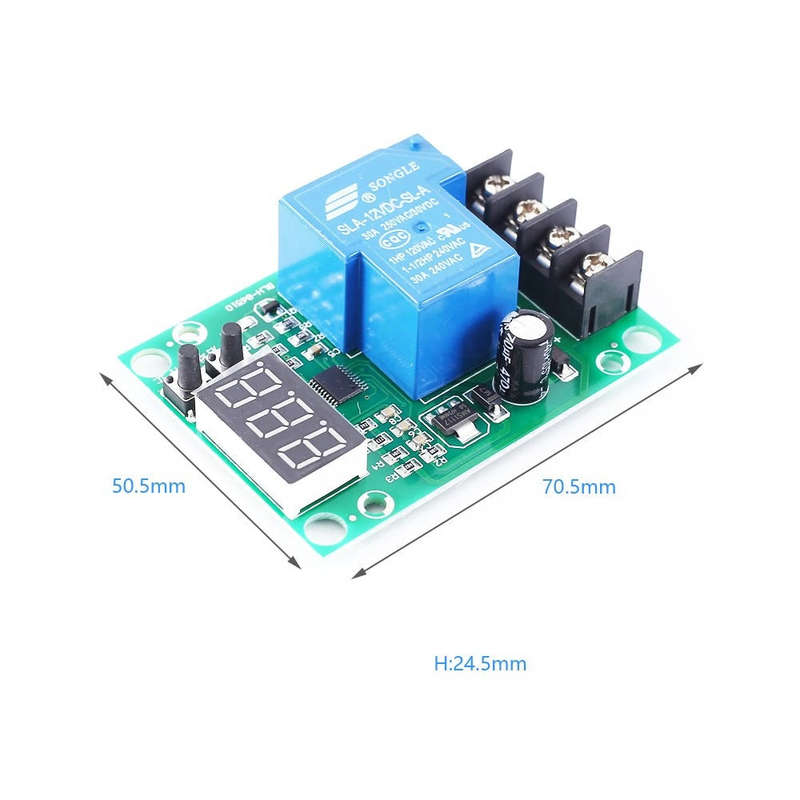

Parameters: Model: XDC02 Input Voltage: 12V (only use 12V battery) Voltage Accuracy: 0.1V Input Current: 30A(MAX) Scope of Application: Storage Batteries or Lithium Batteries Work Temperature: -25~85 Work Humidity: 5%~95%RH Size: 70.5*50.5*24.5mm

Note: The product has a 6-second time delay to avoid disconnecting the load when the battery voltage drops when the large battery starts. The product can only be connected to a 12V battery. Don't connect other types of batteries.

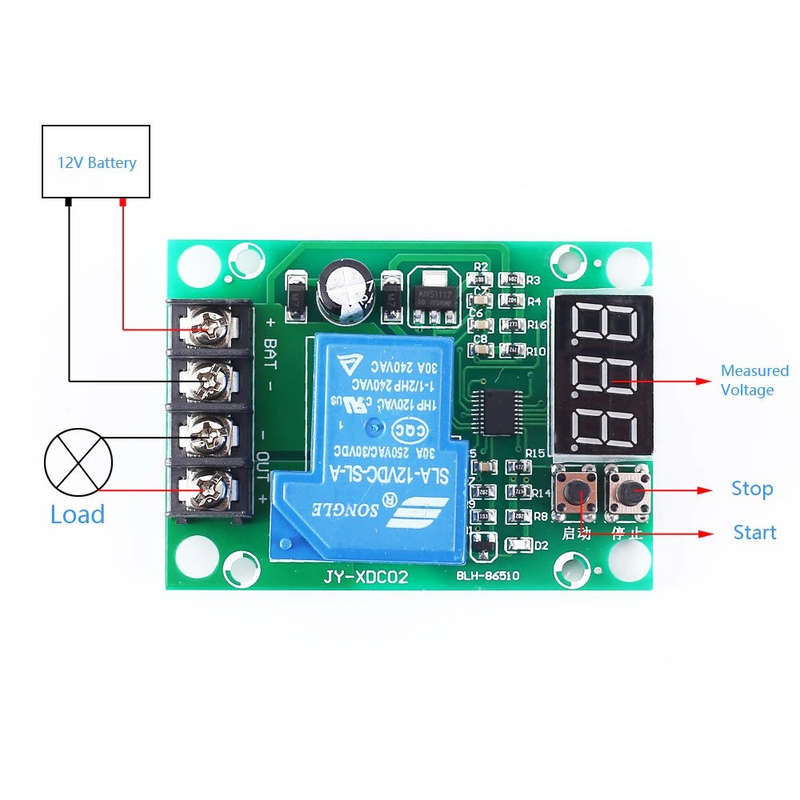

Button Setting: Stop Button: Set Under voltage Button Short press Stop Button to display the current set Under voltage Parameter Value. Long press Stop Button the display flashes. Press Stop Button and Start Button to setting the Under voltage Value. Start Button: Set Overpressure Button Short press Start Button to display the current set Overpressure Parameter Value. Long press Start Button the display flashes. Press Stop Button and Start Button to setting the Overpressure Value. For Example: The module is connected to a 12V battery, the set under voltage is 10.5V,and the set overvoltage is 12V.It means that when the battery voltage is lower than 10.5V,the load is turned OFF, and when the battery is higher than 12V, the load is turned ON.

Package Contents: 1pcs Battery Under voltage Control Module
