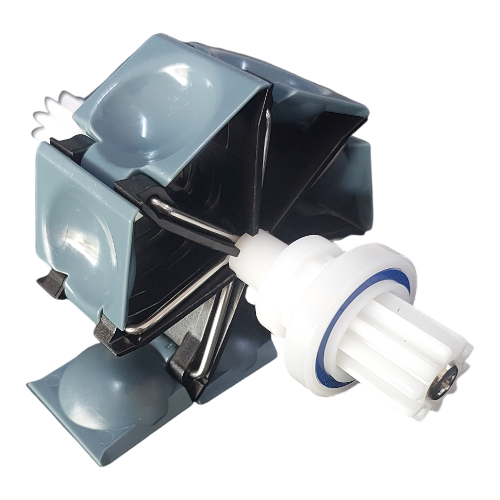

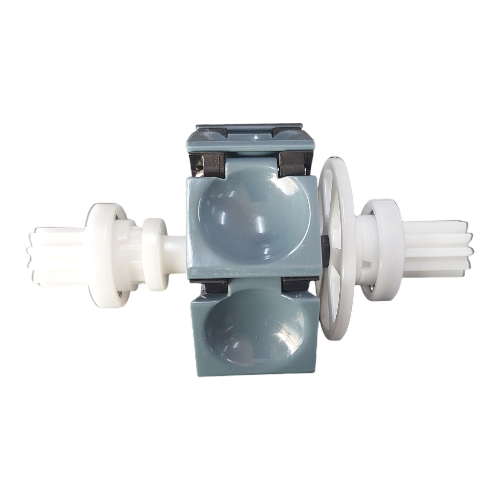

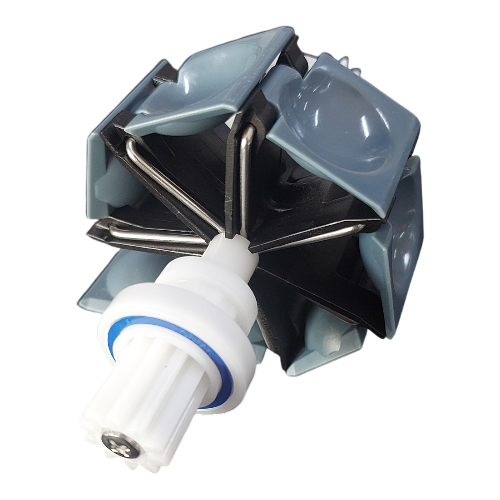

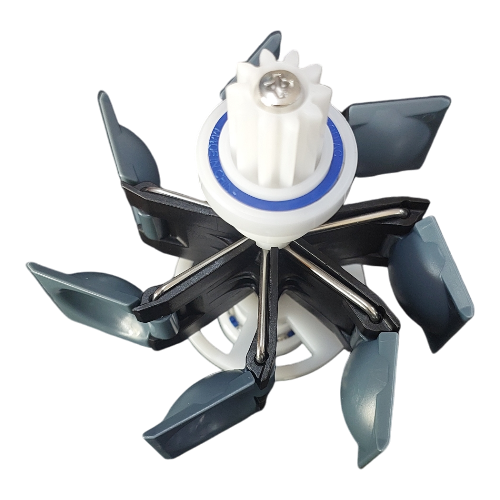

POOL CLEANER ZODIAC AX20 ENGINE ASSEMBLY

Product Overview:

The Zodiac AX20 Pool Cleaner is renowned for its powerful and efficient cleaning capabilities, thanks in large part to its advanced engine assembly. This essential component is at the heart of the cleaner's operation, enabling it to navigate and clean your pool with precision and effectiveness.

Key Features of the Engine Assembly:

1. Drive Motor: Powers the cleaner, ensuring smooth and consistent movement across the pool surface.
2. Gearbox Assembly: Transfers power to the wheels and brushes, enabling effective movement and cleaning action.
3. Wheels and Brushes: Make direct contact with the pool surface, scrubbing and cleaning effectively as the cleaner moves.

Maintenance Guidelines:

• Regular Cleaning: Ensure that the filter canister and debris chamber are cleaned regularly to maintain optimal suction and performance.
• Inspect Wheels and Brushes: Regularly check these parts for wear or damage and replace them as necessary to maintain cleaning efficiency.
• Gearbox Assembly Check: Periodically inspect the gearbox for signs of wear or damage and ensure it is functioning correctly.

Troubleshooting Tips:

1. Loss of Suction: Check for blockages in the filter canister, hoses, or debris chamber. Clean or replace parts as needed.
2. Movement Issues: If the cleaner is not moving correctly, examine the wheels, brushes, and gearbox for obstructions or damage.
3. Unusual Noises: This might indicate a problem with the drive motor or gearbox. Inspect these components for any signs of trouble.
4. Intermittent Operation: Ensure all electrical connections and cables are secure and undamaged. Check for a stable power supply.
5. Difficulty Climbing Walls: Verify that water flow and pump motor are at optimal levels as recommended.
6. Erratic Behavior: Consider resetting the cleaner as per the instructions in the user manual.

Professional Assistance:

For complex issues, it's advisable to consult the Zodiac customer support team or seek help from a qualified technician. They can provide expert advice and assistance tailored to the specifics of your Zodiac AX20 model.

Conclusion:

The Zodiac AX20 Engine Assembly is a pinnacle of pool cleaning technology, offering unmatched cleaning efficiency and reliability. With regular maintenance and proper care, it ensures your pool remains spotless and inviting. Always refer to the user manual for specific instructions, and don't hesitate to reach out for professional support when needed.

Please Note: This information provides general guidelines and may vary based on the specific model or version of the Zodiac AX20 pool cleaner. Always refer to your specific model's manual for accurate and detailed instructions.
