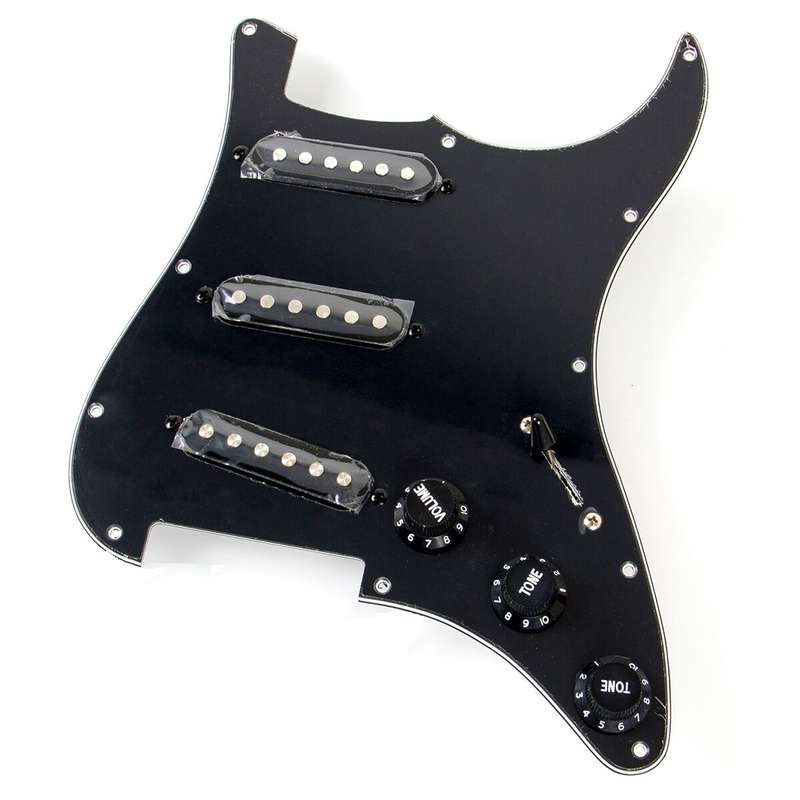

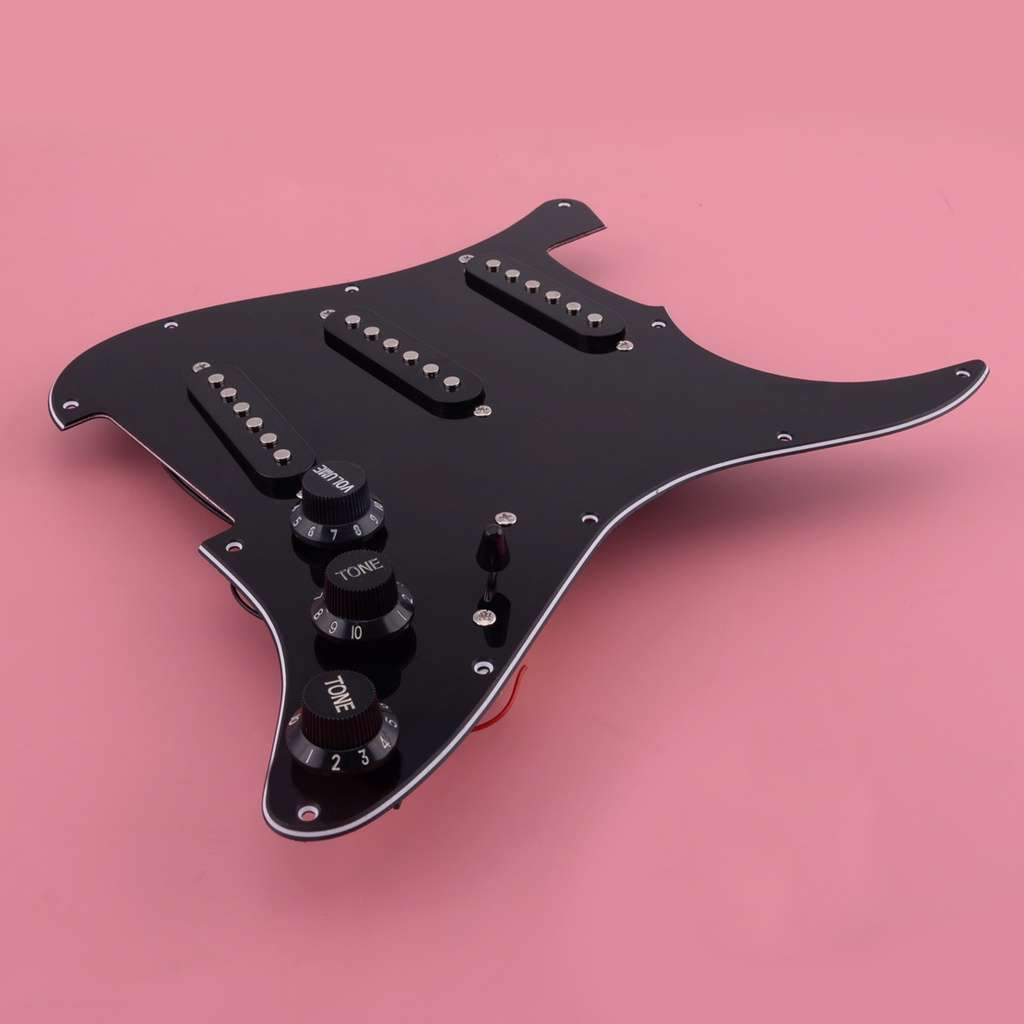

Prewired Pickguard Loaded with Alnico 5 Single Coil Pickups - Black

A high quality pickguard with a Karman Vintage Style 5 way switch, Full Sized Brass Shaft Potentiometers. Complete with pickups and electronics installed and connected, all you need to do is disconnect your old pickguard from output jack and connect this pickguard (solderless or solder-in options available) and screw the pickguard to the body of the guitar (screws can be ordered separately)

Please note - You would need to add an extra 24 - 48 hours to the lead time when ordering our prewired pickguards as we make them specially for each order.

Pickups: Karman KS35 Alnico Pickups - a classic voiced pickup with a more modern output than your typical classic pickups, bridge pickup is overwound slightly to make it hotter. Comes with staggered pole pieces.

• Neck 6.5k

• Middle 6.5k

• Bridge: 7.2k

Wiring: ABS plastic wiring, for vintage cloth wiring please email us your custom request

Potentiometers: Full sized brass shaft potentiometers are used, they are great quality with smooth turning, we use a Linear (B250k) for Volume and Audio Taper (A250k) for Tone with 0.047uF High quality Capacitor, neck and middle pickups are connected to the first tone and bridge is connected to the other tone. (other custom wiring options available - email us with your request)

Pickguard colour: 3 ply Black

Knobs, Pickup covers and Switch tip colours: Black (other colours are available for custom orders - email us with your custom request)

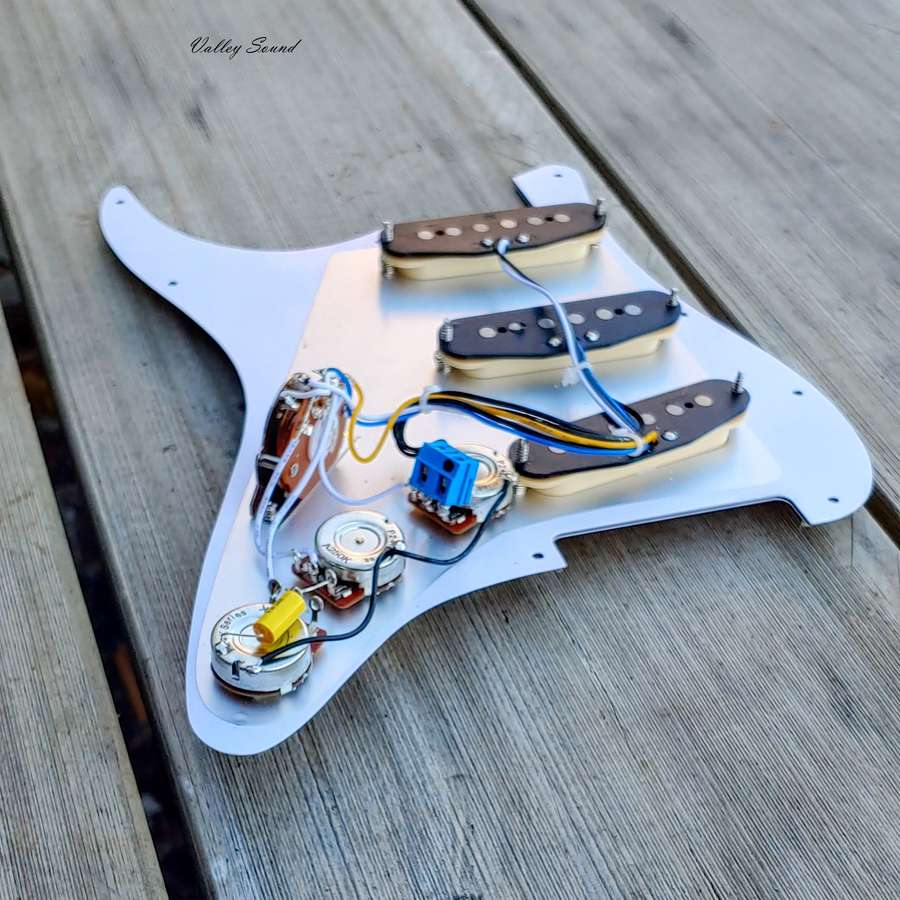

Solderless or Solder-in: This prewired pickguard comes standard as a solderless pickguard, you only need to connect wires from your output jack to the blue screw terminal with a screwdriver. We also offer Solder-in, all wires you need to solder to your output jack and ground wire for tremolo claw are connected, you must just solder them to the parts.

Instructions for installation will be included or you can search Valley Sound Prewired Pickguard Installation on Youtube

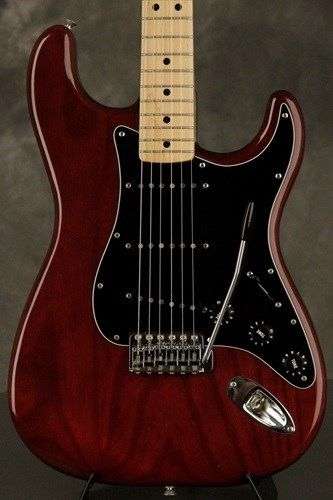

PLEASE NOTE: This pickguard is the exact layout and spec as USA/MEX Strat, it will fit Squier too, though sometimes the screw holes won't line up 100 percent and you must make new ones. It may fit other guitars with some retrofitting, but we can not guarantee this since there are too many variations of the Strat. Also take note that the switch is larger than the cheaper import switch which may require some extra routing to your body where the switch goes depending on your routing depth (35mm is required) some guitars like Bullet and Affinity Squier have very shallow routing.  By purchasing this prewired pickguard we will assume you have removed your current pickguard and checked your routing cavity and we will also assume you are willing to make some modifications if your guitar does not have the same mounting layout as standard USA/MEX Fender.
