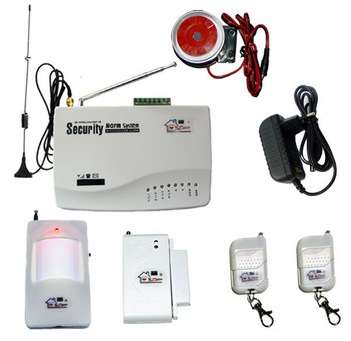

Remote control Wireless Smart Home Security System House Alarm GSM Alarm System

Technical Parameter:

-4 wired and 6 wireless defence zones;

-Can preset and store 6 voice phones and 3 message phones;

-Remote two-way intercomï¼ÂŒBuilt-in intercom speaker;

-Telephone (mobile phone) remote control programming;

-SMS remote control preset & arm/disarm the main panel;

-SMS alarm content can be changed;

-3 groups of timely arm and disarm;

-2 groups reply to timely control the home appliances open or close;

-Can connect wireless siren(Option)

-10-second automatic message recording;

-Built-in intelligent English message;

-Alarm locking memory and information clear for easy checking;

-One-key-control function: Out Arm, Home Arm, Remote Arm;

-Wireless intelligent learning encoding and comply additional accessories;

-Arm, disarm, monitor and intercom by remote calling the alarm unit;

-Real-time, delay, 24 hours, bypass defense zones programming function;

-Built in NI-HI rechargeable battery is available to provide power supply nearly 5hours automatically after power off;

-AC and DC dual use are available for 24-hours-a-day normal guard;

-Main unit anti-tamper and low-voltage detecting function.

PACKAGE INCLUDE:

1x Keypad/Control Unit

1x Door/Window Sensor

1x Motion Detector

2x Remote Control

1x Wired Siren

1x Telephone Cable

1x English Manual

Keypad / Control Unit

Working frequency: 433mhz

Input Voltage: DC9V~12V

Standby Current: <55mA

Alarm Current: <450mA

GSM Frequency: 850/1800/1900MHz

Backup Battery: NI-HI AAA*6 DC7.4V

Alarm Loudness: 110dB

Wireless remote control.

* 3 Arm Mode: Arm Away Mode, Arm at Home Mode & Emergency Mode (panic button).

* Arm the system after closed the door when go out. Disarm the system before open the door when come back.

*Specification :

*Power : 12V battery x 1 pcs (battery included)

*Static Current: I1 = 0

*Transmission Current: I2 ≤ 15mA

*Transmission Time: ≧1s

*Transmission Distance : 80m (No Obstacle)

*Operational temperature: ï¼Âš-10℃ to 40℃ (approx 14°F ~ 104°F)

*Humidity: ≤ 90%

Motion Detector

* Suitable for bedroom, living, kitchen, lobby, corridor...etc.

* Power Supply : 9V battery x 1 pcs (battery included)

* Static current : I1≤30mA

* Alarm current : I2≤20μA

* Transmission Time : ≧1s

* Detected Distance : 5-8m

* Transmit Distance : approx 100m (no obstacle)

* Detect angle : Horizontal: 110?, Vertical: 60?

* Working Condition : Temperature : -10°C ~ 40°C (approx 14°F ~ 104°F)

* Humidity : ≤ 90 %

Door/Window Sensor

* Suitable for Door, Window, drawer, cabinet...etc

* Power Supply : 12V battery x 1 pcs (battery included)

* Static current : I1≤15mAμA

* Alarm current : I2≤15mA

* Transmission Time : ≧1s

* Transmit distance : approx 100m(no obstacle)

* Internal distance : 15mm

* Temperature: -10℃ to 40℃ (approx 14°F ~ 104°F)

* Humidity: less than 90%

Wired Siren

* Easy to install (just plug in) to the Control Panel/Main Unit.

* loud with 110 dB while the alarm system is triggered.

* Specification :

* Sound : 110 dB/m

* Working current : 150ï½Âž 200mA

* Operational temperature: ï¼Âš- 25ï½Âž+55°

* Humidity: ≤90%
