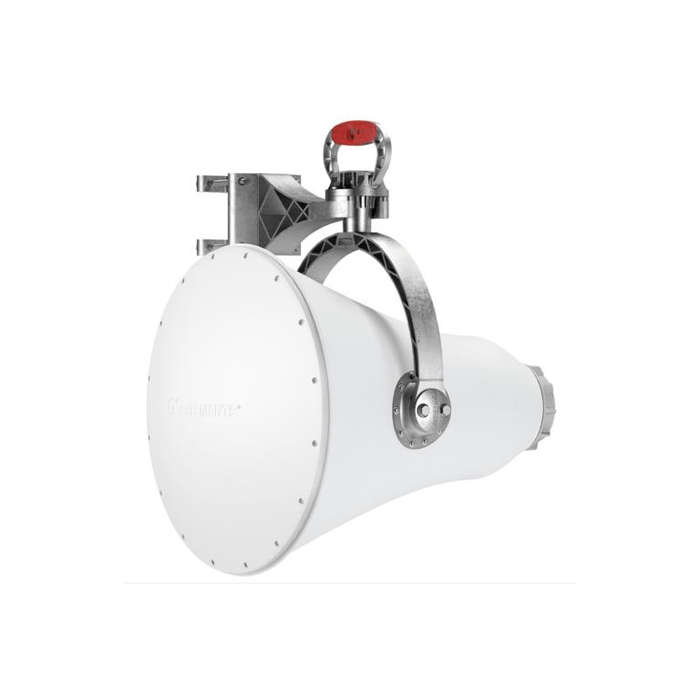

RF Elements UltraHorn Antenna
ULTIMATE NOISE-REJECTING DIRECTIONAL HORN ANTENNA WITH TWISTPORT CONNECTOR
The UltraHorn™ TP Antennas are high-gain, highly directional scalar horn antennas. They offer ultra noise rejection, lossless connection of radio and symmetrical beam with no side lobes. Absence of side lobes allows UltraHorn™ TP antennas to reject noise and create long links in environments with a high level of noise with unprecedented performance. No need to spend more money for radomes or shrouds. No extra costs for additional shielding. Just buy an appropriate TwistPort™ Adaptor to connect your radio and deploy. That's it!
All UltraHorn™ TP Antennas are equipped with a unique TwistPort™, our patent-pending wave guide connector. TwistPort™ connectors are virtually lossless and a revolutionary leap forward in wireless system scalability and convenience of deployment. UltraHorn™ TP Antennas support a wide range of third party radios from mainstream vendors with our TwistPort™ Adaptors.
SPECIFICATIONS:
Antenna Connection: TwistPort™ - Quick Locking Waveguide Port
Antenna Type: Horn
Materials: UV Resistant ABS Plastic, Polycarbonate, Polypropylene, Aluminium, Stainless Steel
Enviromental: IP55
Pole Mounting Diameter: 30-80 mm (1.2-3.1 inch) Recommended as close to 80 mm (3.1 inch) as possible
Temperature: -30°C to +55°C (-22°F to +131°F)
Wind Survival: 160 km/h (100 mi/h)
Wind Load: 150/104 N - Front/Side at 160 km/h (100 mi/h)
Effective Projected Area: 1231/849 cm2 - Front/Side (190.8/131.6 in2 )
Mechanical Adjustment: ± 25° Elevation, ± 25° Azimuth
Weight: 8.2 kg (18 lbs) — single unit*
Single Unit: Retail Box: 55.0 x 55.0 x 66.6 cm (21.7 x 21.7 x 26.2 inch)*
PERFORMANCE
Frequency Range: 5180 - 6400 MHz
Gain: 24 dBi
Azimuth Beam Width -3 dB: H 11° / V 11°
Elevation Beam Width -3 dB: H 11° / V 11°
Azimuth Beam Width -6 dB: H 16° / V 15°
Elevation Beam Width -6 dB: H 16° / V 15°
Beam Efficiency**: 99 %
Polarization: Double Linear H+V
Front-to-Back Ratio: 40 dB
