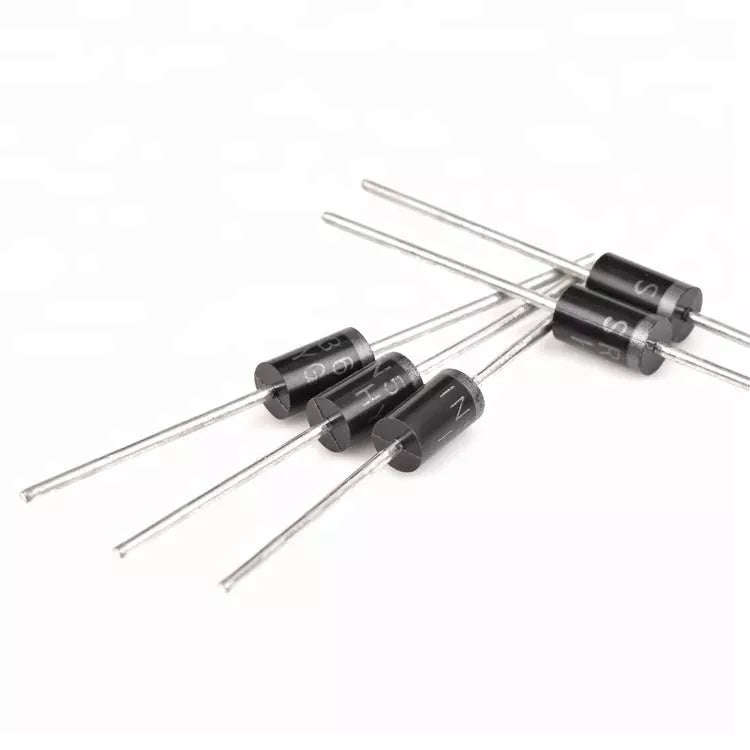

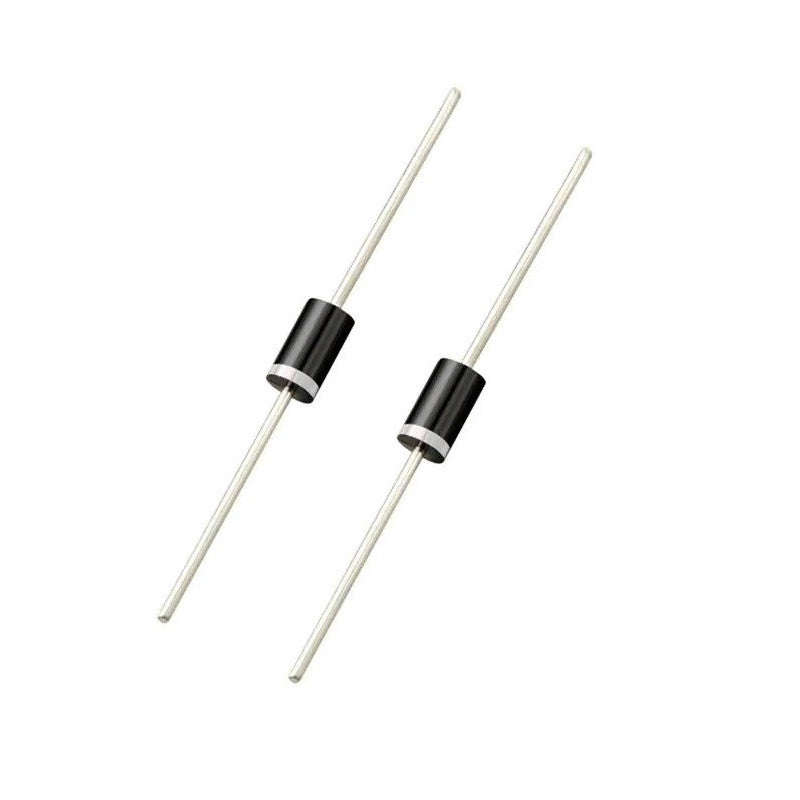

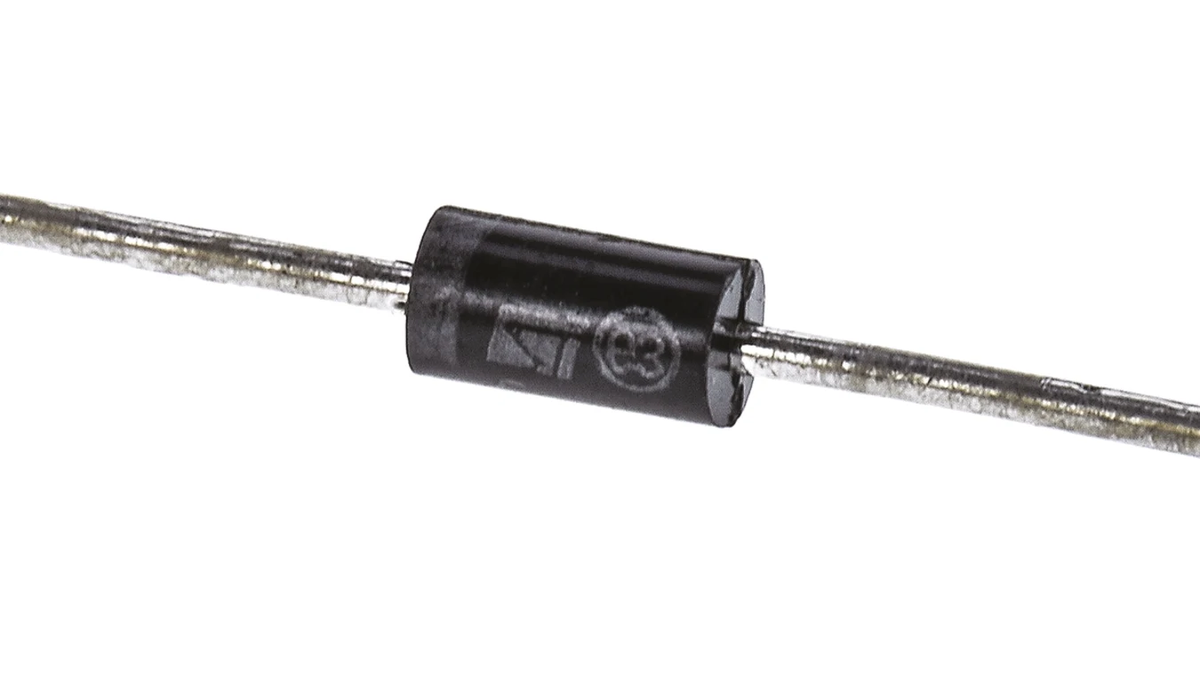

The 1N5817, 1N5818, and 1N5819 are a family of low-drop 3A Schottky rectifier diodes. They are designed for switch-mode power supplies and high-frequency DC-to-DC converters.

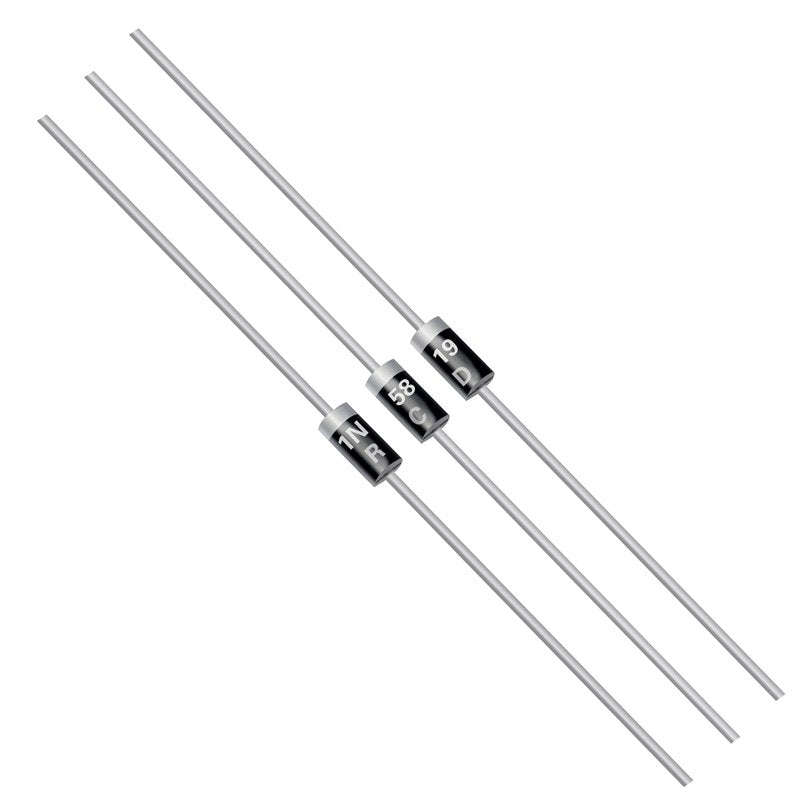

The 1N5819 is a Schottky diode with a low forward voltage drop and high switching speed. It is commonly used in high-frequency applications like Inverters, DC-DC converters, etc.
1N5819 Diode 40V Features:
Fast switching
Low forward voltage drop
Small conduction loss
Very low switching loss
Where is 1N5819 Diode 40V used?
1N5817-1N5819 are designed for low voltage, high-frequency inverters, freewheeling, polarity protection, and small battery chargers.
Technical Specification - 1N5819
Mounting Type | Through Hole |
Package Type | DO-41 |
Maximum Continuous Forward Current | 1A |
Peak Reverse Repetitive Voltage | 40V |
Diode Configuration | Single |
Rectifier Type | Schottky Rectifier |
Diode Type | Schottky |
Pin Count | 2 |
Maximum Forward Voltage Drop | 900mV |
Number of Elements per Chip | 1 |
Diode Technology | Schottky Barrier |
Diameter | 2.72mm |
Peak Non-Repetitive Forward Surge Current | 25A |
Technical Specification - 1N5822
Mounting Type | Through Hole |
Package Type | DO-27 |
Maximum Continuous Forward Current | 3A |
Peak Reverse Repetitive Voltage | 40V |
Diode Configuration | Single |
Rectifier Type | Schottky Rectifier |
Diode Type | Schottky |
Pin Count | 2 |
Maximum Forward Voltage Drop | 600mV |
Number of Elements per Chip | 1 |
Diode Technology | Schottky Barrier |
Diameter | 5.6mm |
Peak Non-Repetitive Forward Surge Current | 80A |
