This Kit is ready to run and includes 1 x 7.4V, 18650-1500mAh Li-ion battery (T plug), discharge rate 15C
2023 Model 1/16 scale Ready to run - Very fast - 4 Wheel drive - Seperate control for LED lights

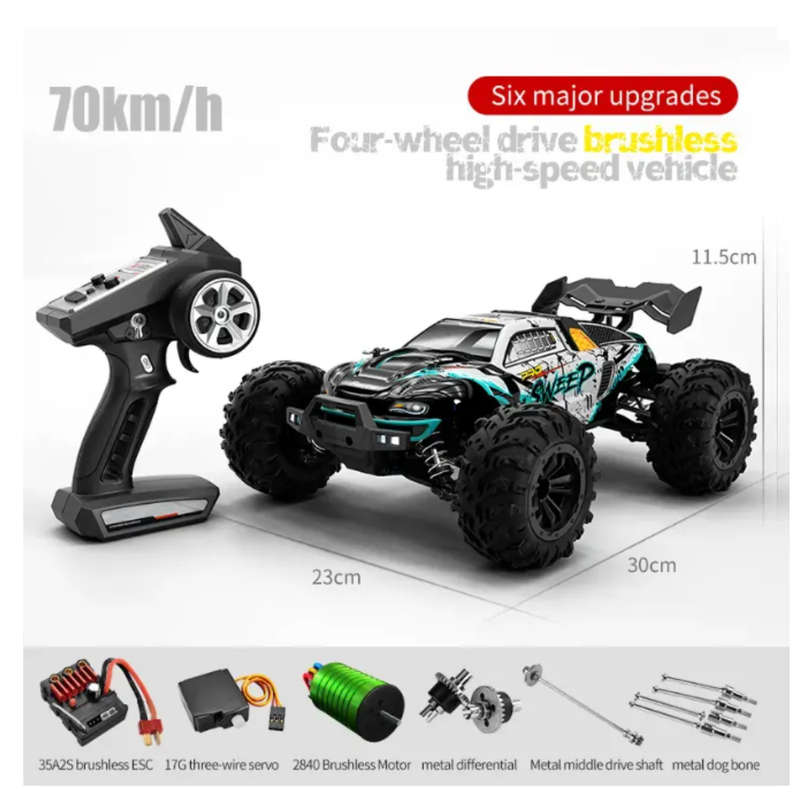

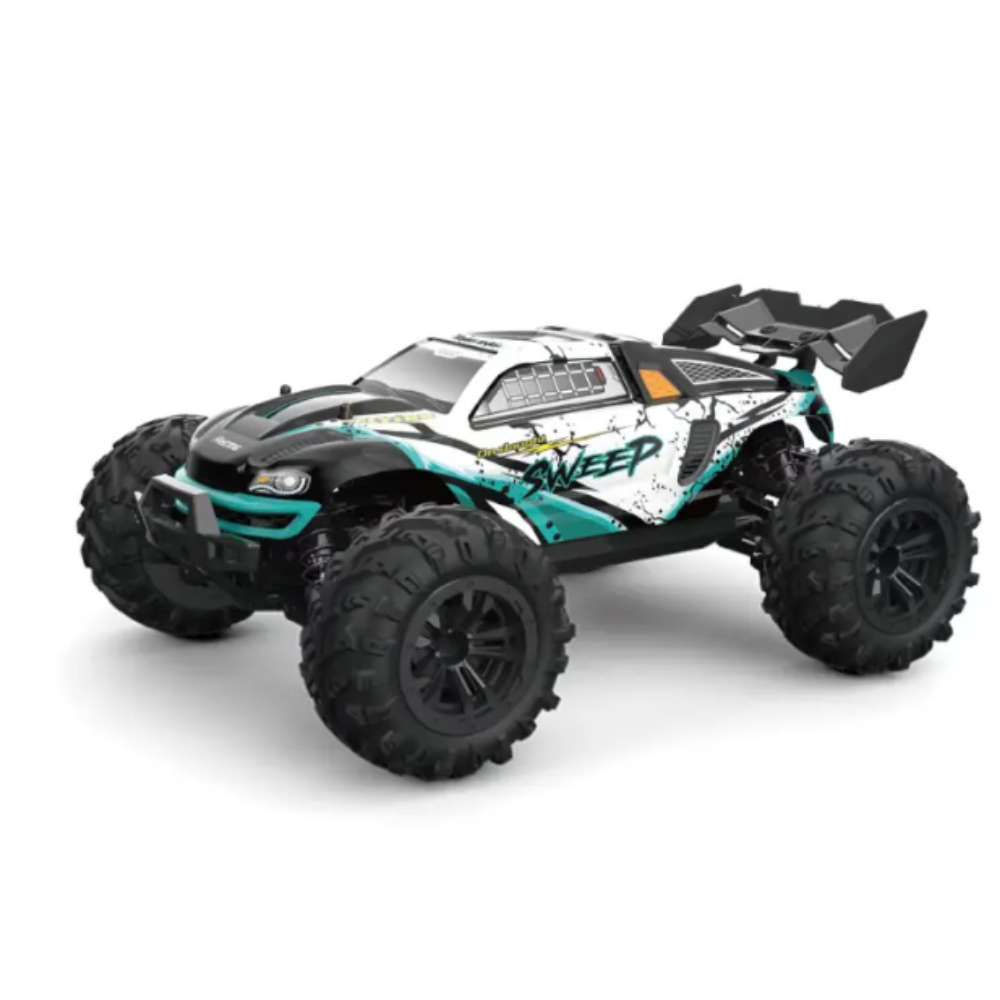

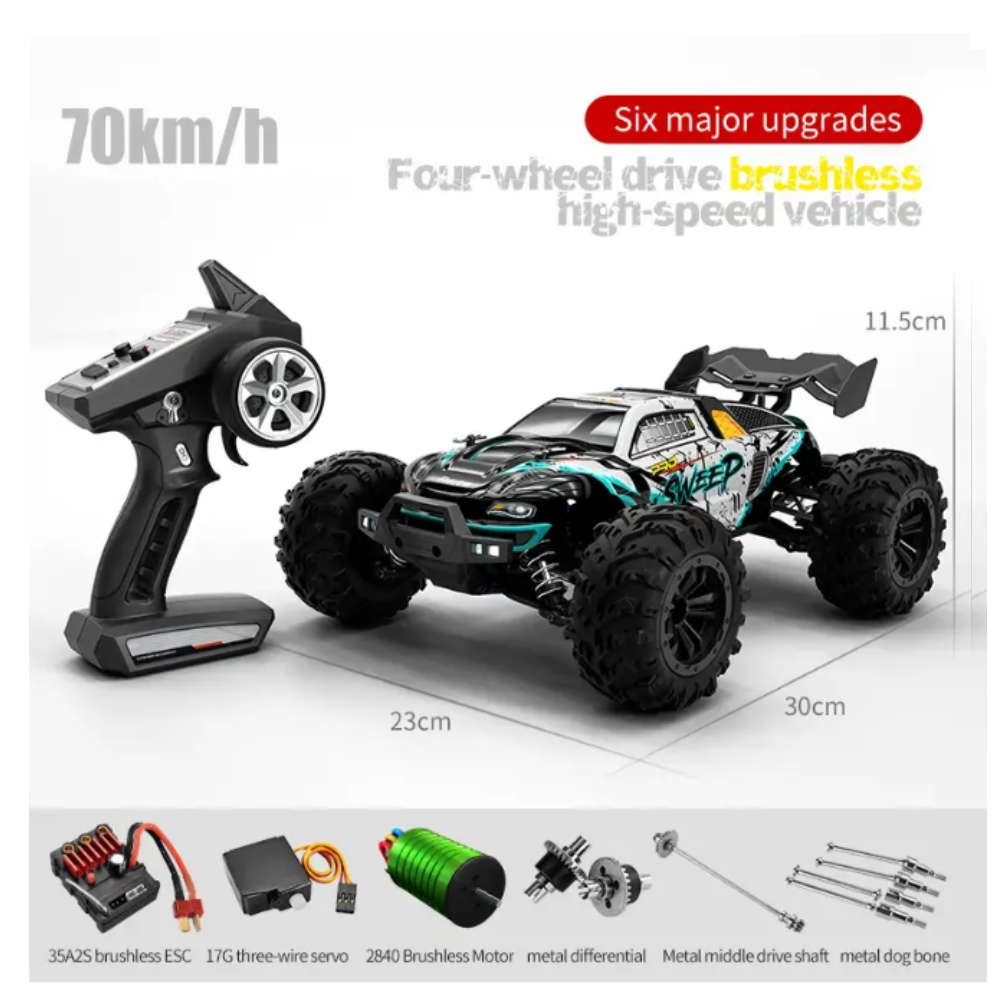

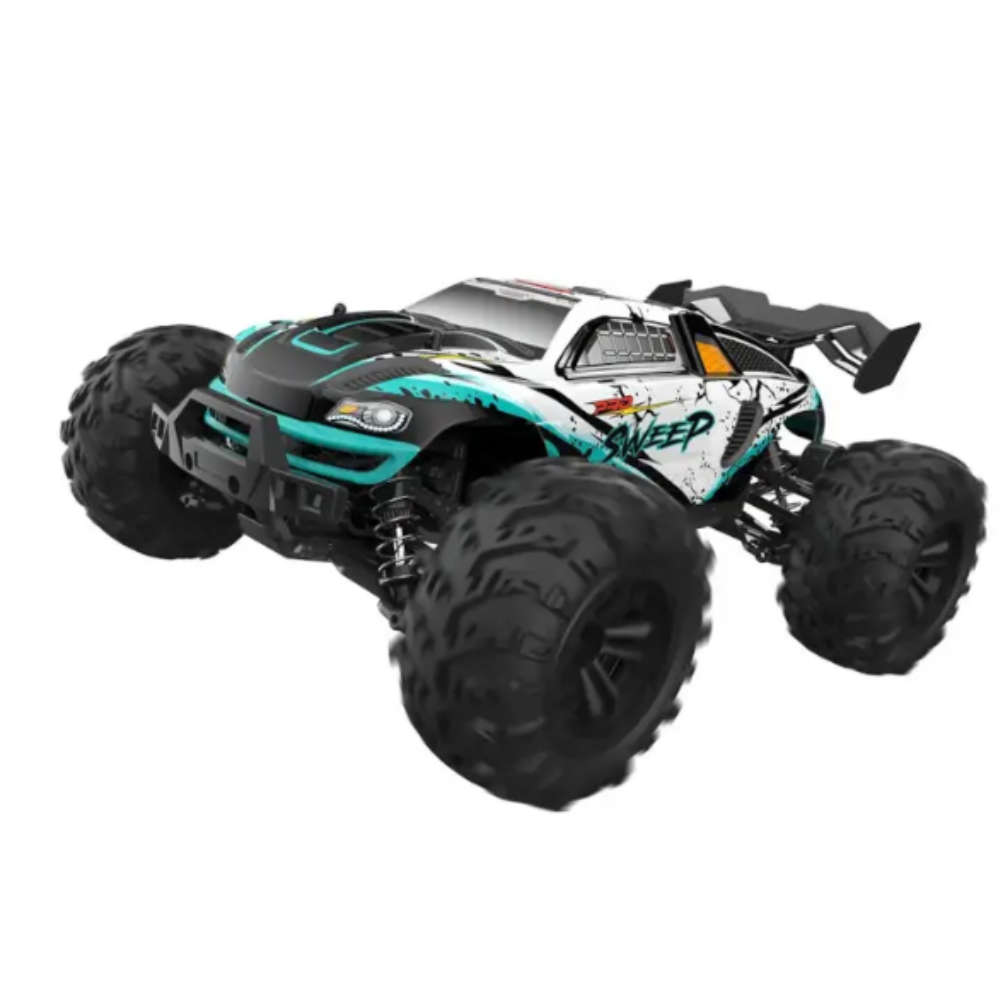

Sweep SCY-16101PRO
Material: Hardware; Electronics; Plastic
1/16 Electric four-wheel drive coupe: brushless motor
2840 brushless motor (4000 KV value)
ESC/Receiver: 35A ESC/Receiver integrated control (splash-proof)
Body battery: 7.4V 1500mAH 15C Li-ion battery (T plug)
Servo: Three-wire 17G digital servo
Remote control battery: 3 "AA" (not included)
Charger: USB Balance Charger
Frequency: 2.4GHz (support multiple cars to compete in the same field)
Remote control distance: ?120 meters
Remote control category: full scale synchronous control system (gun control)
Handling time: 15-18 minutes (continuous running at full speed)
Charging time: 3-3.5 hours (USB balanced charge)
Wheelbase Parameters
Wheelbase: 185mm;
Wheel base: 188mm;
Wheel diameter: 85mm;
Speed; 70 km/h (top speed)
Protection functions: 1. Charging; 2. Stuck; 3. High temperature; 4. Low voltage
Precautions:
1: Charging protection: constant current and constant voltage balance charging, protection function for battery overcharge and overcurrent.
2: Motor anti-jamming protection: when overloaded, the motor stops working.
3: High temperature protection: When the working temperature is higher than the set condition, the drive control circuit stops working, and resumes work when the temperature drops to a safe value.
4: ESC low-voltage power-off function, when the battery is lower than about 6.3-6.4V, it will automatically power off to prevent the battery from being damaged by over-discharge.
Product parameters
- The simulation structure design is adopted, which has the control feeling of a real car, and realizes full-scale continuously variable speed change, high-speed driving, rapid acceleration, deceleration, braking, reversing, left turn, right turn;
- Applicable site: flat, sand, mud, grass.
- Four-wheel drive: front and rear upright spring shock absorption, double wishbone independent suspension system;
- 2.4G full-scale synchronous remote control system. Full-scale throttle/steering;
- Metal differential, metal differential cup, powder planetary gear, powder driving gear, powder main gear;
- Metal CVD front drive shaft, metal rear dog bone, metal wheel cup;
- Three-wire 17G digital servo;
- 7.4V, 18650-1500mAh Li-ion battery (T plug), discharge rate 15C;
- New remote control panel function: rudder size adjustment;
- The whole vehicle adopts 16 ball bearings;
- Metal second floor, metal front and rear arm yards, metal middle drive shaft;
- The car shell adopts high toughness explosion-proof PVC car shell;
- Equipped with LED headlights; (three modes: always on, slow flash, fast flash);
- Equipped with head-up wheel;
- Simulation of big feet tires, strong grip;
What's in the box
1 x 1/16 Scale Monster RC truck
1 x 7.4V 1500mAH 15C Li-ion battery (T plug)
1 x 2.4G Remote Controller
1 x USB Balance Charger
1 x Rear wing
1 x Wheelie bar
1 x Hex Spanner
1 x Instruction manual
