Smart Wi-Fi Dimmer Touch Panel Light Switch - 1 Gang + BT Tuya Smart.
NEW!! This dimmer unit is our very latest release and matches our current range of 1 to 4 gang switches. This unit (in addition to Wi-Fi) also supports BLE (Bluetooth low energy). A Wi-Fi to Bluetooth hub can also be added if required.
- Face Plate Options - 4 Colours: all switches ship sealed with a White face Plate (default). All Face Plates are interchangeable and simply 'clip on'. Black, Silver, and Gold face plates only are sold separately, meaning you must first buy the 'default white switch'.
- To Buy Black, Silver or Gold Face Plates [click here]
- Colour Frame or Bezel (Optional): enhance the overall appearance of your Smart switches with an outer Frame.
- To Buy Light Switch Frames (optional) [click here]
Suitable for any new installations or smart home upgrades by replacing your existing light switches. Simply, 'Wire, Configure and Play'. Home Automation is made Smart, Simple, and Affordable via the free Tuya, Smart Life App (Android or IOS), offering the fastest, most stable platform and widest range of Smart Products. Supports Alexa, Google Home, and IFTTT.
Great way to make any appliance or device, 'Smart'.
Product Features
- Elegant, design, colour white, black, Silver & Gold - Wire, Configure, and Play.
- Activation dates, days of the week, start time and duration can all be pre-configured via the Smart Life application giving you complete remote control and ON/Off overwrite. See 'How do I get started' - select from the main menu above
- Three modes switching namely: 1. touch panel, 2. Wifi (mobile phone + configure all aspects predefine ON/OFF etc) & 3. Bluetooth (mobile phone - Wi-Fi to Bluetooth hub can also be added if required.)

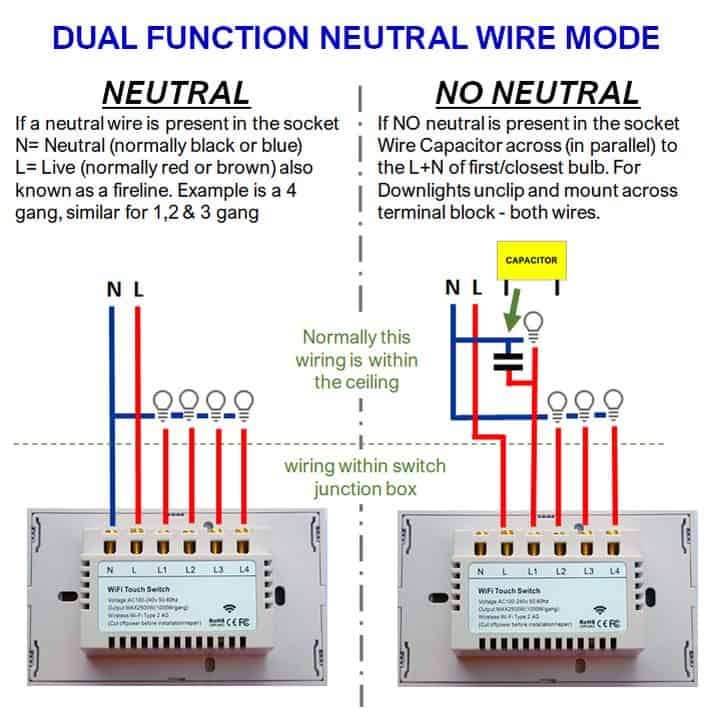

- Supports both 'Neutral Wire' and 'No Neutral Wire' present operation. (Capacitor included for no neutral operation - see additional images for wiring)
- Blue Backlit colour can be switched OFF during nighttime hours (so as not to disturb your sleep).
- Supports Voice Commands and AI units such as Home Assistant, Amazon Alexa, Google Home, etc.
- All your Smart Devices are connected via a Single stable Platform been the Smart Life app from Tuya.
- The entire Smart Life system performance relies on an adequate Wi-Fi (2.4GHz only) signal. We recommend the use of our WIFI Extender products to ensure comprehensive Home & Outdoors Wi-Fi coverage. To Buy [click here]
Specifications
- Electrical Voltage: 110-240V AC / 50-60Hz
- Power Rating: 10A max, 2300W (max 1000W per anyone gang)
- Product dimensions：120 x 76 x 33 (L x W x D) in mm
- Material: White ABS (Fire-retardant)
- Wireless Frequency: Wi-Fi 2.4GHz, 802.11 b/g/n, WPA-PSK/WPA2-PSK + BT
- Operating Temperature: -10ºC - 50ºC
- Chipset: CB3S - Wi-Fi + BLE mode
What is in the Box?
- 1x Smart Light Dimmer - 1 Gang
- 1x Instruction Manual
