Smart WiFi Input 8-40V DC Switch Tuya SmartLife. Output 10A max dry contact relay any other DC or 230VAC. Includes Remote control 433Mhz option.
This High Current load Basic 10A Smart WIFI switch can be used to make any device or appliance that uses an input of 8-40V DC Smart. The output is via an NO (Normally Open) relay contact which offers a wide range of switchable voltages, 115VDC or 230VAC @ 10A.
Note this latest version switch offers a 'wider input voltage range' and replaces our previous 12VDC and 14-VDC switches.

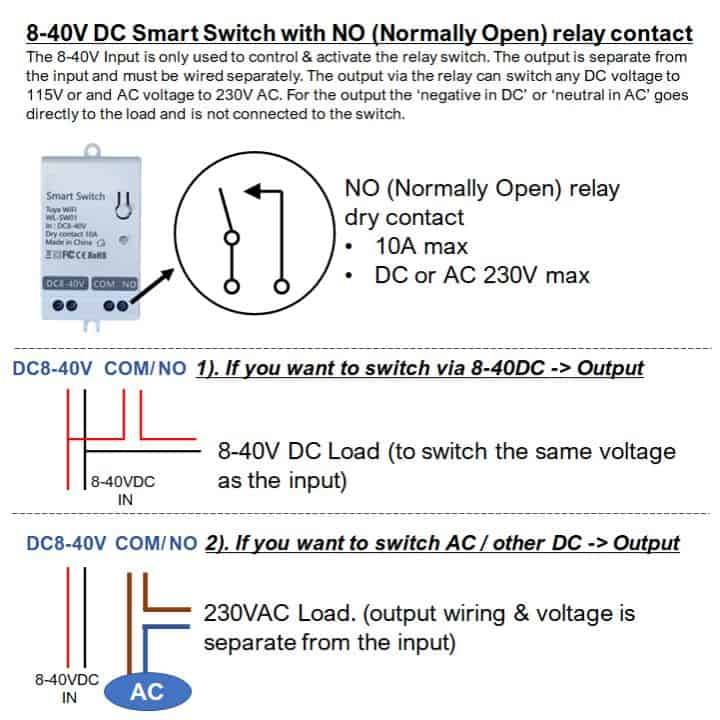

- The Output wiring is separate from the Input, meaning this Switch does not switch its input voltage to the output buy rather switches via a normally open dry contact relay. OFF=Open circuit | ON = short circuit
- The 8-40VDC input is used to control the smart switch and activate the relay only. Not switched to the output.
- The Output is via NO (normally open) relay contact. Output switching voltage is 115V DC or 230V AC @ 10A.
Simply, 'Wire, Configure and Play'.
Home Automation made Smart, Simple and Affordable via the Tuya, SmartLife App installed on your Cell Phone (Android or IOS) offering the fastest, most stable platform and widest range of Smart Products. Supports Alexa, Google Home and IFTTT.

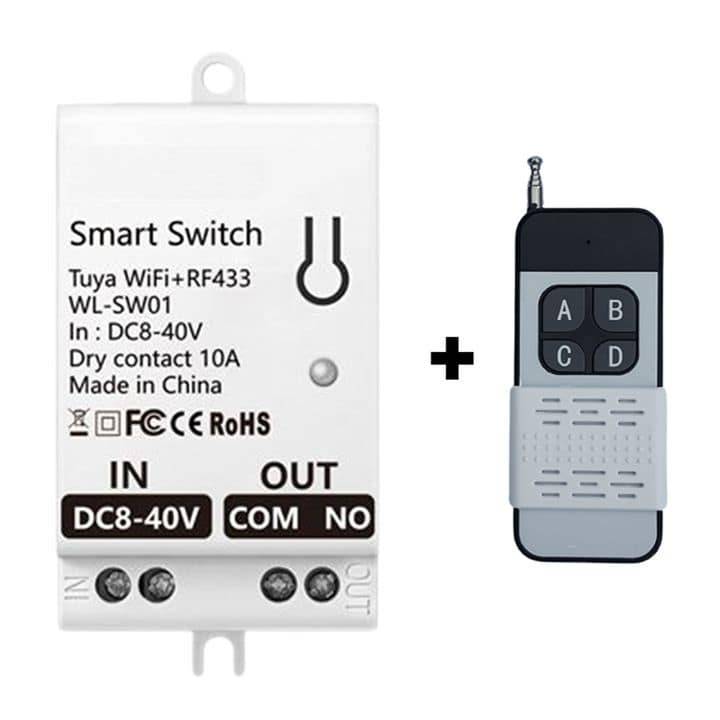

IMPORTANT NOTE: This smart switch is also capable of switching via a long range 433Mhz remote control (purchased separately). The Switch and Remote are sold separately due to the fact that 1 Remote can control up to 4x individual switches so you have the option to purchase a maximum of 4 switches per single 4Ch remote. Switch and/or Remote must be purchased separately as 2 items. you need only purchase 1 remote for every 4 switches.
To Buy Remote controls [click here]
The Smart home switch 10A is a great way to make any appliance or device, 'Smart'.
'HOW TO' YOUTUBE VIDEO [click here]
What devices can presently be Smart Automated with Tuya - To View our Range of Smart Product? [click here]
Note: new in stock Geyser Timer Controller Smart Switch 30A [click here]
Product Features
- Small and Compact design - high current. Wire, Configure and Play.
- Activation dates, days of the week, start time and duration can all be pre-configured via the Smartlife application giving you complete remote control and ON/Off overwrite.
- Supports Voice Commands and also AI units such as Amazon Alexa Echo and Google Home solution.
- All your Smart Devices connected via a Single stable Platform been the Smart Life app from Tuya.
- The entire SmartLife system performance replies on an 'adequate WIFI' (2.4GHz only) signal. We recommend the use of our range WIFI Extender products [click here]
Enclosures / Housing
- Need an Enclosure or Housing for the switch? [click here]
Specifications
- Input Electrical: 8-40V DC
- Output Electrical: any DC (max 125V) or AC (max 265V)
- Power Rating (output): 10A max, 2200W via NO (Normally Open) relay contact
- Product dimensions：74 x 37 x 24 (L x W x H) in mm
- Material: White ABS (Fire-retardant)
- Wireless Frequency: 802.11 b/g/n 2.4GHz, WPA-PSK/WPA2-PSK
- Operating Temperature: -10ºC - 50ºC
What's in the Box?
1x Tuya Smart DC Switch
1x Instruction Manual
