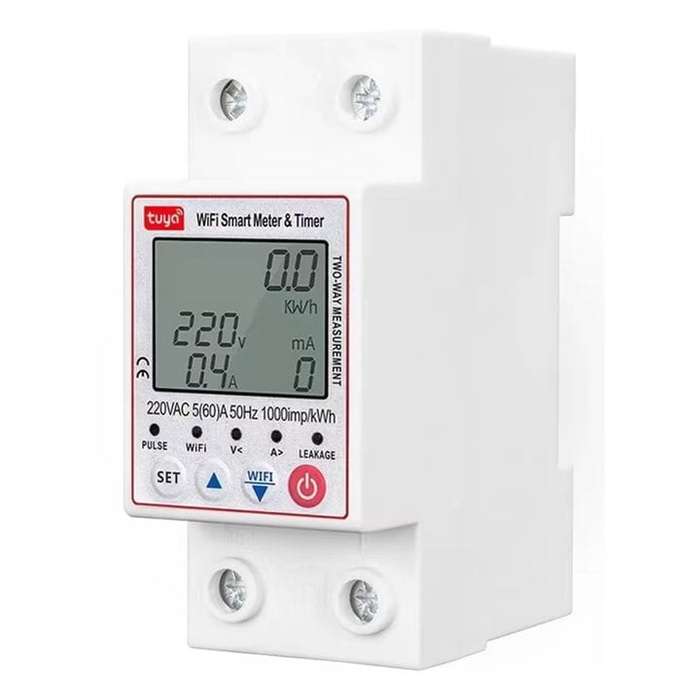

The Smart Energy Monitoring Switch can be used in any application up to 63A (14.5kW) and also accurately measure power consumption. Can be used to make any home, office or factory 'Smart' while monitoring the amount of energy used. Control (ON/OFF) any high-current device remotely via your phone from any location (free Tuya app). Allows for 'smart switching' and includes a safety trip switch for over and under voltage and earth leakage.
Simply, '*Wire, Configure and Play'.
Note:
- Single Phase 230VAC 50/60Hz up to 63A or 13.8kW.
- IMPORTANT NOTE: DO NOT replace your existing Earth Leakage breaker as this unit only switches the Live ON and OFF (not an isolator). Setting this smart unit to a lower value (than your fixed value existing unit) can often result in only the smart unit tripping first.
- Typically installed after your DB's Main Isolator and Earth Leakage breakers (to measure total home consumption). Adjust to measure specific items only such as a geyser or pump etc.
- Can be used as a smart 1st trip when setting a lower value than your existing Earth leakage which is typically 30ma (0.03A). The unit has a 30-second monitor timer after each trip. If the over voltage, under voltage, over current or earth leakage is still present the unit will not reset.
- This Switch supports DIN rail Mounting. For Samite Breaker connections you will need an adaptor [click here]
- This Switch supports Energy or Consumption Monitoring (1200imp/kWh)
- Requires an adequate WiFi signal to operate.
- Via easy Smart Functions, this switch can be linked to smoke or any other detectors to disconnect the mains feed etc.
- *A qualified Electrician is required.
Home Automation is made Smart, Simple and Affordable via the Tuya, SmartLife App (Android or IOS), offering the fastest, most stable platform and widest range of Smart Products. Supports Alexa, Google Home and IFTTT.
Great way to make any appliance or device, 'Smart'.
Download the User Manual [click here]
Product Features
- Remote control at any time from anywhere
- Schedule/Timer/loop timer
- Energy consumption monitoring & reporting / real-time electricity usage and power
- Electric leakage protection:10-99mA (feature can be disabled). Trips the L only. Apply 20mA to circuits that may trip on your DB @ 30mA. Useful to ensure a trip does not require a manual reset. The timer counts 30 seconds after each trip and will only reset once the leak is cleared.
- Preset current/voltage threshold values by app, once the real-time/current/voltage reaches the threshold values, the connected electrical appliances will be automatically turned off.

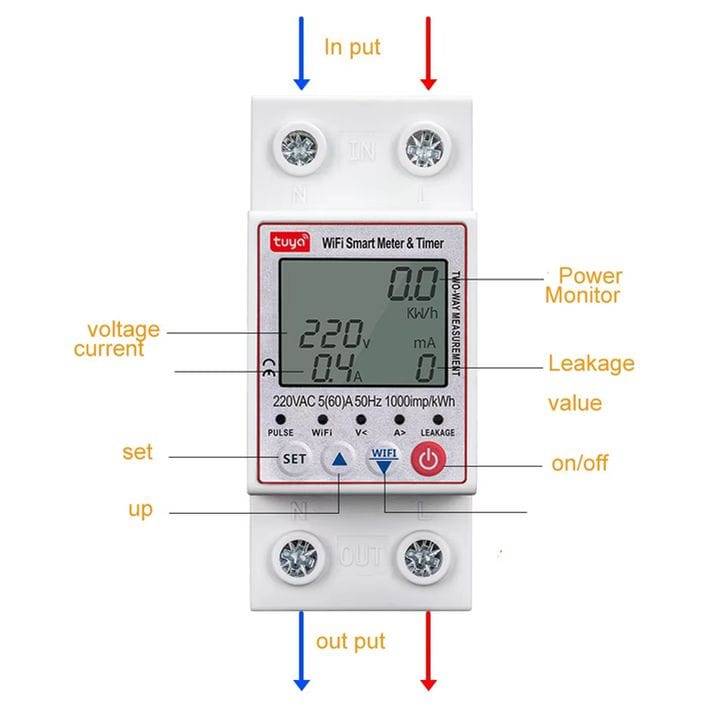

- Smart (mobile Phone) & LCD, real-time display voltage, current, power, total energy kWh
- Under voltage protection 150V-190V (adjustable) (default: 170VAC)
- Over-voltage protection 250V-300V (adjustable) (default: 27VAC)
- Over-current protection 1A-63A (adjustable) (default: 63A)
- Activation dates, days of the week, start time and duration can all be pre-configured via the Smartlife application giving you complete remote control and ON/Off overwrite.
- Supports Voice Commands and also AI units such as Amazon Alexa Echo and Google Home solution.
- All your Smart Devices are connected via a Single stable Platform the Smart Life app from Tuya.
- The entire SmartLife system performance relies on an 'adequate WIFI' (2.4GHz only) signal.
Typical Uses (but not limited to)
- Manage the Power Consumption of your home of specific devices in an office or factory.
- Verify your Pre-Paid electricity consumption
- Smart Switching of any home or a specific section of a factory/office
- Large pumps and or any machinery
- Can be wired to any existing DB or Distribution Board (occupies 3 slots)
Specifications
- Name: Wifi Intelligent Energy Meter
- Rated current: 63A Max (adjustable)
- Reference voltage: 90-250V (over and under voltage protection - will trip L)
- Frequency: 50/60Hz
- Electric leakage protection: 10-99mA.
- Pulse frequency: 1200imp/kwh
- Installation: 35mm Din Rail - Occupies 2 standard breaker slots (adaptor for Samite mounting is available from us)
- Power rate: 1W/6VA

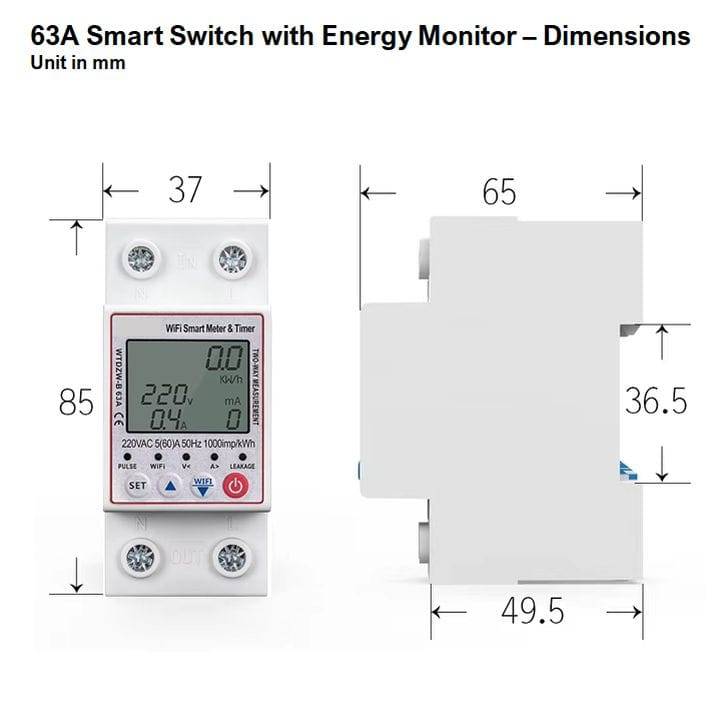

- Item size: 85 x 37 x 65 (L x W x D in mm)
- Item weight: 185g / 6.53ounce
- Package size: 100 * 75 * 45mm / 3.94 * 2.95 * 1.77in
- Package weight: 167g / 5.89ounce
What's in the Box?
1x Smart Energy Monitoring Switch
1x Instruction Manual
