Smart Water Tank Sensor with Automated Pump Controller. Wifi Tuya Smart Home.
Make your Water Level Monitoring system completely hassle-free and go 'Smart'. Suitable for any water storage applications irrespective of volume such as Eco/ JoJo bulk storage tanks, fish tanks or ponds. For use in new installations or simply upgrading your current pump and controllers to be smart. The system provides for 5 levels of water level detection 0%, 25%, 50%, 75% and 100%. Based on these readings and your settings selected the system will also control your pump. For example: at 25% switch ON / switch OFF at 100%.
Working Modes: (see additional images)

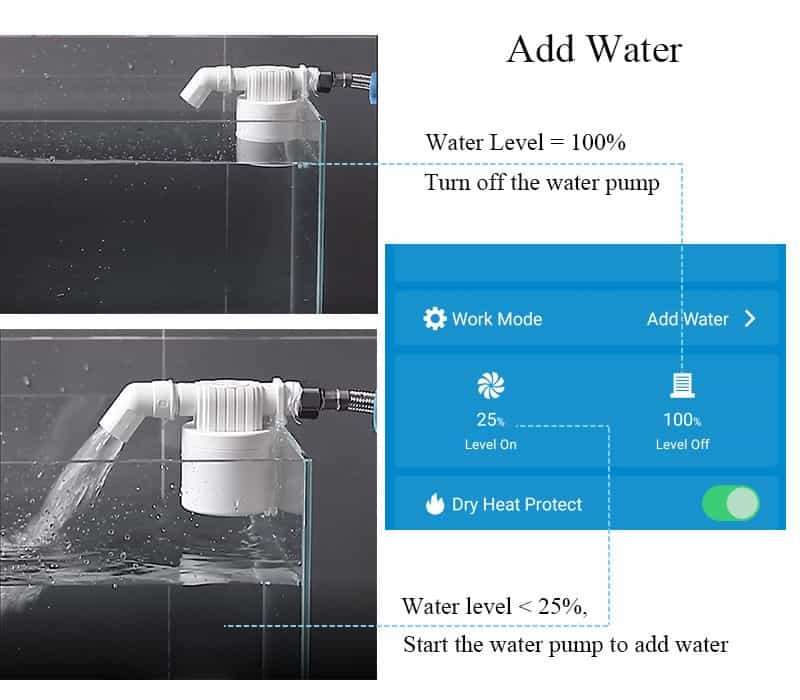

- Fill the Water Tank (based on current water levels in the tank): select the Work Mode 'Add Water' function and select the low level to switch the pump ON and the high level to switch the pump OFF.

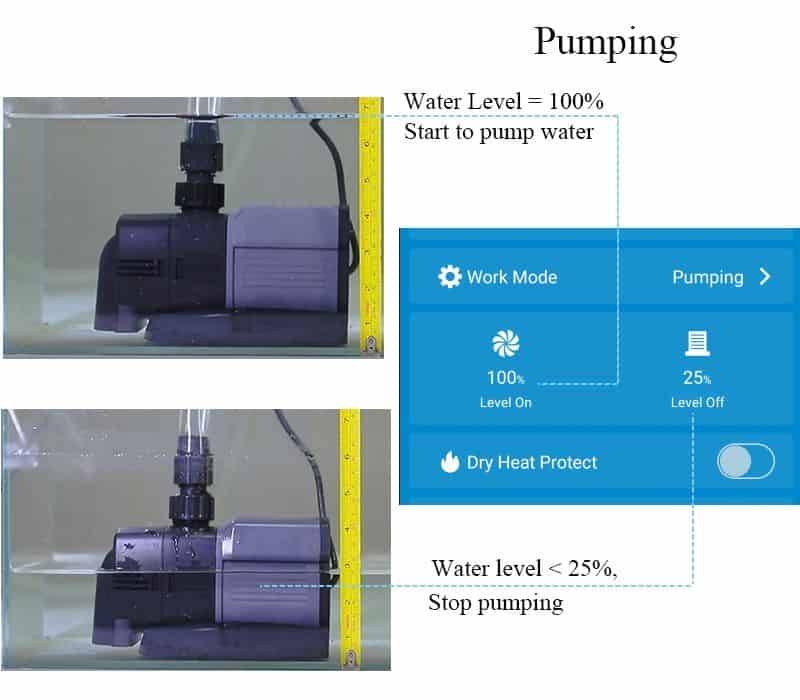

- Pump Water Out from Water Tank irrigate (based on current water levels in the tank): select the Work Mode 'Pumping' function and select the high level to switch the pump ON and the low level to switch the pump OFF.
- Note one unit cannot perform both the above functions as the pump to fill the tank and the pump out to irrigate are separate pumps. The default use of this unit is to manage the 'FILL TANK' pump. Should you require both functions 2 units are required.
NB: It is recommended that you first set this unit up in the comfort of your home using the probes and a glass of water.
25A Output Upgrade Essential Addition for Pumps. Most pumps exceed the current rating of this controller's built-in relay switch. For this reason, a 25A contactor relay switch is highly recommended. The relay contactor has an input voltage of 230VAC (from this controller's output) and is available in | 25A single phase 2pole or |400VAC three phase 4pole. To Buy a Contactor [click here].
Smart systems will never 'lose' their programming do not require any battery backup and can be controlled from pretty much anywhere on the 'planet'. Simply 'Connect, Configure Once, Wire and done'.
Home Automation has never been this Smart, Simple and Affordable. Tuya offers the fastest switching, most stable platform and widest range of ever-growing Smart Products. Supports Alexa, Google Home and IFTTT. Enables remote control of any number of devices or home appliances via the free Tuya SmartLife app installed on your phone or tablet (Android or IOS).
With so many smart home platforms available, WHY TUYA [click here].Great way to make any appliance or device 'Smart'. All your Smart Devices connected via a Single Stable Platform have the Smart Life app from Tuya. We ONLY sell TUYA so all products use the SmartLife app. Getting started with Tuya [click here]
Download User Manual: Smart Water Level Sensor and Pump Controller [click here]
Features of this System

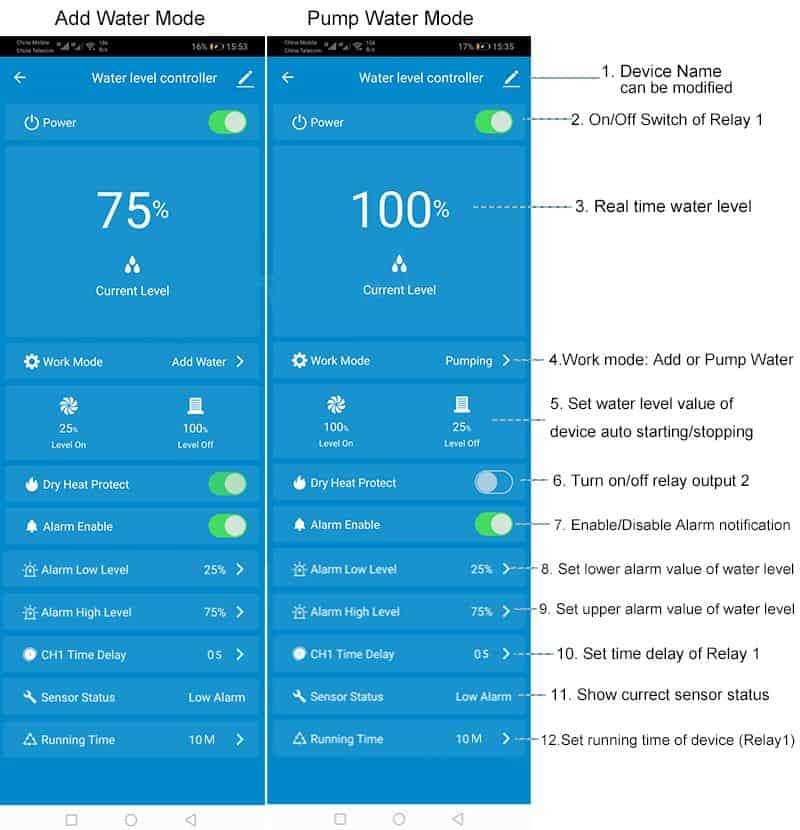

- Via the free Tuya app, you can pre-configure, activation dates, days of the week, and start and end levels giving you complete remote control.
- Fully Automated Water level replenishment based on any of five current levels. Replenishment can be via a Pump 230VAC (single phase). Use a suitable relay for 3phase pumps) or solenoid valves (24VAC).

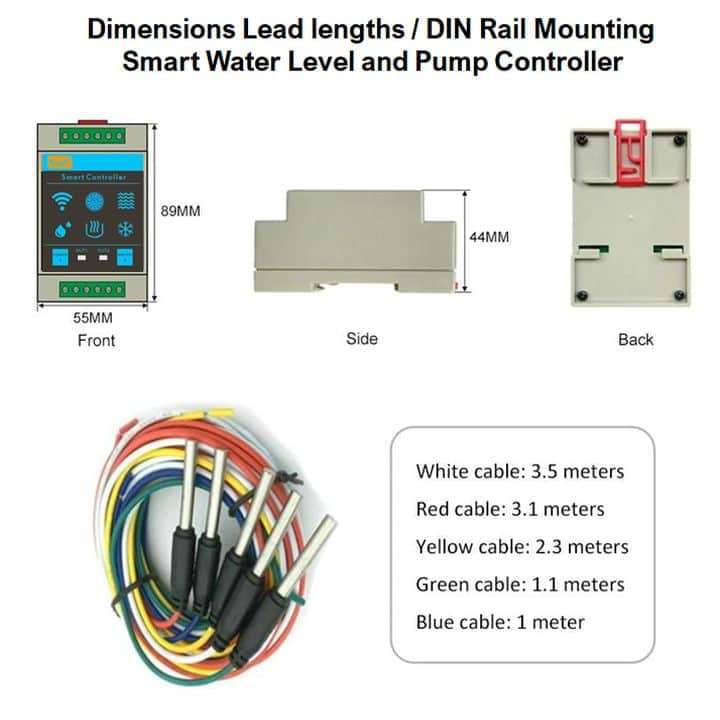

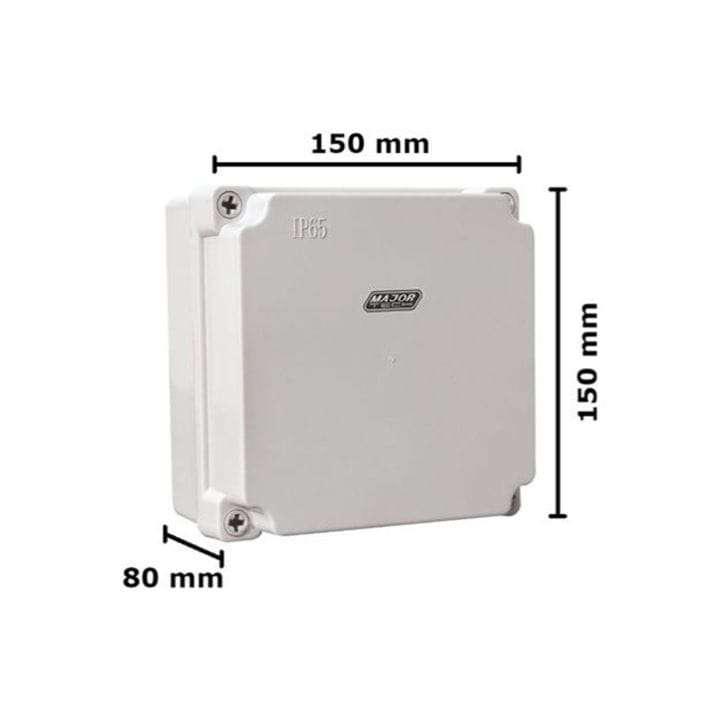

- The unit supports DIN rail mounting and can be mounted in a separate DB (Electrical Distribution Board). For Outdoor installations, a suitable +IP65 enclosure or DB is required. The unit is required to be mounted close to the tank, due to the probe lead lengths see images.
- Supports Voice Commands and AI (Artificial Intelligence) platforms such as Amazon Alexa Echo and Google Home solutions.
- All your Smart Devices connected via a Single Stable Platform have the Smart Life app from Tuya. We ONLY sell TUYA so all products use the SmartLife app. How do I get started [click here]
Typical Uses
- Any water level/storage applications irrespective of volume.
- Eco/ JoJo bulk storage tanks.
- Fish tanks or ponds.
- Swimming Pools
- Industrial Applications
Available options:

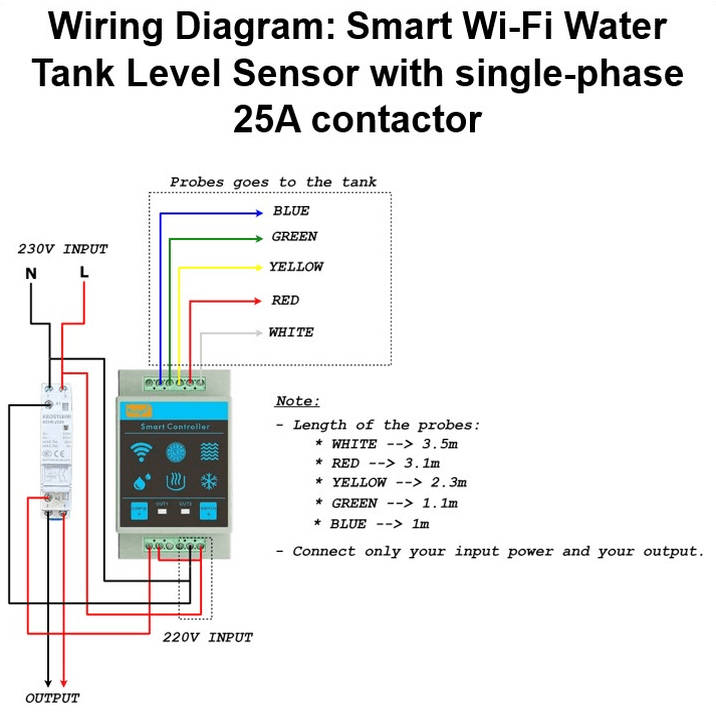

- Single Phase: Input 230VAC / Output 230VAC Single Phase, 2x Isolator 25A, NO (Normally Open)

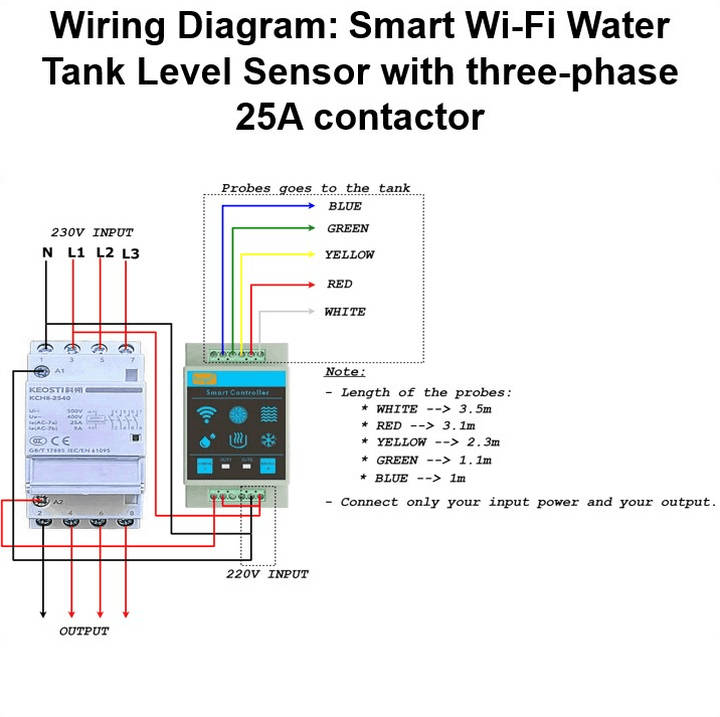

- Three Phase: Input 230VAC / Output 400VAC Three Phase, 4x Isolator 25A, NO (Normally Open)

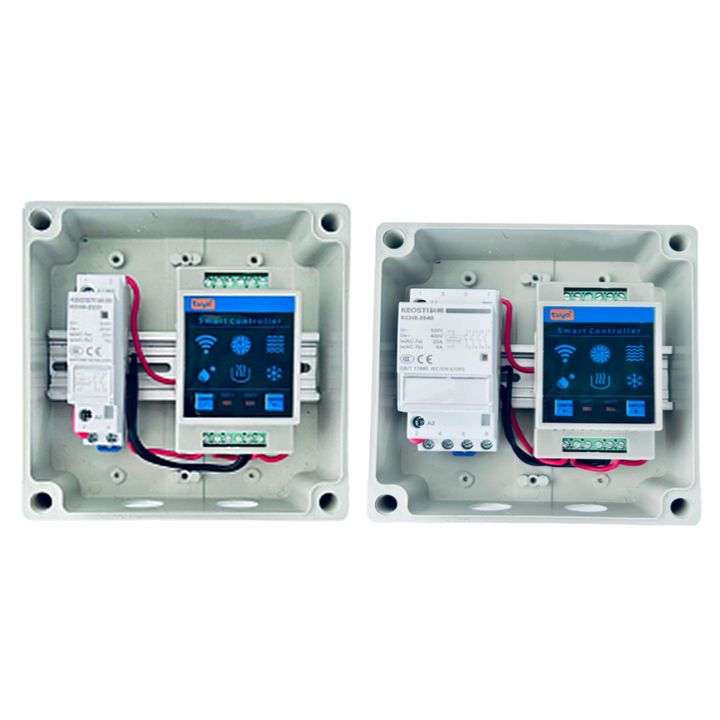

Simply connect the output from any of our smart devices to the inputs of the contactor (A & A2). The top connections are Inputs for the 25A max load while the contacts at the bottom are the outputs. The contactors are also isolators meaning the single-phase unit. When 230VAC is applied to the contactor the outputs will close.
Optional recommended items
- For Home storage and flow systems using 1 pipes (max) we recommend our irrigation Krain solenoid valves [click here] which can be connected to the municipal feed as opposed to a borehole or pump. Note these will need a 24VAC transformer connected to this controller's output [click here].
- For high-current single-phase pumps consider the use of our 25A contactor switch.
- For high-current three-phase pumps consider the use of our 25A contactor switch.
Specifications for Water Level Meter
Product Name: Tuya Smart Home Water Level Sensor
Power Power: Supply 230VAC
Application: pump water, storage tank, water tank, boiler
APP Tuya/Smart Life
Material Plastic
Size 89mm x 55mm x 44mm
WiFi IEEE 802.11 b/n/g 2.4G Hz
Specifications for Contactor
Input Working Voltage: 230VAC
Maximum Output Current: 25A
Number of Output Contacts: 2 x for 1 phase 230VAC / 4 x for 3 phase 400VAC
DIN Rail Mounting
What's in the Box?
- 1x Water Level Pump Controller
- 5x Detection Probes
- 0x Tuya User Manual (please Download see above)
