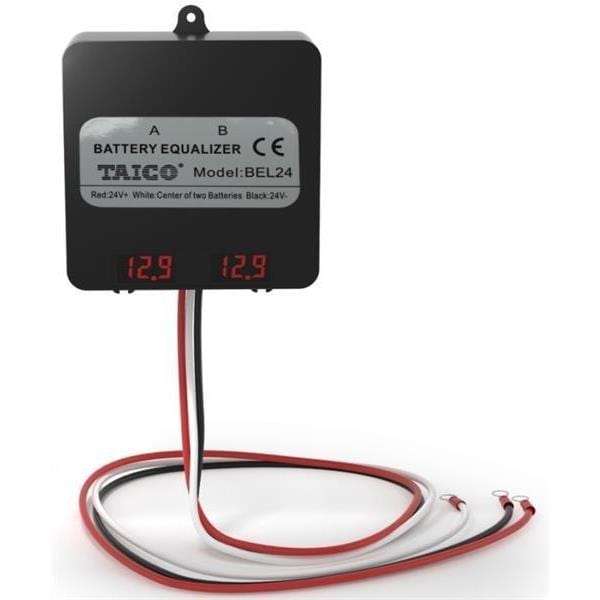

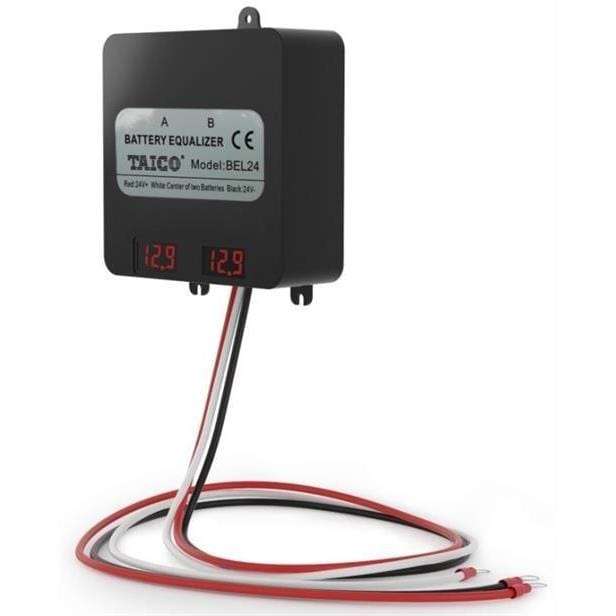

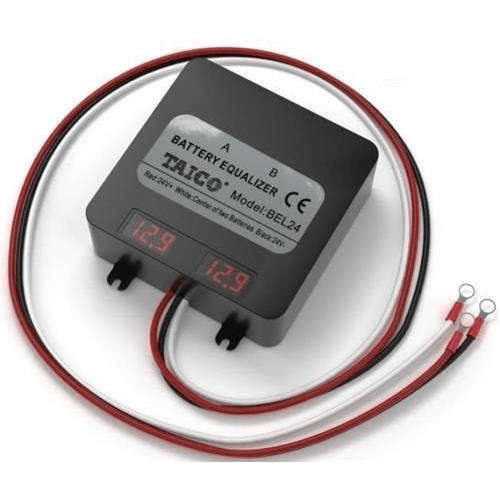

Solarix 24V Battery Equaliser And Balance Charger SOLTAICOBEL24V
The Solarix 24V Battery Equaliser And Balance Charger is used for range of batteries such as Lead-acid , AGM and Lithium batteries which are connected in series to keep battery voltage balanced. On deviation of more than 20 mV, the higher voltage battery will be discharged to the lower voltage batteries until all the battery voltages are equal. This will improve battery's performance and extent battery's life time. No external power supply is required
The Solarix 24V Battery Equaliser And Balance Charger is designed to be used to balance 24V battery banks comprised of multiple 12V batteries. It is a plug and play device that does not need any adjustment. Simply connect the 3x ring terminals to the respective connections on the batteries. The two display screens simply show the voltage of the battery that the cables are connected to.
For a 24V system, 1x unit is required
For a 36V system, 2x units are required
For a 48V system, 3x units are required
Multiple can be installed in parallel to increase balancing current. Simply stack the 8mm ring terminals on top of each other.
The left screen shows the voltage across the 0V-12V (red and white cables) and the right screen shows the voltage between the 12V-24V (white and black cables).
We highly recommend using a voltmeter:
- Red cable - 24V
- White cable - 12V
- Black cable - 0V
Specifications
- Battery Banks Of 2x 12v In Series Can Be Used
- Monitors Each Battery Voltage
- Keeps Batteries In Optimal Condition
- Up To 10amp Inter Battery Balancing
- Reverse Polarity Protection
- Ensures Longer Service Life Of Batteries
- Required For 2x 12v Batteries To Be Connected In Series
- Easily Connects To Batteries With Included Wiring
- No External Power Supply Is Required
- Optimization Current-Controlled Between 0 To 5 A
- Low Power Consumption Of 3ma
- Compatible With Lead-Acid , AGM And Lithium Iron Phosphate Batteries
