SVOLT 24V 106Ah 2.71 kWh A-Grade Lithium Battery CNN2511

Svolt 24V 100AH 2.71KWh Lithium Battery (BMS) Reliable, High-Efficiency Energy Storage Solution

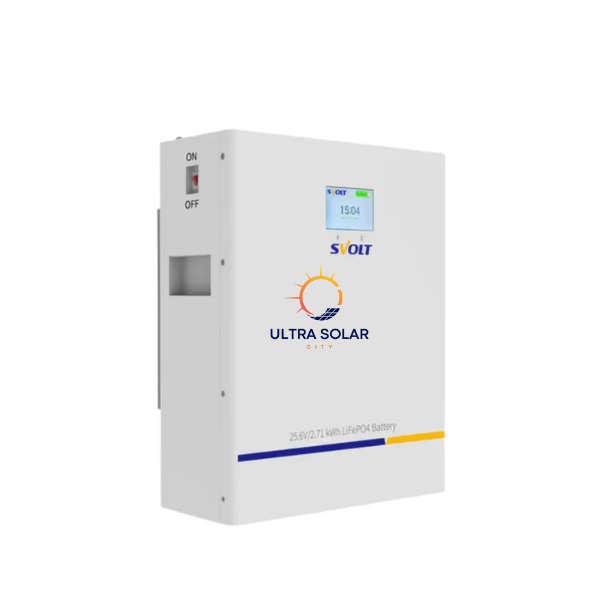

The Svolt 24V 100AH 2.71KWh Lithium Battery offers superior performance and longevity, ideal for renewable energy systems, solar power storage, and other energy applications. Powered by A-Grade LiFePO4 cells, this battery is designed for a range of applications, offering exceptional cycle life, high efficiency, and environmental friendliness. It features a built-in Battery Management System (BMS) for enhanced protection and performance.

Key Features of Svolt 24V 100AH Lithium Battery:

• A-Grade Cell Technology: Ensures high performance, efficiency, and longer lifespan.
• Maintenance-Free Operation: No regular maintenance required for hassle-free use.
• Environmental-Friendly: Designed with sustainability in mind for renewable energy systems.
• Built-in Battery Management System (BMS): Protects the battery from overcharging, deep discharge, and other operational risks.
• Multiple Applications: Suitable for home energy storage, solar systems, off-grid solutions, and more.
• 7 Built-in Protection Features: Includes protection against overcharge, over-discharge, short circuit, and more.
• Mountable Design: Wall-mounted for easy installation and space efficiency.
• 5-Year Warranty: Enjoy peace of mind with long-term coverage.

Specifications:

Battery Type: LiFePO4 (Lithium Iron Phosphate)

Nominal Voltage: 25.6V

Nominal Capacity: 106Ah

Energy: 2.71 kWh (2713.6 Wh)

Internal Resistance: < 25 m

Dimensions (L x W x H): 419 x 350 x 154 mm

Weight: 25.4 kg

Energy Density: 2713.6 Wh

Case Material: SPCC (Steel Plate Cold Coil)

Terminal Type: Feed-through Terminal

BMS Built-in: Yes

Electrical Parameters:

• Operating Voltage Range: 21.6V - 28.8V
• Recommend Charge Voltage: 25.4 ± 0.20V
• Max Charge Voltage: 29.2 ± 0.20V
• Max Continuous Charge Current: 100A
• Max Continuous Discharge Current: 100A
• Peak Discharge Current: 130A
• Discharge Voltage Range: 22.4 ± 0.20V to 20.8 ± 0.20V
• Recommended Discharge Current: 20A
• Round-trip Efficiency: >99%
• Self Discharge Rate: <3% per month

Temperature Range:

• Discharge Temperature: -20°C to 65°C
• Charge Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 30°C

Cycle Life:

• >6000 Cycles at 0.3C discharge rate and 90% DOD (Depth of Discharge) at 25°C.

Additional Features:

• Bluetooth (App): Optional for remote monitoring and management.
• LCD Screen: Displays real-time battery information.
• Heating Function: Optional for use in colder environments.

What's in the Box:

• 1 x Svolt 24V 106Ah 2.71 kWh A-Grade Lithium Battery
• 1 x Red (Positive) Battery Cable
• 1 x Black (Negative) Battery Cable
• 1 x User Manual

Warranty and Service:

• 5-Year Warranty: Provides peace of mind with long-term protection.
• 10-Year Service Warranty: Ongoing support and service for the battery's lifetime.

Important Warranty Terms & Conditions:

• Installation: Must be performed by a qualified electrical wireman or Master electrician with a valid registration from the Department of Labour.
• A valid Certificate of Compliance (COC) must be issued for the solar or backup system installation.
• Installation must comply with SANS 10142 and its components.
• Any warranty claim without installation photos, valid COC, and proof of professional installation may be rejected.

Why Choose the Svolt 24V 100AH 2.71KWh Lithium Battery?

The Svolt 24V 100AH Lithium Battery is the perfect solution for reliable energy storage in solar power systems, off-grid energy solutions, and backup power applications. Featuring LiFePO4 technology, it offers an impressive 6000+ cycle life, superior efficiency, and robust protection features. Whether you're looking to power your home, business, or renewable energy setup, this lithium battery ensures optimal performance, cost savings, and environmental sustainability.
