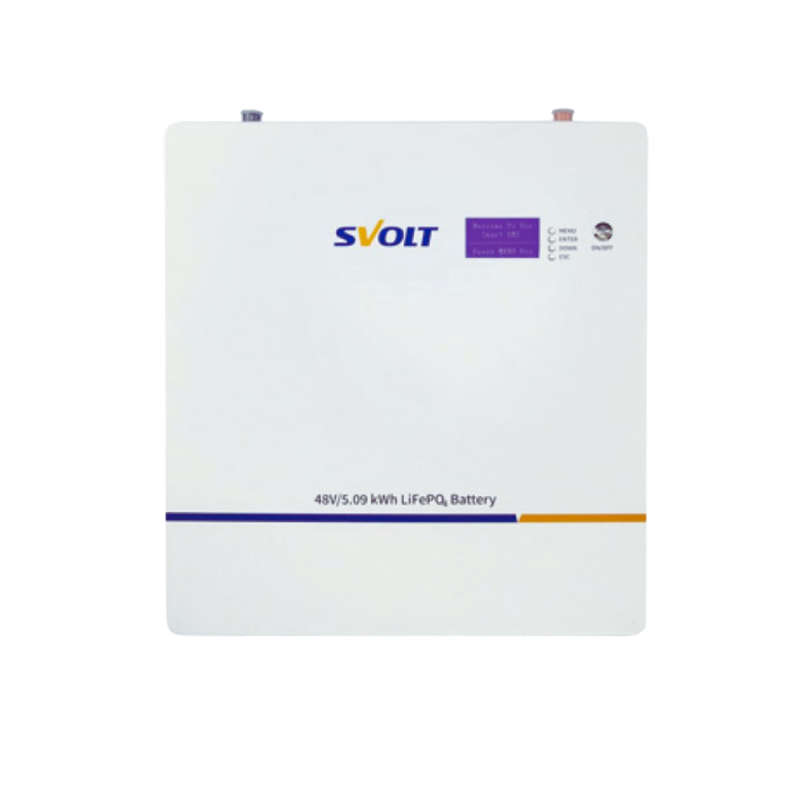

SVOLT Lithium Ion Battery 48V 106AH 5.09KWH Wall Mounted
SVOLT 48V 106Ah 5.09 kWh A-Grade Wall Mount Lithium Battery (Square)
The SVOLT 51.2V 106Ah A-Grade Lithium Battery is manufactured by a world-leading manufacturer SVOLT which is joined with the Haval Motor Group which we all know are extremely recognized for their vehicles, using A-Grade Battery cells. This allows superior performance, capacity, and reliability. Using state of high power A-Grade cell technology, the Lithium Battery is designed for environmentally sensitive areas and is committed to recycling.
The SVOLT 48V 106Ah A-Grade Lithium Battery is widely used in industrial, residential, commercial, and private applications. The maintenance-free construction and advanced design features make the Lithium Battery the definitive choice for a wide variety of markets - Like solar and renewable energy storage for electric vehicles, industrial equipment, medical equipment, telecommunications, TVs, and UPS systems.
SVOLT Lithium Ion Battery Specifications:
Energy:5.09kWh
Installation Type: Wall Mounted
Battery type-Chemistry: LiFePO4
Nominal Voltage:48V
Nominal Capacity :106Ah
Energy Density:5427 KWh
Weight (Approx.):49.5KGS
Terminal Type: M6
Terminal Torque:8.5NM
Case Material: SPCC
BMS build-in: Yes
Internal Resistance:<30mO
Efficiency - round trip:99%
Self Discharge per Month:<3%
Max parallel connectors:16Pcs
Series connections:Not Allowed
Cycle life (0.2C, 25°C@80% DOD) Discharge Temperature:6000 Cycles
Charge Temperature :20° C to 65°
Storage Temperature :0C to 50° C
Bluetooth(App) :Optional
LCD Screen: Optional
Heating Function: Optional
Voltage Window: Optional
Recommend Charge Voltage:43.2V-58.4V
Max Charge Voltage:57.6±0.20V
Recommend Charge current:58.4±0.20V
Max Discharging Voltage:43.2±0.20V
Max Continuous Discharge Current :100A
Peak Discharge Current:150A
Size:
550 x 520 x 220
50.71kg
W x hat's In the Box:
- 1 x SVOLT 48V 106Ah A-Grade Lithium Battery
- 1 x Red (Positive) Battery Cable
- 1 x Black (Negative) Battery Cable
- 1 x Ethernet cable
- 1 x Manual
- 1x Wall Mount Bracket
- 1x Warranty Card
5 Years Warranty
Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
