Description

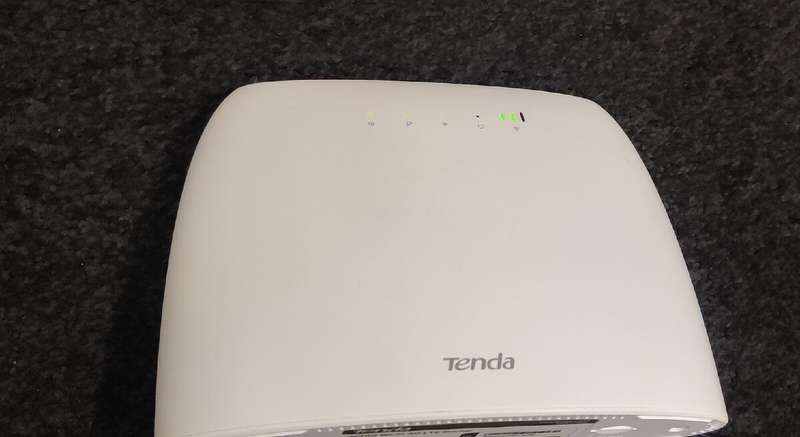

Tendas 4G03 is a 2.4GHz, 802.11n (WiFi 4) 300Mbps wireless router with an integrated Cat4 LTE modem.
The Cat4 LTE modem features speeds of up to 50Mbps uplink and 150Mbps downlink.
It has 2x Fast Ethernet LAN ports and a Mini SIM Card Slot.
The unit features internal antennas for both LTE and wireless connectivity.
Two SMA Female connectors are available for an optional external LTE antenna connection.
Product Summary:
Antenna Gain: LTE: 3dBi (Internal & Optional External Connectors) 2.4GHz: 4dBi (Internal)
Beam-width: 360°
Data Rate: LTE: 150Mbps Downlink, 50Mbps Uplink; Wireless: 2.4GHz: 300Mbps
Ethernet Ports: 2x 10/100
Hardware Button: Reset
Max. Power Consumption: 9W
Mounting: Desktop
Operating System: Tenda OS
Operating Temperature: 0? to 40?
PoE Input: None
PoE Output: None
Power Input: 9V 1A Power Supply (Included)
Serial Interface: None
SIM Slots: 1 (Mini SIM)
Supported Voltage Range: 9V 1A
USB Ports: None
Dimensions: 185 x 126 x 60mm
Weight: 350g
In Depth:
Main Features
Wiring free Broadband access wherever you are:
With LTE Advanced signal coverage for best performance and allows you to
receive Internet access without cable and fiber,
Fast 4G broadband for smoother experience:
The Tenda 4G03 delivers maximum speeds of LTE CAT4 150 Mbps,you
can enjoy uninterrupted HD movies, rapid file downloads, and smooth
video chats.
Stronger and Wider Wi-Fi Signal:
High power gain wireless signal both on 2.4 GHz and 5 GHz bands enlarge
your Wi-Fi coverage, and Beamforming+ technology makes Wi-Fi signal
of 4G09 outstanding behind multiple walls.
Share your Wi-Fi up to 32 devices:
Thanks to a powerful 880MHz and 28nm processor ,it shares the Wi-Fi up
to 32 devicees base on dependable network.
Failover between the Ethernet and 4G Connection:
If the fixed internet connection should fail, this modem can easily switch
to a 3G or 4G network automatically;In another way, the Internet can be
replaced normally
Instantly access a mobile network with a Mini SIM card:
Access a mobile network instantly just with an authorized Mini SIM card.
Specification:
4G Cartgory:
LTE CAT.4
4G/3G standards:
FDD LTE,TDD-LTE,WCDMA
4G Mobile Bands:
4G FDD LTE:B1/B2/B3/B4/B5/B7/B8/B20/B28AB;
4G TDD-LTE:Band38/Band40;
3G WCDMA:B1/B2/B5/B8
Max 4G+ speed:
DL:150Mbps; UL:50Mbps
Wi-Fi standards:
802.11b/g/n,802.11ac
Wi-Fi frequency:
2.4GHz
Wi-Fi speed:
2.4GHz:300Mbps
Wi-Fi transmit Power:
2.4GHz:up to 20dBm
Interface:
1 × 10/100 Mbps LAN/WAN Port
1 × 10/100 Mbps LAN Port
1 × 2FF SIM Card Slot
Button
Power on/off
WPS/Reset
