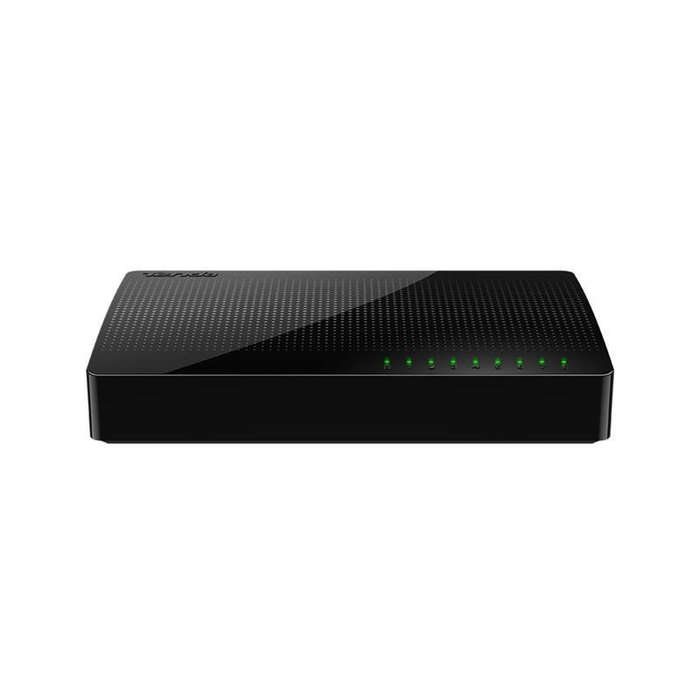

Tenda SG108 Unmanaged Gigabit Desktop Switch Black
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details

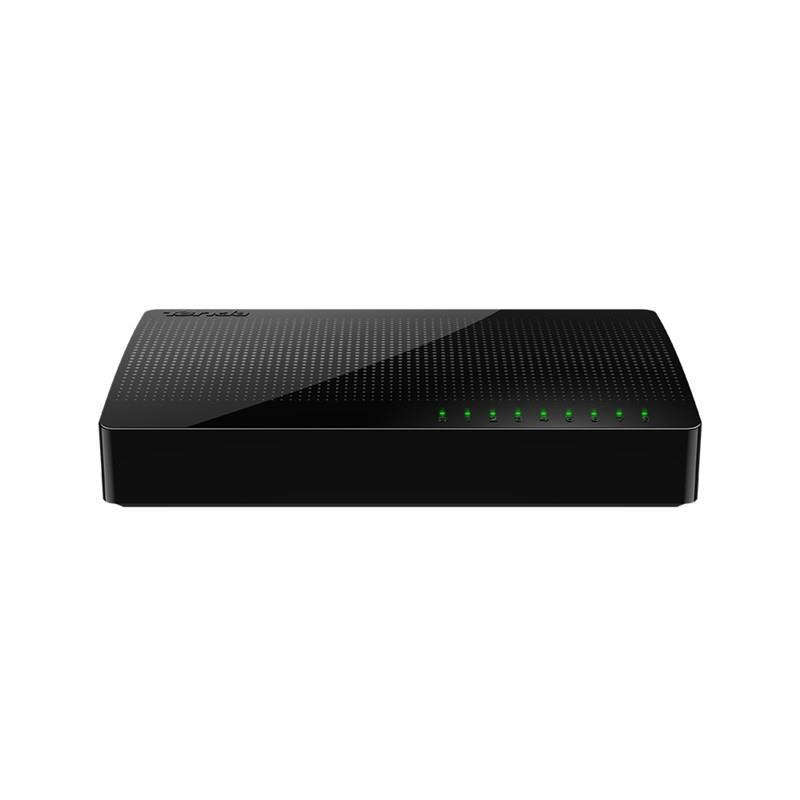

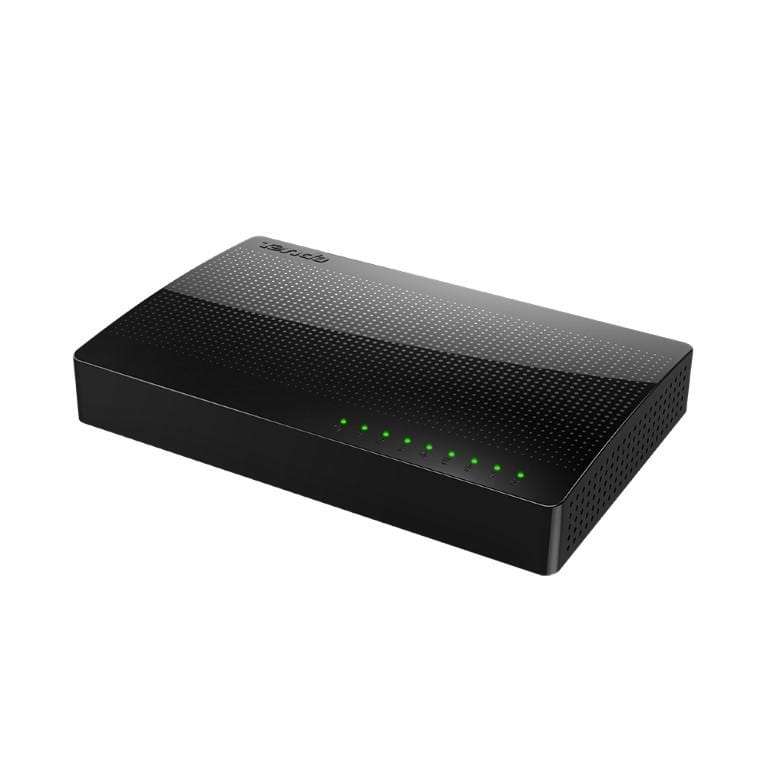

Tenda SG108 Unmanaged Gigabit Desktop Switch Black
SG108 is a 8-Port Gigabit Desktop SOHO switch. It provides 8 10/100/1000Mbps auto-negotiation ports, which you can use to establish a LAN network, or extend the uplink network. Compared with a 100M switch, it enhances transmission speed up to 10 times, eliminating the bottleneck of cascading bandwidth. It supports desktop installation and wall-mounting. Without configuration, it can be played once plugged. With the stable connectivity and easy-to-use features, it is perfectly fit for the networking of school dormitories, small offices, home offices and Video Surveillance. - 8x 10/100/1000Mbps auto-negotiation ports - Auto MDI/MDIX simplifies networking and maintenance - Full wire speed forwarding ensures a smooth network experience - Flow control for full duplex and backpressure for half duplex avoids frame dropping as port blocked - Adopts store-and-forward mechanism and provides 4K MAC address table - 9K Jumbo frame improves the forwarding speed of large data - Adopts green and environmental ABS material, improving heat resistance and heat dissipation - Allows IP camera accessing and provides a running and clear image - Desktop and wall mounting simplify installation
Specification
Network standards
IEEE802.3 IEEE802.3uIEEE802.3x IEEE802.3ab
LED Indicator
1 * Power8 * Link/Act
Interfaces
8*10/100/1000 Base-T Ethernet ports(Auto MDI/MDIX)
Transmission media
Recommended: CAT5/5e UTP or better
Fan quantity
N/A
Dimension
124.0mmx59.0mmx23.0mm
Material
Plastic
Level of protection
ESD:
Air discharge: 8kV
Contact discharge: 6kV
Forwarding mode
Store-and-forward
Switch capacity
16Gbps
Packet forwarding rate
12.00Mpps
Buffer
2Mb
MAC address table
4K
Jombo frame
9K
Power
Input: 100-240V AC 50/60Hz
Output: 9V 0.6A (External power adapter)
Power consumption
Max:<4W
Mounting
Desktop mounting: support
Wall mounting: support
Rack mounting:non-support
Environment
Operating temperature: 0C - 45
Storage temperature: -40C - 70C
Operating humidity: (10% - 90%) RH, non-condensing
Storage humidity: (5% - 90%) RH, non-condensing
Certification
CE, FCC, RoHS
Software
Protocols
CDMA/CD
MAC address learning
Auto-Learning and Auto-Aging
Funtions
plug-and-play
