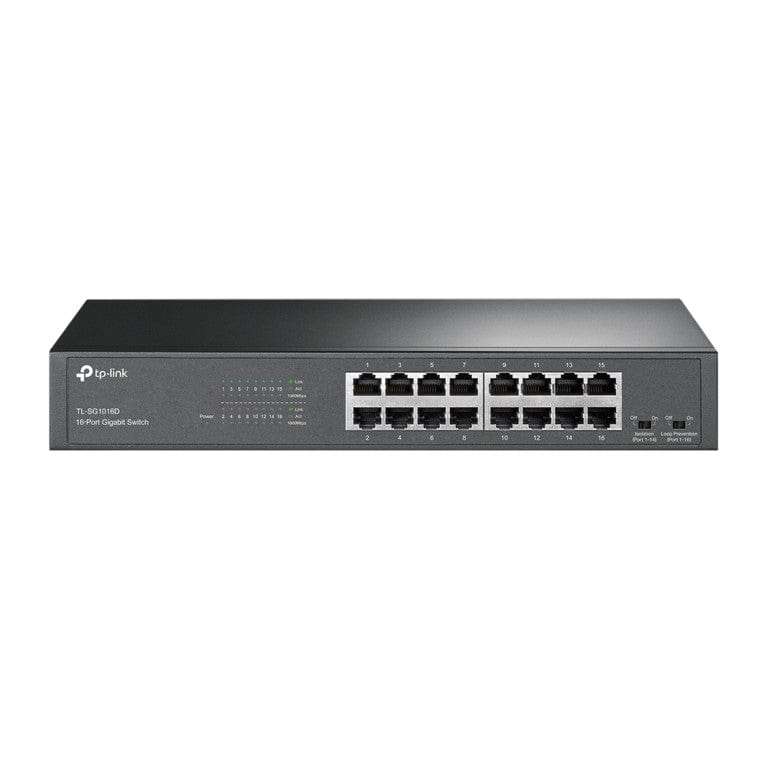

TP-Link TL-SG1016D 16-port GbE Unmanaged Network Switch
The TL-SG1016D Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016D can save power consumption, making it an eco-friendly solution for your business network.
Features
- 16x 10/100/1000Mbps ports
- Innovative energy-efficient technology saves power consumption
- Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation
- Isolation Mode: Ports 1-14
- Loop Prevention: Ports 1-16
- Plug & play design
TP-LINK Green Technology
This new generation TL-SG1016D Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, most packaging material can be recycled.
High Performance
All 16 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1016D forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make The TL-SG1016D work reliably. It's a perfect choice to update your network to Gigabit while protecting your previous investment properly.
Easy to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
Traffic Separation
Isolation Mode easily divides traffic for specific ports with one click to avoid snooping, tampering and isolation broadcast storm for higher security.
Loop Prevention
Monitor and address loop-related issues within your network structure to prevent disruptions caused by looping.
Technical Specification
Product: TP-Link TL-SG1016D 16-port Gigabit Ethernet Unmanaged Network Switch
Switch type: Unmanaged
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000) (Auto Negotiation/Auto MDI/MDIX)
Basic switching RJ-45 Ethernet ports quantity: 16
Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity: Fanless
MAC address table: 8000 entries
Switching capacity: 32 Gbit/s
Packet Forwarding Rate: 23.8Mpps
Networking standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
Package Contents
- 16-Port Gigabit Desktop/Rackmount Switch
- Power Cord
- Installation Guide
- Rackmount Kits
- Rubber Feet
