Trendnet N450 Wireless Gigabit Router TEW-691GR is a high-performance wireless router designed for demanding home or small office environments. Supporting wireless speeds of up to 450Mbps on the 2.4GHz band, this router is ideal for bandwidth-intensive applications such as HD video streaming, online gaming, and large file transfers. With Gigabit LAN and WAN ports, the TEW-691GR ensures fast, reliable wired connections for devices that require stable throughput.
This brand-new unit features three 4dBi fixed antennas for extended range and coverage, advanced wireless security protocols, and multiple SSID support for segregated networks. It includes WPS for easy device pairing and supports WDS for wireless bridgingmaking it a cost-effective solution for robust network expansion. No SIM card support is provided, as this is a traditional Wi-Fi router using wired broadband.
Key Features & Benefits:
Up to 450Mbps Wireless N Speed Delivers fast wireless performance ideal for streaming, gaming, and browsing.

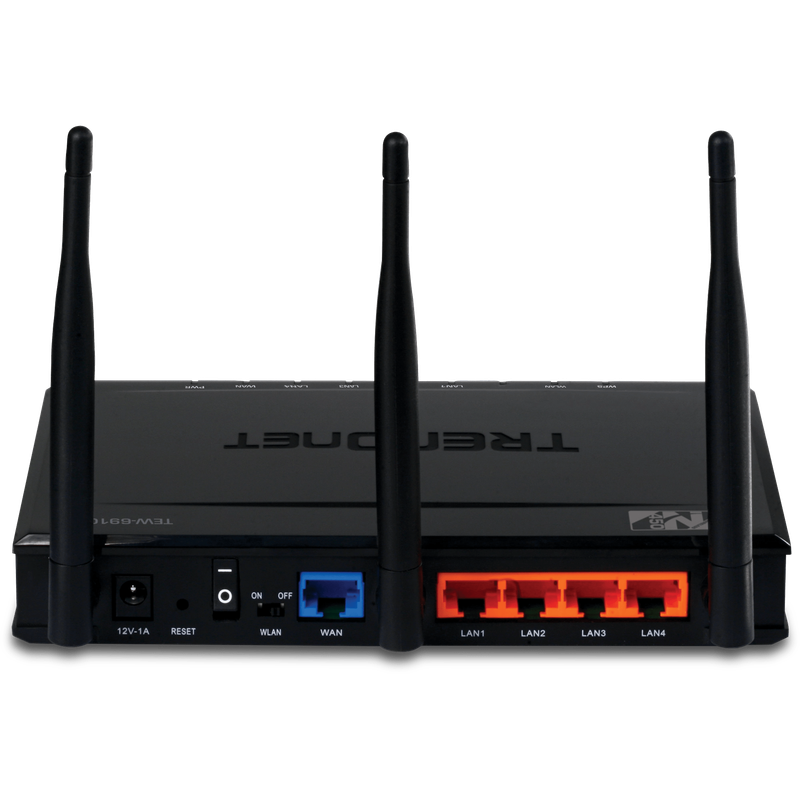

Gigabit LAN/WAN Ports Four Gigabit LAN and one Gigabit WAN port for high-speed wired connectivity.

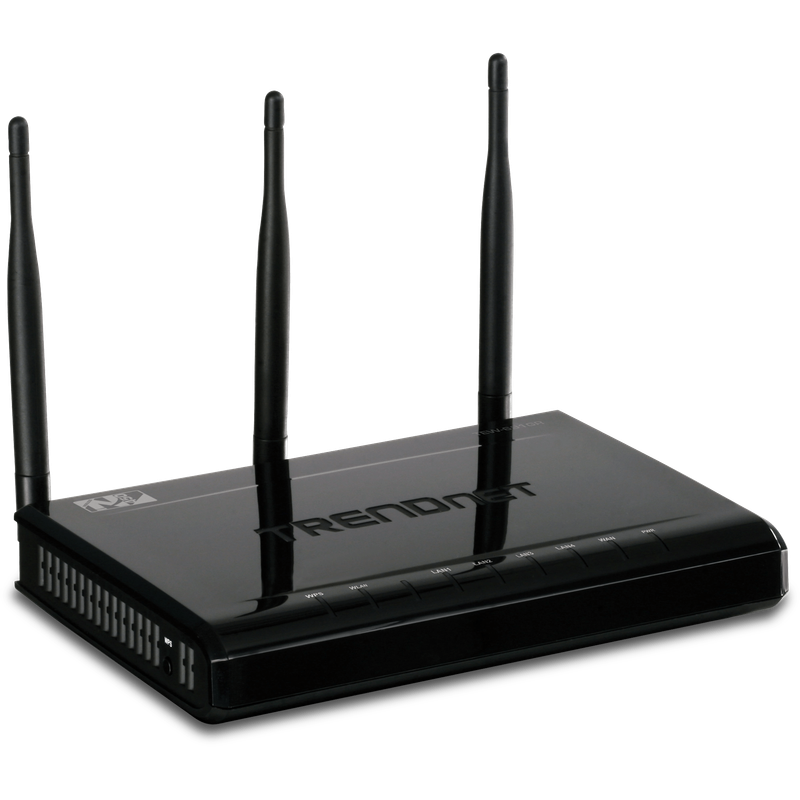

3 x 4dBi Fixed Antennas Extended wireless range with improved signal stability and coverage.
Advanced Wireless Security Supports WPA/WPA2-PSK, WPA/WPA2-RADIUS, and MAC filtering for safe connections.
Multiple SSID Support Create isolated guest or department networks within one device.
WPS & WDS Features Easily pair devices or bridge networks with push-button simplicity.
Compact & Lightweight Space-saving design with LED indicators for power, WLAN, LAN, and WPS status.
Ideal Uses:
Home Networks Stream HD video and connect multiple devices with smooth Wi-Fi coverage.
Small Offices & Startups Reliable, secure, and affordable router solution for growing teams.
Educational & Training Labs Simple deployment for multiple access profiles and guest users.
Gaming & Media Streaming Stable and fast wireless performance for uninterrupted sessions.
Specifications
Condition:
Device with no signs of previous use. Device has been extensively tested and is 100% Functional.
Manufacturer & Model:
Trendnet TEW-691GR
Form Factor:
Wireless Router (No SIM Support)
Wired Standards:
IEEE 802.3 (10Base-T), 802.3u (100Base-TX), 802.3ab (1000Base-T)
4 x Gigabit LAN Ports (Auto-MDIX)
1 x Gigabit WAN Port (Auto-MDIX)
Wireless Specifications:
IEEE 802.11b/g/n (2.4GHz only)
Wireless N: Up to 450Mbps
Wireless G: Up to 54Mbps
Wireless B: Up to 11Mbps
Frequency: 2.412 ~ 2.472GHz
3 x Fixed 4dBi Dipole Antennas
Modulation: OFDM, BPSK, QPSK, 16-QAM, 64-QAM
Security: 64/128-bit WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS
MAC Address Filtering: Up to 24 Entries
Multiple SSID Support
WDS & WPS Functionality
Performance:
Output Power:
802.11b 11dBm (typical)
802.11g 15dBm (typical)
802.11n 15dBm (typical)
Receive Sensitivity:
802.11b -84dBm
802.11g -72dBm
802.11n -69dBm
Channel Support:
FCC: Channels 111
ETSI: Channels 113
Power & Physical Specs:
Power Supply: 12V DC, 1A Adapter
Power Consumption: 450mA (max)
Dimensions: 148 x 180 x 32mm
Weight: 289g
Operating Temp: 0°C ~ 40°C
Storage Temp: -20°C ~ 60°C
Max Humidity: 90% (non-condensing)
Certifications: CE, FCC
Operating System:
Not Applicable (Router)
Warranty & Inclusions
Warranty: 12-Month Carry-In Warranty
What's in the Box?
Trendnet TEW-691GR Router
Power Adapter (12V, 1A)
Cat. 5 Ethernet Cable (1m)
Quick Installation Guide
CD-ROM with User Manual
High-Speed Wireless Fast N450 performance ideal for multi-device households and small businesses.
Gigabit Ethernet High-speed wired ports for latency-sensitive devices.
Secure & Scalable Multiple SSID and robust encryption standards for safe, segmented networks.
Easy to Install WPS button, LED indicators, and intuitive setup process.
