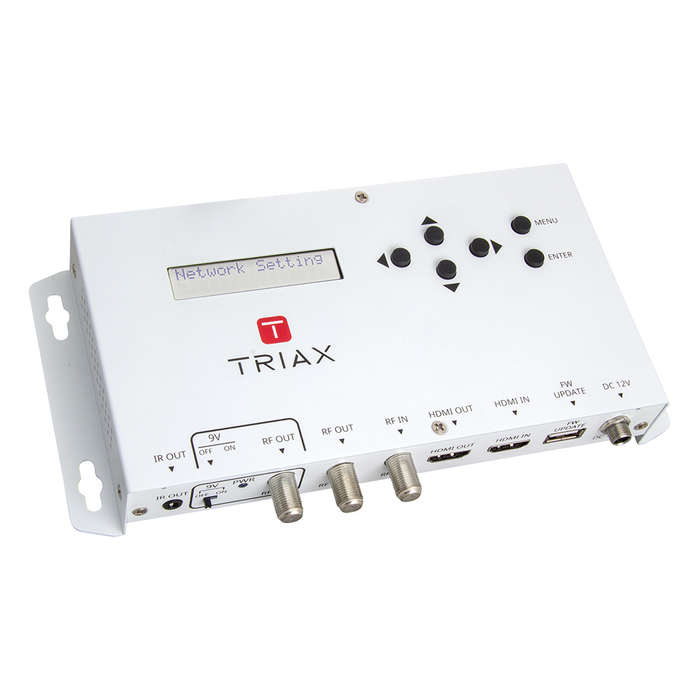

Triax HDMI to DVB-T Modulator

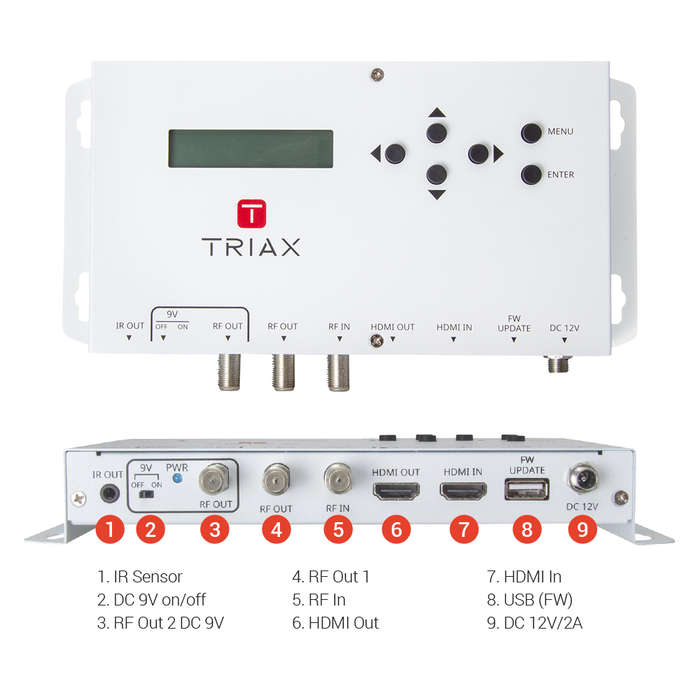

The MOD-HDMI-TRIAX has a HDMI input with local loop through and a DVB-T output(which is combined with the RF input). The HDMI input content can be suppliedfrom one of a number of sources including Satellite Set Top Box, Blu-ray playerand CCTV. The input signal is modulated as a DVB-T output and can be distributedto a number of TV's over an existing private coaxial network.FEATURES: All inputs and outputs on one side for ease of installation HDMI loop through for connection to the local TV Combine existing RF with the modulated output channel on RF Out 1 and RF Out 2 Adjustable level control to balance the DVB-T channel with the incoming RFchannels (1dB steps) Source Set Top Box etc. can be controlled from another TV location using an IRemitter and a Triax TV Link (TVLINKTRIAX) The local coaxial network must be connected to the RF Out 2 (with the 9VDCable to pass through the network) to remotely power the SLX and Triax TV Link Set up via the front panel and LCD screen
