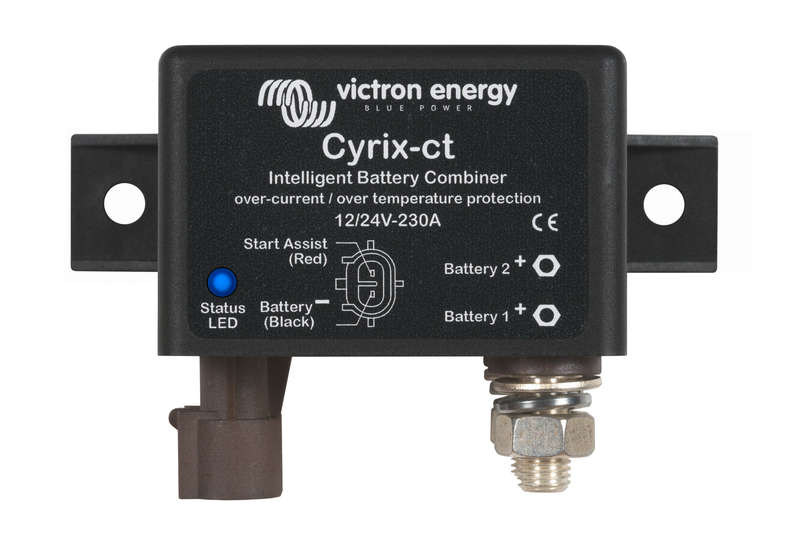

Victron Cyrix-ct 12/24V-230A intelligent battery combiner

Intelligent battery monitoring to prevent unwanted switchingSome battery combiners (also called voltage controlled relay, or split chargerelay) will disconnect a battery in case of a short but high amperage load. Abattery combiner also may fail to connect a large but discharged battery bankbecause the DC voltage immediately drops below the disengage value once thebatteries are connected.The software of the Cyrix-ct 12/24 does more than simply connect and disconnectbased on battery voltage and with a fixed time delay. The Cyrix-ct 12/24 looksat the general trend (voltage increasing or decreasing) and reverses a previousaction only if the trend has reversed during a certain period of time. The timedelay depends on the voltage deviation from the trend. (for Battery Combinerswith multiple engage/disengage profiles, please see the Cyrix-i 400)Long bolts to allow connection of more than one power cableCyrix 12/24-120: 13 mm (M6)Cyrix 12/24-230: 16 mm (M8)Protection against overheating (due to a long duration overload e.g.)The Cyrix will disengage in case of excessive contact temperature, and reengageagain after it has cooled downLED status indication (Cyrix 12/24 230 only)LED on: engagedLED 10 s flash: disengagedLED 2 s flash: connectingLED 2 s blink: disconnectingLED 0,25 s blink: alarm (over-temperature; voltage > 16 V; both batteries
