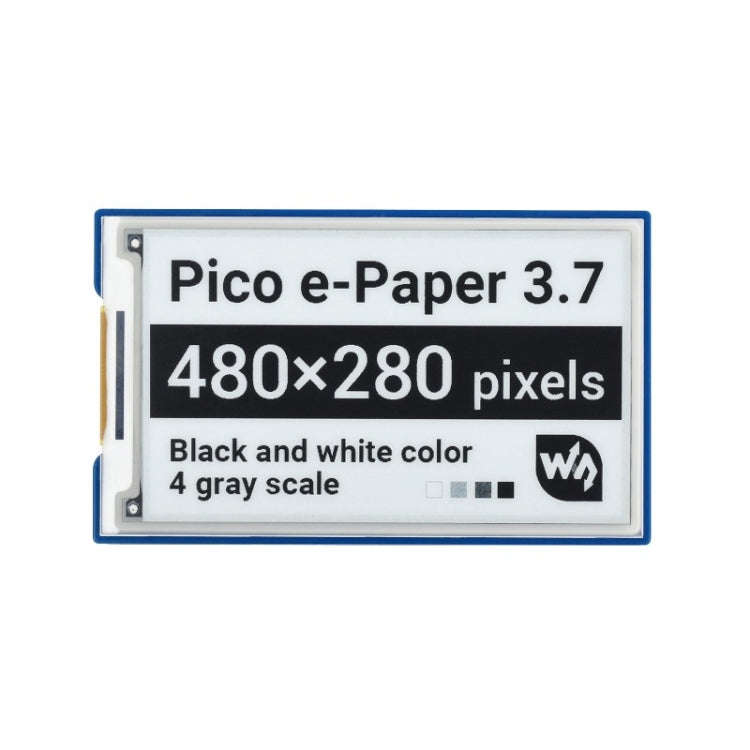

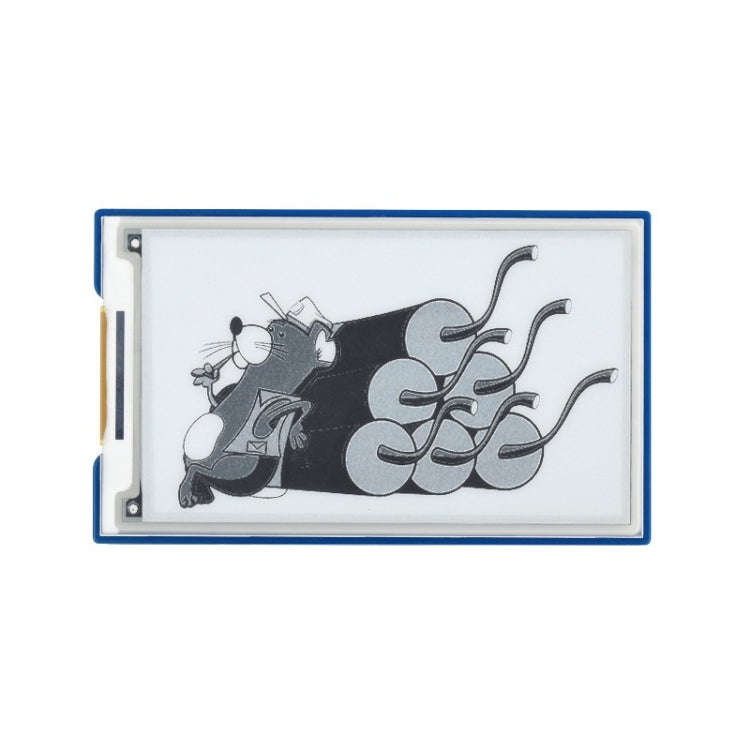

Waveshare 3.7 inch 480x280 Pixel E-Paper E-Ink Display Module for Raspberry Pi Pico, 4 Grayscale,... Waveshare 3.7 inch 480x280 Pixel E-Paper E-Ink Display Module for Raspberry Pi Pico, 4 Grayscale,... Waveshare 3.7 inch 480x280 Pixel E-Paper E-Ink Display Module for Raspberry Pi Pico, 4 Grayscale,... Waveshare 3.7 inch 480x280 Pixel E-Paper E-Ink Display Module for Raspberry Pi Pico, 4 Grayscale,... Waveshare 3.7 inch 480x280 Pixel E-Paper E-Ink Display Module for Raspberry Pi Pico, 4 Grayscale,...
Waveshare 3.7 inch 480x280 Pixel E-Paper E-Ink Display Module for Raspberry Pi Pico, 4 Grayscale,... Waveshare 3.7 inch 480x280 Pixel E-Paper E-Ink Display Module for Raspberry Pi Pico, 4 Grayscale,... Waveshare 3.7 inch 480x280 Pixel E-Paper E-Ink Display Module for Raspberry Pi Pico, 4 Grayscale,... Waveshare 3.7 inch 480x280 Pixel E-Paper E-Ink Display Module for Raspberry Pi Pico, 4 Grayscale,... Waveshare 3.7 inch 480x280 Pixel E-Paper E-Ink Display Module for Raspberry Pi Pico, 4 Grayscale,...

Waveshare 3.7 inch 480x280 Pixel E-Paper E-Ink Display Module for Raspberry Pi Pico, 4 Grayscale,...

10 available / new
R822.88
Want to pay less?
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
International
Product code
DIY0166
Bob Shop ID
636104997
Features
1. No backlight, keeps displaying last content for a long time even when power down
2. Ultra low power consumption, basically power is only required for refreshing

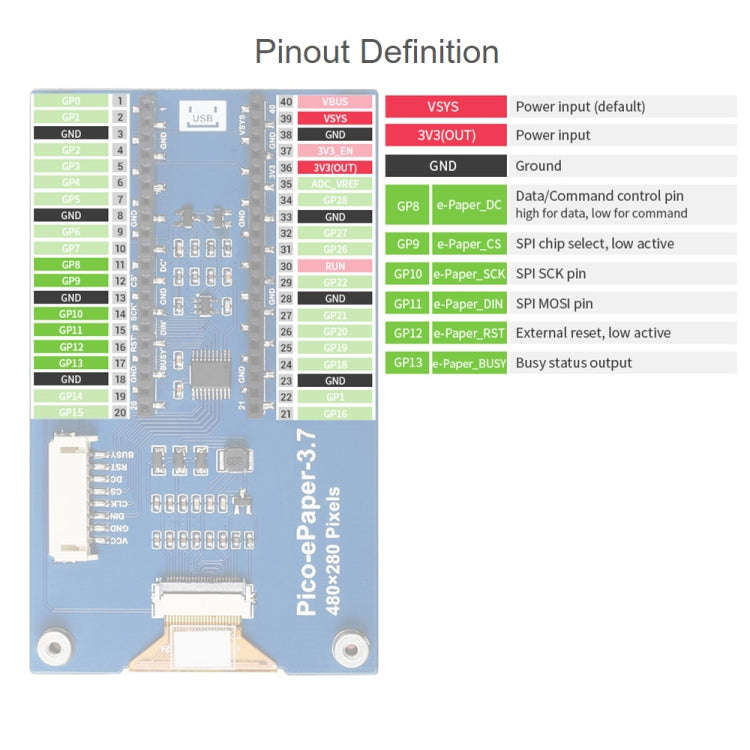

3. SPI interface, requires minimal IO pins

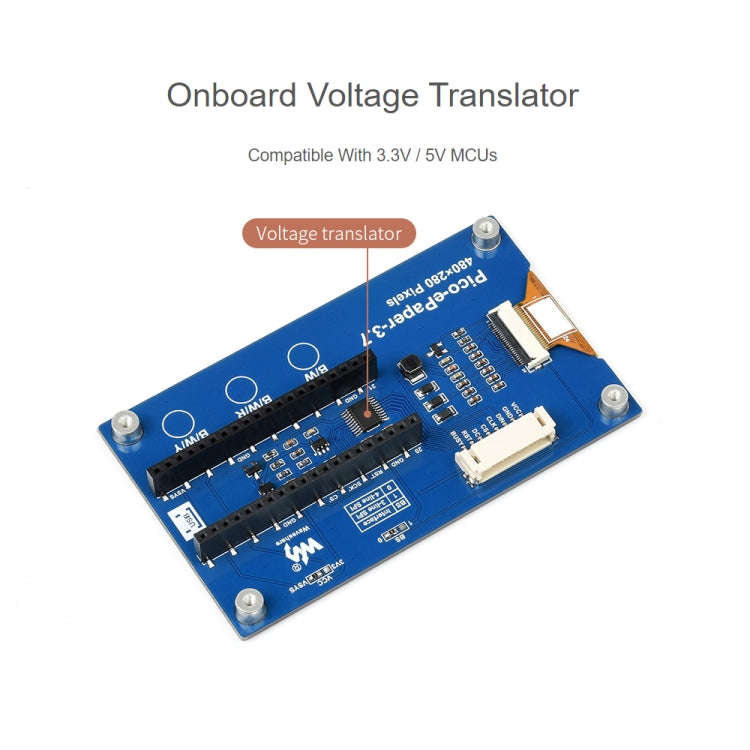

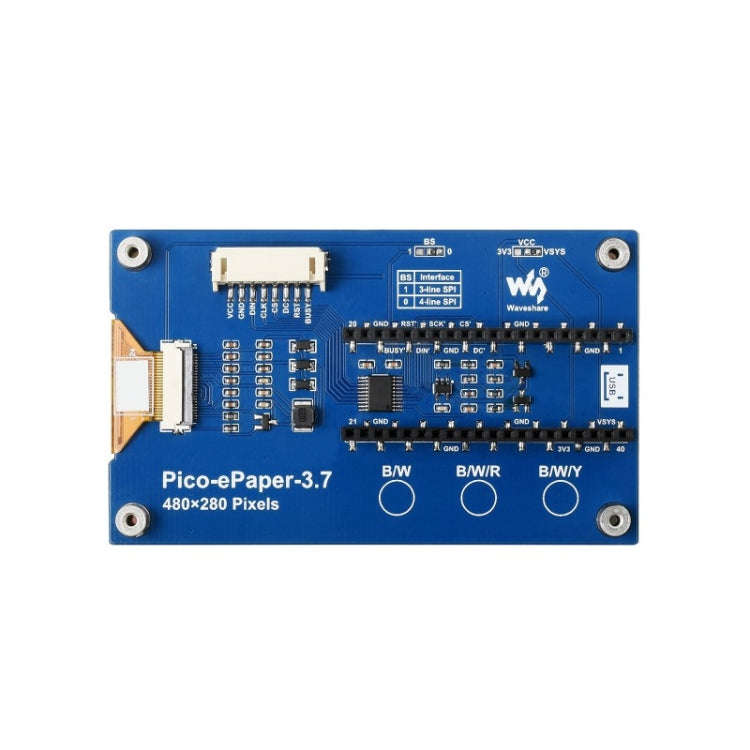

4. Onboard voltage translator, compatible with 3.3V / 5V MCUs

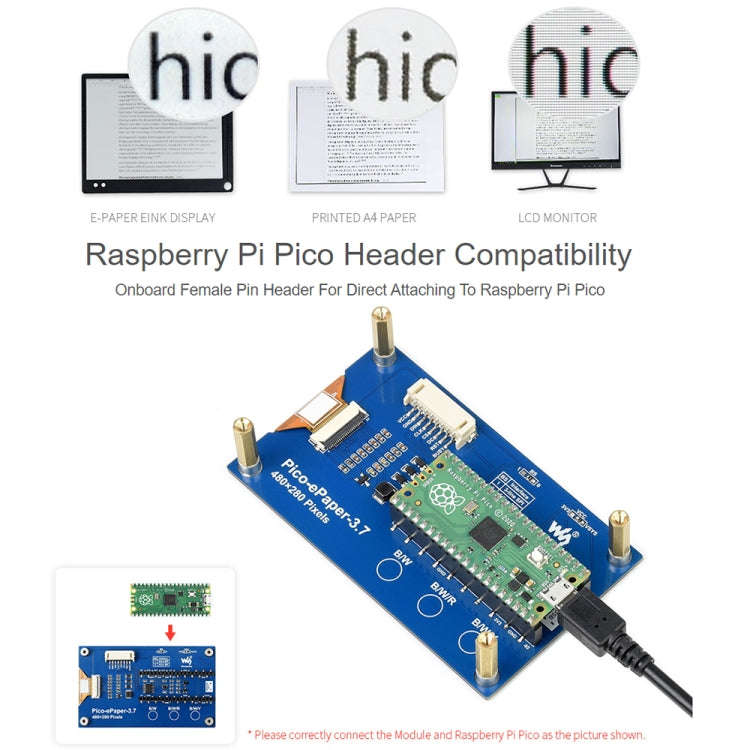

5. Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

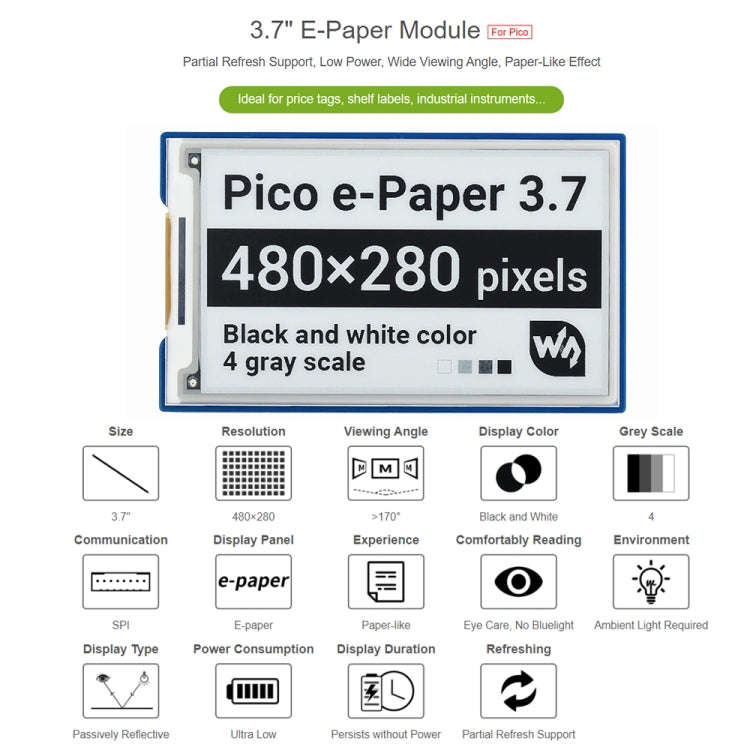

Specification
1. Operating voltage: 3.3V/5V
2. Display color: Black, white
3. Resolution: 480x280 pixels
4. Grey scale: 4
5. Interface: 3-wire SPI, 4-wire SPI
6. Viewing angle: Greater than 170 degree
7. Partial refresh time: 0.3s
8. Full refresh time: 3s

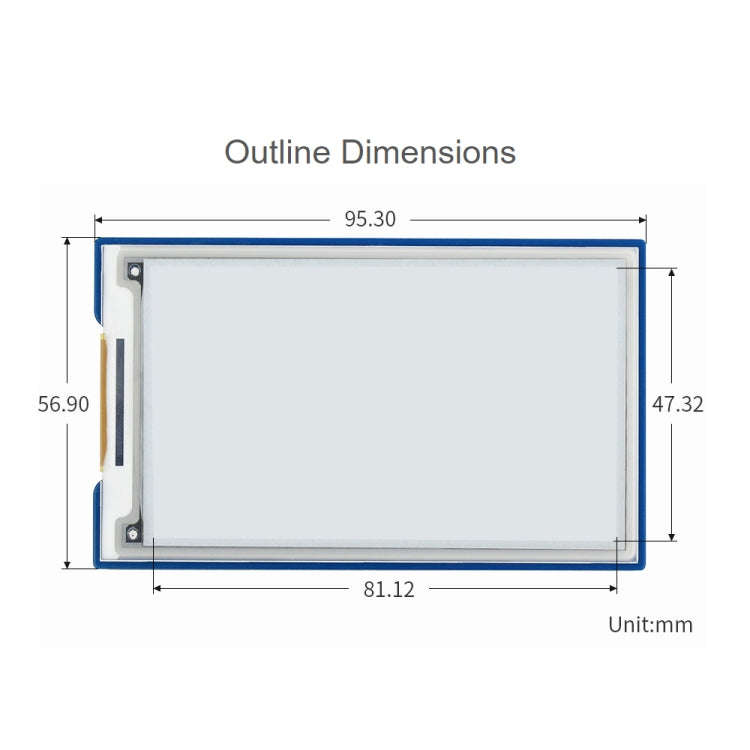

9. Outline dimensions: 95.3 x 56.9mm
10. Display size: 81.12 x 47.32mm
11. Refresh power: 26.4mW (typ.)
12. Standby current: Less than 0.01uA (almost none)
13. Dot pitch: 0.169 x 0.169 mm

Package List
1. Pico-ePaper-3.7 x 1
2. Standoff pack x 1
