Yealink MVC S90-C5-004 MS Teams Rooms Video Conference System for ProAV Room 1106999
Microsoft Teams Rooms System for Extra-Large and Training Rooms
Yealink MVC S90 is specially designed for extra-large conference rooms. This set includes new generation highperformance MINI-PC MCore Pro, touch panel MTouch Plus, intelligent 4K PTZ camera UVC86, and AVHub specially designed for audio and video processing. AVHub can adjust the screen layout and realize Yealink's exclusive multicamera solution, which can support up to 9 cameras connected at the same time, and realize multi-speaker tracking with voice incentive mechanism functions, adapt to the audio and video conferencing needs of various large and super large meeting rooms, classrooms, and training rooms. The MVC S90 set comes standard with two UVC86 cameras, which can support 12x optical zoom-in and intelligent follow-up shooting. On the MTouch Plus control panel, through Yealink RoomConnect, the cameras can be controlled independently and switch layouts. You can combine the MVC S90 with the MVC-BYOD-Extender, you only need to plug the USB cable into the PC to freely use the audio and video equipment of the entire system, and you can convert the Microsoft Teams meeting room into a multi-functional meeting room. In addition, multiple sets of MVC S90 series products can be combined through a network cable to build a conference room system that can be flexibly merged and divided.
Key Features and Benefits
Multi-cam solution, Flexible layout
Relying on the audio and video processor AVHub, Yealink realizes the multi-camera solution that supports up to 9 Yealink cameras. Users can control them independently through MTouch Plus or splice the output video of multiple cameras and adjust the output video layout as desired. Multiple sets of MVC S90 series can be combined through network cables to build a conference room system that can be flexibly merged and divided.
Big and flexible conference control experience
Yealink third-generation touch panel MTouch Plus, with an 11.6-inch narrow-frame touch area, is the iconic product of Yealink third-generation. Yealink third-generation touch panel innovatively supports multiple panels to control conferences at the same time*. You can freely choose the deployment position of each panel according to the deployment needs of the conference room and fully control the conference process.
Flexible audio, Flexible connectivity
Users can choose to use wired (VCM35, VCM38 Ceiling microphone) or wireless (CPW65) microphones for miking. Users can adapt to various conference room deployment scenarios, such as desktop placement and ceiling placement. Yealink's unique sound processing algorithm can dynamically eliminate reverberation and noise according to the ambient sound in real-time, effectively eliminate background interference and noise, and allow you to enjoy crystal-clear voice at any time. By cooperating with third-party manufacturers* such as Biamp, Nureva, Shure and YAMAHA, S90 can support their devices to access the conference system.
Manage your devices remotely
This solution supports Yealink Device Management Platform/Cloud Service, you can flawlessly manage, monitor, configure, update and diagnose all Yealink audio and video device peripherals on this platform remotely.
Technical Specification
Product: Yealink MVC S40-C5-000
Product type: Group video conferencing system
Meeting Room Type: ProAV Room

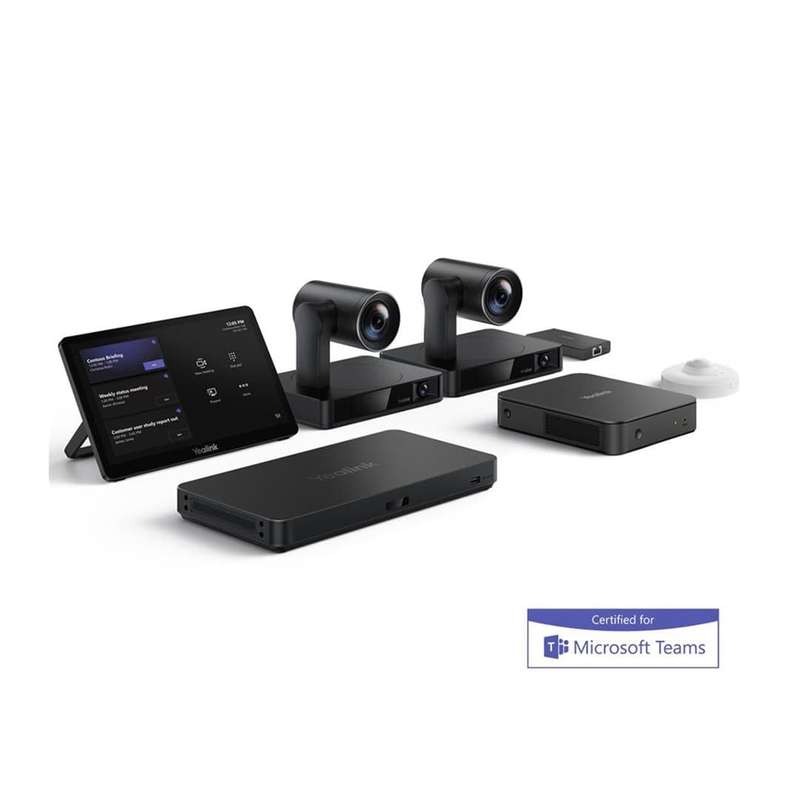

Package Content
- MCore Pro i5, Gen-3 Mini-PC
- MTouch Plus, Gen-3 touch panel
- AVHub, audio and video processor
- 2x UVC86 USB PTZ camera
- RoomSensor, meeting room sensor
- MVC-BYOD-Extender
- Please note: No Audio Devices

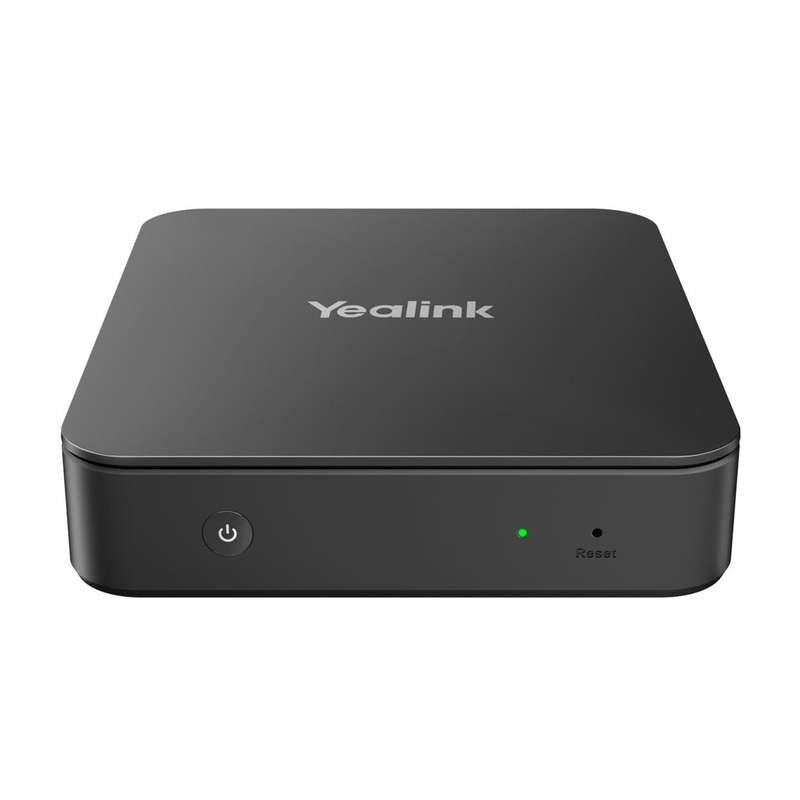

MCore Pro, Gen-3 Mini-PC
- 11th Gen Intel® Core i5
- Memory: 8 GB (2 x 4GB)
- Storage: 128 GB SSD
- 3x HDMI video output with CEC supported
- TPM2.0
- Kernel DMA
- EDID
- Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax
- Bluetooth: BT 5.2
- 1x Yealink MTouch port (RJ45), connect to MTouch Plus / MTouch E2
- 4x USB 3.0 Type-A
- 1x 10/100/1000M Ethernet port
- 1x Power port
- 1x Security lock slot, Integrated cable management
Preload
- Windows 11 IoT Enterprise X64
- Windows 11 IoT Enterprise Lisence
- Microsoft Teams Rooms App, support Skype for Business on-premise/online and Teams meetings
- Yeallink RoomConnect

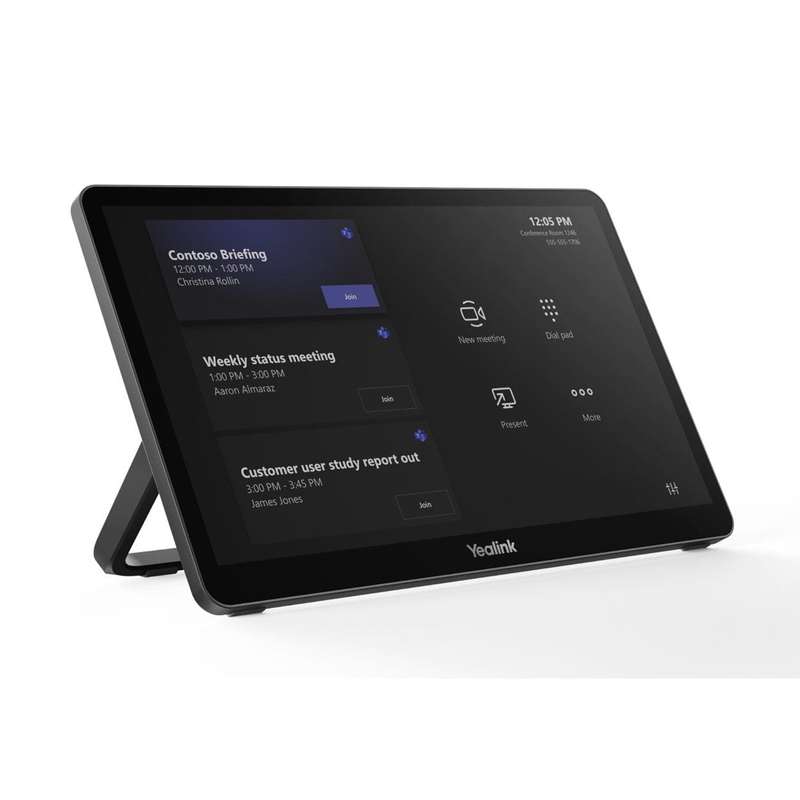

MTouch Plus
- 11.6-inch narrow bezel IPS display
- 1920 x 1080 video resolution
- Angle between screen and desktop (30° ~ 70°)
- Adjustable angle of support frame (50° ~ 180°)
- Support multi-screen control*
- Support third-party screen sharing*
- Support external PD power supply to power the sharing device
- Support HDMI/USB-C video input
- Support desktop placement, desktop fixed, wall-mounted deployment
RoomSensor
- Detection angle: 120°
- Adjustable detection angle: ±20°
- Operating temperature: 0-40°C
- Operating humidity: 10-95%
- Power: Battery powered, 4 year life
AVHub, audio and video processor
- 2x USB-A port
- 1x USB-B port
- 1x Codec port
- 7x Yealink VCH port(RJ-45)
- 1x RCA in/out interface
- 1x 6.3mm Line in interface
- 1x 6.3mm Line out interface
- 1x power interface
- Dividable and merging meeting rooms are supported
- Support intelligent multi-speaker tracking
UVC86 USB PTZ Camera
- 4K at 30 fps
- Dual 8 MP
- 20.4x HD zoom (12x optical, 1.7x digital)
- Angle of view: -90° DFOV, 81° HFOV, 50° VFOV ( Telephoto lens)
- Angle of view: -120° DFOV, 110° HFOV, 78° VFOV (Panoramic lens)
- Auto-framing
- Speaker tracking
- Presenter tracking, support area trigger and gesture control
- Multi-focus
- Picture-in-picture
- Up to 9 preset positions can be set
- Horizontal rotation: 200°
- Vertical rotation: 130°
- 1x HDMI output
- 1x Yealink microphone port(RJ-45)
- 1x USB 3.0 Type-B port
- 1x USB 2.0 Type-A Port
- 1x Power Port
- 1x Security Lock
- 1x Reset Hole
