ncreased Productivity, Lower Tco

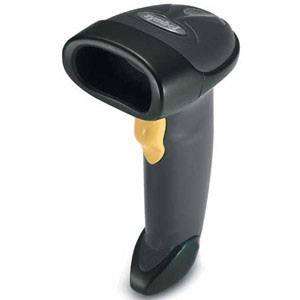

- The Symbol LS2208 handheld scanner offers high performance scanning at a moderate price point. From the retail point-of-sale to school book checkout, the Symbol LS2208 provides fast, reliable scanning in a durable, lightweight form factor, delivering enhanced productivity and efficiency while reducing your total cost of ownership (TCO).
High Performance Scanning - Fast
- With aggressive scanning capabilities and a wide working range, the Symbol LS2208 accurately captures data fast, helping employees work quickly and efficiently. And you'll be up and running fast, because the Symbol LS2208 is easy to deploy and use, thanks to its plug-and-play installation and intuitive, user-friendly design, which requires little or no training. Plus the ergonomic, balanced form factor reduces user fatigue to maximize user comfort.
Durable, Future-Proof Construction
- The Symbol LS2208 is engineered for continuous, heavy usage all day, every day and has been tested to withstand multiple 5 ft./1.5m drops to concrete. The patented single board construction eliminates a common point of failure - the interconnection between multiple boards - and the patented frictionless liquid polymer scan element delivers integral shock protection to further ensure reliable operation. Scratch-resistant tempered glass helps preserve bar code scanning accuracy. Integrated multiple interfaces, universal cable compatibility and support for emerging symbologies provide the investment protection you need to help ensure that the scanner you buy today will work with the system you use tomorrow.
Proven Quality You Can Trust
- When you choose the Symbol LS2208, you receive the added assurance of purchasing a product from Motorola - the global leader in handheld bar code scanning with millions of scanners in use every day by the world's largest retailers worldwide. And since even the most reliable scanners require a support plan, Motorola's Service from the Start Advance Exchange Support provides next-business-day delivery of a replacement device for true service peace of mind. This offering also includes Motorola's unique Comprehensive Coverage, which extends normal wear and tear to cover accidental damage to exit windows, scan elements, housings and more at no extra charge.
Specifications:
- Dimensions: 15.2 cm H x 6.3 cm W x 8.4 cm
- Weight: 5.29 oz/150 gm
- Voltage and Current: 5 volts +/- 10 percent at 130 mA typical, 175 mA max
- Power Source: Host power or external power supply
- Colour: Twilight Black
Performance Characteristics:
- Scanner Type: Bi-directional
- Light Source: 650 nm visible laser diode
- Scan Element Frequency: 50Hz
- Scan Rate: 100 scans per second typical
- Print Contrast: 20 percent minimum reflective difference
- Roll (Tilt): 1 1 +/- 30 degrees
- Pitch: 2 2 +/- 65 degrees
- Skew (Yaw): 3 3 +/- 60 degrees
Decode Capability: UPC/EAN, UPC/EAN with Supplementals, UPC/ EAN 128, Code 39, Code 39 Full ASCII, Code 39 TriOptic, Code 128, Code 128 Full ASCII, Coda bar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, IATA, GS1 Data Bar (formerly RSS) variants, Chinese 2 of 5
Interfaces Supported: USB, RS232, Keyboard Wedge, IBM 468x/9x
What's in the box

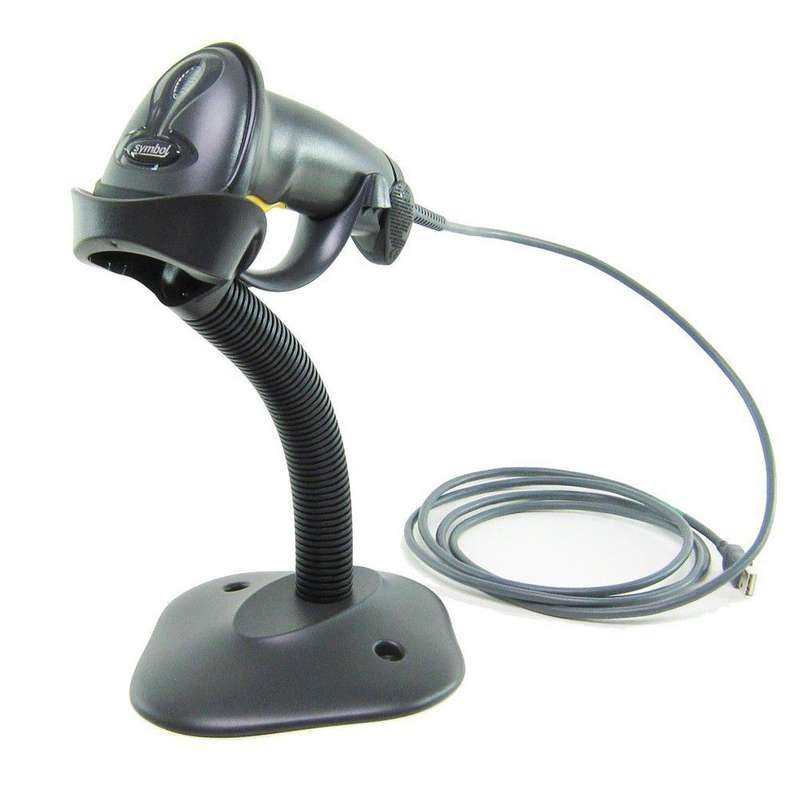

Zebra LS2208 Laser Handheld Barcode Scanner with Intellistand
